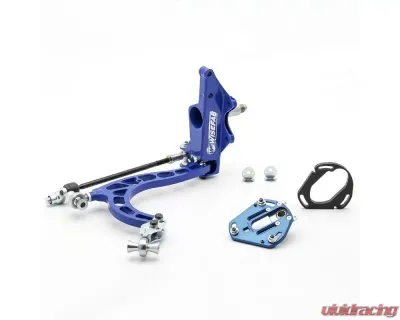

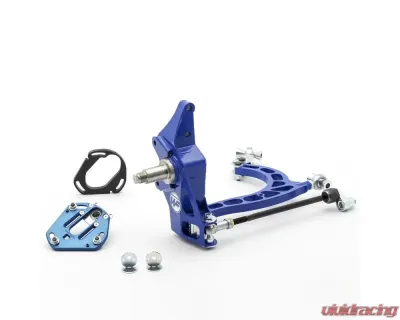

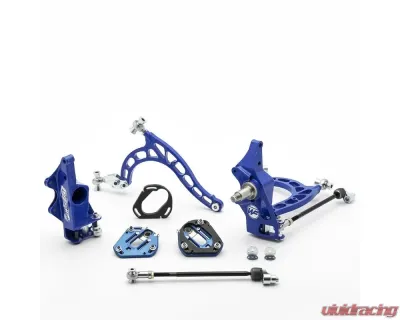

Wisefab Lock Kit with Rack Offset Spacers Nissan S14 V2 1995-1998
$2250.00
Wisefab Nissan S14 angle kit with rack offset spacers has two major upgrades. The knuckle has been designed to allow more suspension travel with the trending long stroke coilovers. Lower control arm has been redesigned for more convenient alignment setup. The result was more grip at the front and more precise steering. This will give you the competitive edge. All the parts in the Nissan S14 angle kit are provided as spare parts.

S13 kit is for the 4 lug spindle, if you have 5 lug on your S13 please select the Nissan S13 Angle kit with rack offset spacers

Camber: -4 +/-0,5
Caster: 3,5 +/-0,5

Product Details:
  • More usable lock.
  • 65+ degrees of lock, better feel and precise handling. You could tune your steering geometry either towards positive or negative Ackermann in just a few minutes even at trackside without messing up an alignment.
  • Ackermann adjustment kit included.
  • Less sensitive steering.
  • Increased steering ratio for smooth handling.
  • More suspension travel.
  • Less interference risk at full droop. Longstroke coilover kits can be used.
  • Lighter and stronger.
  • Optimized design in combination with high strenght steel is used.
  • Higher roll center (RC).

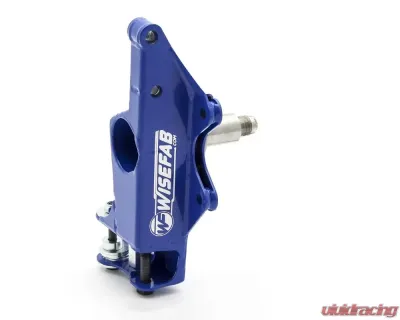

  • On Wisefab knuckle, the ball joint is lowered 60mm, which brings the front RC up on lowered car, providing higher roll stiffness and letting to remove the front anti roll bar (sway bar) that is quite difficult to package with that high lock angles.
  • Adjustable camber and caster with adjustable doubleplates.
  • Adjustable lock stopper.

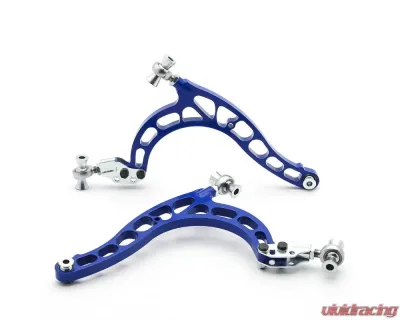

  • One piece lower control arm desing.
  • Lower links are replaced with one arm. Drifting with higher steering angle the stiffness and packaging would become an issue. Therefore lower one piece arm is used.
  • Very good camber control and minimal bump steer with high steering angles.
  • On drift cars the dynamic camber and bump steer is much more important than static. With our kinematics we have assured that the camber would provide very good front grip and bump steer is minimal at all the range of steering.
    • Steering jacking control.
    • During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. We have changed the geometry that it doesn’t cause any handling issues.
    • Consistent and predictable self-alignment torque.
    • Caster is not the only important parameter to provide sufficient self-alignment torque especially at high lock. It’s the combination of different parameters to maintain consistent trail and self-alignment torque. With our setup the steering wheel turns always to the direction of movement and doesn’t get stuck at full lock.
Kit Details:
  • Adjustable coilover upper mounts, Formula Drift compliance.
  • Knuckles with hardware.
  • Lower control arms.

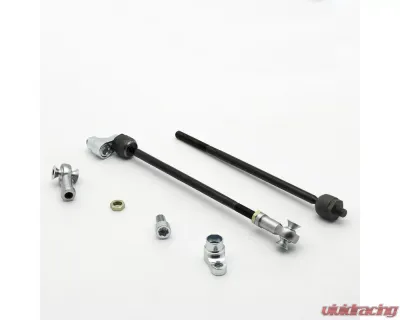

  • Assembeled tie rods.
  • Rack offset kit.
  • Rack installation guide.
  • Installation guide.


Fitment:
  • Nissan S14 V2 1995-1998
Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
1995-1998
Nissan 240SX S14
About Wisefab

Wisefab is a company, that manufactures racing suspension kits for track and drift cars. Everything is engineered and made in-house in the EU. You should also know that all of Wisefab products are designed with racing in mind and they make championship-winning suspension parts. For over 7 years they have been giving drift car drivers across the globe advantages over their opponents. When it comes to drifting, Wisefab has produced angle kits for over 7 years. Giving drift car drivers advantages over their opponents by providing them with factory team-level suspension solutions for a reasonable price. Wisefab has all the main chassis covered such as Nissan S13/S14/S15, Nissan 350/370Z, BMW E46/E92/E82, Toyota Supra/GT86. Providing lock all over the world

When it comes to tracking, Wisefab designs high-performance suspension parts for your Time Attack, Hill climbing, or Autocross car. Their products offer better kinematics for lowered cars, improved handling and grip with minimal bump steer. Also, they offer a faster steering ratio and higher roll center. Wisefab suspension kits are fully adjustable and designed purely for racing with added lightness and a wide adjustment range

For rallying, Wisefabs makes strong and reliable rally suspension parts by Wisefab. Their products offer long-stroke suspension travel with better kinematics which improves handling and grip. Wisefab suspension kits are fully adjustable, easy to adjust, and are rugged designs that take the abuse of rally driving

What Makes Wisefab Products Special?

Wisefab has long been known for providing the craziest steering angle on the planet. Most Wisefab kits provide around 65 degrees of steering angle and offer simple ackermann adjustment as an option. This means you can choose between parallel steering or altering the angle between the leading and trailing wheels to suit you. Fitting a Wisefab kit to your car will translate into it having much better handling, improved front grip, more precise steering, less tire scrub, and better feel during high speed drifting

You should also know that Wisefab rear suspension kits have had countless hours of R&D invested in them. The result is a totally re-engineered lightweight rear knuckle and suspension arm design. Roll center, camber gain, and toe gain are all fine-tuned to provide a significant increase in traction and lateral grip. Also, unsprung weight is vastly improved. All of these factors can provide a significant advantage in competition when in the right hands. The Wisefab rear kits have also been used with great success on the regular track and drag cars
