This product is for Racing Competition only and is not legal for use in highway or street vehicles or other non-racing competition off-road vehicles.
Purchasing this product requires you to sign our Vehicle Compliance Waiver here.

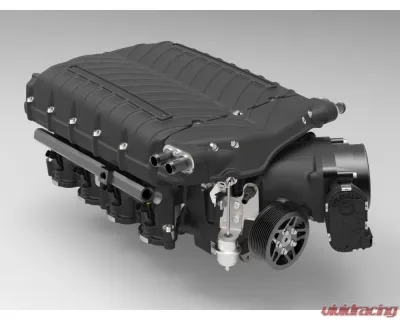

The new Whipple system features an all new patented dual core, dual pass intercooler design that has over twice the volume of the stock, undersized intercooler core. The dual core system features dual inlet, dual outlet to further increase cooling capacity vs the stock single inlet/outlet intercooler.
Each Whipple system comes with new motor mount brackets to fit under the stock hood, billet idler plate and idler pulleys, intercooler vent system, SC belt and all the necessary hardware for an easy installation.
Features:
- Largest intercooler system on the market, featuring patented dual core technology
- Billet 132mm high flow throttle pre-set with factory electronics
- No other upgrades required, just massive power right out of the box
- Front entry Gen 5 W235ax (3.8 liters/3800cc) Whipple twin-screw supercharger that significantly outperforms competitions 2.65L roots-type systems
- Gen 5 supercharger features new 3x4 rotor combination for increased RPM capacity, large diameter for increased airflow and small leak path, increased helix for optimal sealing
- 3.8L is 43% larger than 2.65L roots-type allowing lower power draw and lower discharge temps to flow the same amount of air (more power to the rear wheels)
- Oversized Crusher 150mm inlet for maximum airflow capacity and minimal rotor cavitation
- Inverted design allows for oversized intercooler core compared to other smaller intercooler cores giving Whipple lower air charge temps which allows more boost and timing to be run on pump gas
- Patented dual core, dual pass intercooler technology with massive dual 1" inlet port capacity
- Massive air-to-water aluminum bar-plate intercoolers (over 55% larger than some competition) offer more cooling than any other positive displacement system available, nothing comes close
- Whipple Superchargers massive oversized intercooled air-bypass system for industry leading reduction of burst knock and incredible fuel economy
- Exclusive 3x4 rotor combo for significant increase in airflow under the curve than less efficient 4x4 roots
- Extra plenum volume below intercooler core for far less pressure drop and better use of the increased surface area of the massive intercooler core
- More boost at the "hit" than any other twin-screw
- Fits under factory hood with no modifications
- No cutting or grinding on the engine block
- No cutting or grinding the K-brace
- No internal modifications required
- Kits come complete with all necessary parts and hardware for installation
- Plug and play wiring with male and female connections
- Proven 8-rib belt system with adjustable idler system
- OEM quick connect fittings for easy installation
- Easily upgradeable with bigger throttle body (132mm or 150mm Roval elliptical), dual electric Spal 11" high speed fans, optional supercharger pulleys
- Instant boost at the touch of the throttle
- 3 minute pulley changes
- Lightweight pocketed 6061 T6 billet aluminum SC pulley
- Ford Mustang Shelby GT500 2020+
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Make Vehicle | Model | Year |
---|---|---|
2020-2022 Ford Mustang |
Mustang | 2020-2022 |
Whipple Supercharger is a company that was founded in 1987 by Art Whipple and is located in Fresno, California. As a family-owned business, they constantly find ways to thrive with innovative products and commitment to staying ahead of the competition.
They are best known for creating the industry’s best forced induction system and pioneering the twin screw superchargers for the internal combustion engine. Their dedication to providing innovative products has enabled them to be at the forefront of the supercharging industry.
Created By A LegendThe company’s founder Art Whipple is known as an innovator and is an icon in the motorsport industry. Using his experience as a successful racer, chief, and team owner of successful top fuel funny cars and dragsters, they can create the best supercharger in the market. They have achieved multiple speed records and quarter-mile times using their products, making them the go-to brand of many racers and other top racing teams.
Most Trusted BrandWhipple Superchargers is considered one of the most respected and trusted aftermarket supercharger brands on the market. They are also the brand of choice of two of the best automotive manufacturers globally, Ford And GM.
As the only US-based manufacturer of the twin-supercharger, they ensure that they do not cut corners when manufacturing their products. There are tons of superchargers available in the market. They may look the same, but nothing compares to what Whipple can deliver.
Purchase Whipple Superchargers At Vivid RacingIf you are in the market for quality products that would give you the highest horsepower gain in your engine, then look no further as Whipple Supercharger is the brand for you. They also offer other products, which include intercoolers, cold air intakes, and a power kit.
To know more about Whipple Superchargers, visit Vivid Racing and check out their list of products that fit your specific requirement.FAQs on Whipple Supercharger
- How much HP does a Whipple Supercharger add?
The amount of horsepower gain would depend on your current setup such as the type of pulleys, fuel system, exhaust, and internal components that you use. But for a stock engine, adding a Whipple Superchargers can add up between 30% to 50% of the car’s original horsepower output.
- What is a Whipple Supercharger?
A Whipple Supercharger is one of the three types of superchargers available in the market. The twin-screw design was developed to fill the tremendous voids that the centrifugal, turbo and roots superchargers have. Though their function are all the same, its twin screw design allows it to be less susceptible to suffer from heat stroke. This helps improve its efficiency and reaction time.
- How to install a Whipple Supercharger?
Installing a Whipple Supercharger is pretty straightforward. It mounts on top of an engine intake system and most kits come with all the necessary hardware needed for the install.
- How does a Whipple Supercharger work?
The system is operated by a pulley, which is driven by the engine’s pulley drive system. The way Whipple Supercharger works is it uses twin screws to compress air and force it inside the engine. The more air you can put in, the more fuel you can add, which in turn create better and more powerful combustion.
- How much does a Whipple Supercharger cost?
This depending on the kit and vehicle application. Prices for these superchargers can range between $3000 to $12,000.
- Are Whipple Superchargers carb legal?
Yes. Whipple Superchargers advertises that they are the most powerful and emission-friendly supercharger available in the market.
- How long does a Whipple Supercharger last?
These superchargers can last long given that you do proper maintenance and use it based on what the manufacturer has suggested.
- How much does it cost to install a Whipple Supercharger?
If you are technically inclined in fixing cars, all you have to spend for is the cost of the kit because it is something you can do on your own. But if you will have a professional to do it for, be ready to shell out anywhere between $1500 to $7500.
- What is the biggest Whipple Supercharger?
The biggest Whipple Supercharger available is an 8.3 liter/rev with an output of 3250 CFM and a peak rev of 12,000 RPM.
- Where are Wwhipple Superchargers made?
All Whipple Superchargers are made in USA. The only component made outside of the country is its rotor. Whipple Superchargers is already on the works of trying to make everything in their inhouse facility in Fresno, California.
- Can you change the pulley on Whipple Superchargers?
Yes. It does not require any special tools, and all you need is a simple ratchet.
- Can you finance a Whipple Supercharger?
Most companies like Vivid Racing offer Performance Part Financing for your vehicle which includes Whipple Superchargers. You can do a fixed, monthly payment with an APR between 10-30%.
- Can you port a Whipple Supercharger?
Yes, but only to a certain extent and it should only be done by an expert or someone familiar with these types of work.
- Do Whipple Superchargers heat soak?
Yes, but not as much compared to the other types of superchargers. Whipple Superchargers are designed to be less susceptible to heat soaking but it does not entirely eliminate it.
- Do Whipple Superchargers whine?
Whipple Superchargers are quieter compared to other types of superchargers. This may be good to some, especially for cars used as a daily driver. But others are looking for that specific whining sound that superchargers are known for.
- Does Whipple Supercharger void warranty?
For a company to void your warranty, they need to prove that the modification done on the vehicle is the cause of the warranty claim - unless the warranty clause of your vehicle clearly states that adding an aftermarket component would void the warranty. For this, better check your vehicle’s manual for what is included in your warranty.
