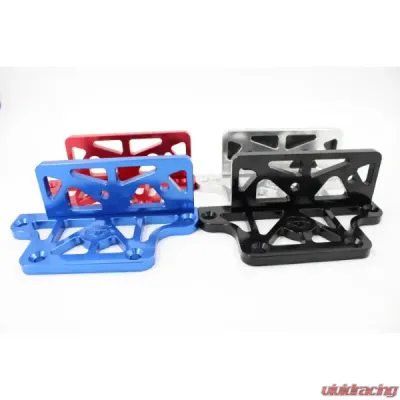

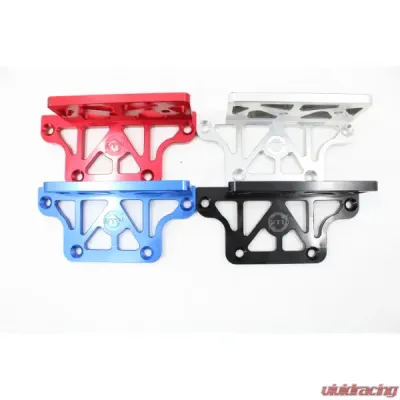

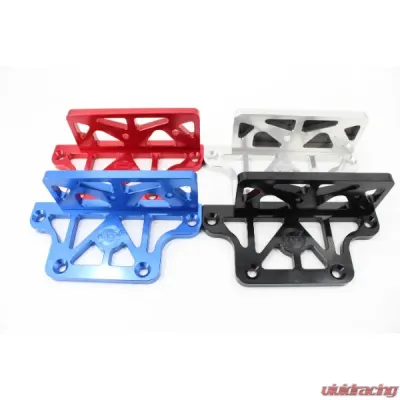

VTT noticed a hole in the A9X Supra/ BMW Z4/G2X/G42 market for a high-quality, lightweight, NVH-friendly, and easy-to-install Diff Lock Down kit to improve diff stability under launching, and hard cornering. So we did something about it and went to work on a very innovative design that 100% positively locks the diff down from movement, while shielding it from adding a ton of NVH, and can be used with the stock diff, and subframe bushings. This design uses existing mounting points on the vehicle, you do NOT have to remove the subframe or the Diff to install. Simply remove 4 diff bolts, drill two holes in the subframe slightly bigger, install two M10 riv-nuts, and install the lockdown, you do not even have to move the exhaust. A typical install can be 15-30 minutes for someone who is experienced working on vehicles, an hour if you like taking it slow. You WILL need a Riv-nut tool to install the Riv-nuts, we provide a link below for what we recommend on Amazon.
Kit Includes:
Features:
Fitment:

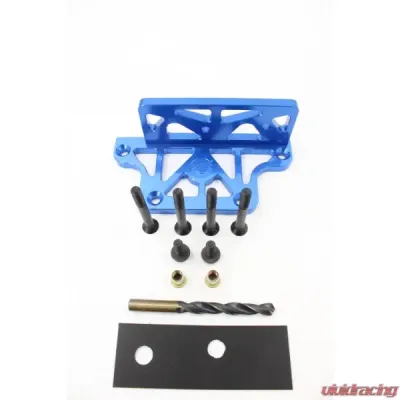

Kit Includes:
- Diff Lockdown kit
- All 12.9 Hardware
- 13mm Drill bit for Riv-nut
- 2-M10 Riv-Nuts
- Optional rubber isolation mat
Features:
- Lightweight 1.5 lbs for the entire lockdown plate
- Uses FOUR connection points on the Diff, and two on the subframe for the ultimate in positive diff location, this will stop all diff movement on launch, saving your guibos, etc
- 100% Billet construction from 6061-T6 aluminum
- Anodized in 4 colors for corrosion resistance, a long-lasting finish, and good looks
- The subframe does NOT have to be removed for installation
- Uses all 12.9 grade hardware
- Does not add excessive NVH
- Positively locks down the diff to eliminate all unwanted movement under launches, acceleration, cornering, etc.
Fitment:
- Toyota A9X Supra 2020-2025
- BMW 2 G24
- BMW 3 G20/21/28/N LCI 2019-2025
- BMW 4 G22/23/26N LCI 2020-2024
- BMW Z4 G29 2019-2025
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Make Vehicle | Model | Year |
|---|---|---|
|
2019 BMW 316d |
316d | 2019 |
|
2019-2025 BMW 318d |
318d | 2019-2025 |
|
2019-2025 BMW 318i |
318i | 2019-2025 |
|
2019-2021 BMW 320d |
320d | 2019-2021 |
|
2021-2025 BMW 320e |
320e | 2021-2025 |
|
2019-2025 BMW 320i |
320i | 2019-2025 |
|
2019-2021 BMW 325d |
325d | 2019-2021 |
|
2019-2021 BMW 330d |
330d | 2019-2021 |
|
2019-2025 BMW 330e |
330e | 2019-2025 |
|
2019-2025 BMW 330i |
330i | 2019-2025 |
|
2019 BMW 335d |
335d | 2019 |
|
2019 BMW 335i |
335i | 2019 |
|
2019-2021 BMW 340i |
340i | 2019-2021 |
|
2020 BMW 420d |
420d | 2020 |
|
2020-2023 BMW 420i |
420i | 2020-2023 |
|
2020 BMW 430d |
430d | 2020 |
|
2020-2025 BMW 430i |
430i | 2020-2025 |
|
2020 BMW 435d |
435d | 2020 |
|
2020-2023 BMW 440i |
440i | 2020-2023 |
|
2019-2025 BMW M340i |
M340i | 2019-2025 |
|
2019-2024 BMW M440i |
M440i | 2019-2024 |
|
2019-2025 BMW Z4 |
Z4 | 2019-2025 |
|
2020-2025 Toyota Supra |
Supra | 2020-2025 |
