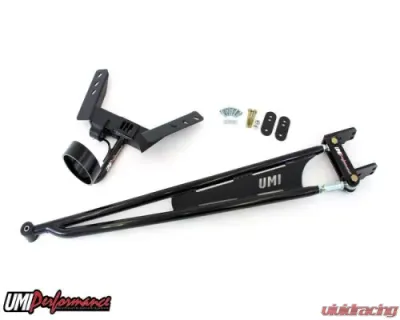

UMI Performance Tunnel Mounted Torque Arm TH400 Transmission w/ Front Drive Shaft Loop 3" Black GM F-Body 1982-1992 2219-B | Vivid Racing
This torque arm set-up is designed to remove the front mounting point of the torque arm off the transmission, protecting the tail shaft from damage. This torque arm is supplied with pivot brackets that allow (2) settings to allow easy instant center adjustments. By simply moving the torque arm into the next location you can automatically change the instant center point of the vehicle. This is very crucial on low to mid horse-power cars and can easily lower 60-foot times. This set-up bolts to existing floor pan holes using 0.188" thick mild steel CNC machined mounting plates and metric grade 10.9 hardware. The complete cross brace is constructed of 0.120" thick rectangular tubing and attaches to the torque arm using 0.250" thick mild steel mounting pivot plates with Grade 8 hardware. The torque arm is attached to the supplied cross brace using an Energy Suspension polyurethane bushing set-up on both the supplied cross brace and torque arm. Polyurethane was chosen as a mounting point to keep road noise at a minimum and eliminate unwanted "clunks" found with other set-ups available. The grease-able polyurethane bushings absorb road irregularities and protect noise from entering the passenger compartment. The rear mounting points feature 0.375" thick CNC machined mounting plates and are appropriately drilled to fit your stock rear as well as aftermarket 12-Bolt and 9" Rear-end housings. This set-up requires no welding or drilling and can be installed with basic hand tools; this is a complete bolt-in design!
Features:
- Color: Black
- This item is supplied with a NHRA legal drive shaft loop and is designed to work with drive shafts up to 3" in diameter.
- Removes torque arm from transmission tail shaft protecting transmission from damage
- Eliminates wheel hop and solves traction problems
- Reduces front end nose dive during braking
- Allows for on-car pinion angle adjustments
- Polyurethane bushings designed to keep road noise at a minimum
- Front mounting point utilizes a grease-able pivot point with instant center adjustment
- Bolt-on design requires no welding or drilling!
- Constructed of 1.250" x 0.120" DOM seamless steel tubing
- Front cross member uses 0.120" x 3.000" rectangular tubing
- TIG welded 4140 chrome moly tube adaptors
- On-car adjuster built using 4140 chrome moly steel and heat treated for maximum strength
- Front pivot mount is supplied with grade 8 mounting hardware and locking nuts
- All polyurethane bushings are grease-able to prolong bushing life
- All mounting plates are CNC machined to insure hole to hole accuracy
- Rear mounting plates use 0.375" thick mild steel and are designed to fit stock as well as 12- bolt and 9" rear-end housings
- Rear mounts feature solid QA1 3/4" rod eyes and are attached using grade 8 hardware
- Brilliant durable powder coat finish
- Chevrolet Camaro 1982-1992
- Pontiac Firebird 1982-1992
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Make Vehicle | Model | Year |
|---|---|---|
|
1982-1992 Chevrolet Camaro |
Camaro | 1982-1992 |
|
1982-1992 Pontiac Firebird |
Firebird | 1982-1992 |
UMI Performance is an aftermarket company that specializes in building high-quality suspension parts. But before they were known as a suspension manufacturer, they manufactured precision parts for major brands such as Corning Asahi, Sony, and Bell+Howell. They may have shifted industries, but their dedication to creating quality products has remained the same.
Quality Products Made In The USAAll of their products are made in-house, which allows them to control every aspect of their products. 100% made in the USA, they can maintain their high standards and create suspension parts that can tackle any street, whether it be the fast corners of a race track or the bumpy road to your grocery store.
Parts Bred From The RacetrackUMI Performance actively participates in various racing disciplines since most of their product engineers and sales team are racers. Because of this, they can test their products through real-life racing scenarios, which helps them gather data that can help improve their products.
Easy To Install PartsEach product is designed to replace factory-installed parts without any significant modification. It is carefully measured to ensure that it would fit perfectly into the vehicle and comes with a step-by-step instructional manual, giving their customers a hassle-free installation experience.
Purchase UMI Performance At Vivid RacingIf you are in the market for high-quality suspension parts for your vehicle, then look no further, as UMI is the brand for you. To know more about UMI, visit Vivid Racing and check out their list of products that fit your specific need.
This warranty is valid against defects in materials and workmanship for the two (2) year warranty period. It is not valid against defect resulting from, but not limited to:
- Misuse and/or abuse, neglect or accident.
Exceeding the item(s) design limits.
Improper installation.
Acts of God, including lightning, floods, earthquakes, fire or high winds.
Damage in handling, including damage encountered during shipment.
This warranty shall be considered void if the warranted product is in any way altered, adjusted, tampered with or defaced.
The two (2) year warranty does not apply to normal wear and tear (the gradual deterioration of an asset which results naturally from use and/or age, i.e. bearings, bushings, etc.).
Non UMI manufactured parts are not covered or valid under this UMI Performance warranty.
UMI Performance cannot guarantee compatibility or performance of its products with other components used in conjunction with UMI Performance products.
UMI Performance cannot assume responsibility for any damages to UMI Products nor for claims for personal injury or property damage resulting from the use of UMI Performance's products or the improper operation thereof or consequential damages arising from the products or use of the products
.UMI Performance two (2) year warranty excludes incidental charges incurred by the end user in the event of breakage (towing, labor, installation, etc.). By their very nature, competition suspension parts are continuously expected to exceed to their limits (either by race or road use). UMI suspension components are designed to withstand intense race conditions, although it is impossible to control the quality of installation or the varying conditions in which they are used.
This warranty supersedes all other warranties and may only be modified by statement in writing, signed by UMI Performance owners/principals.
All Warranties implied by law, including the warranties of merchantability and fitness for a particular purpose, are hereby limited to the warranty period herein and shall expire at the end of such period.
