Each member company of the Hedman Performance Group is a specialist in the field they serve. Hedman hedders specializes in headers, Trans-Dapt Engine/transmission swap mounts, and Hamburger's focuses on oil pans. Working together, the HP Group companies join as one to develop comprehensive kits that include everything you'll need to safely, and properly, fasten the donor LS engine to the 1968-72 GM A-Body chassis. Sold as a single part number, purchasing complete engine swap kit ensures the products have been developed to work with each other, and takes the guesswork out of choosing swap products.

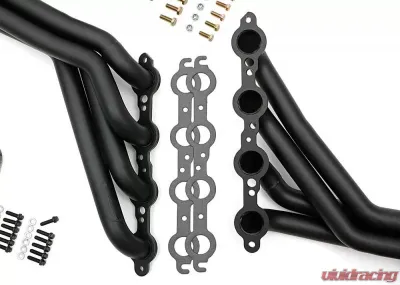

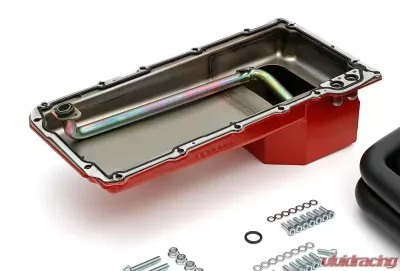

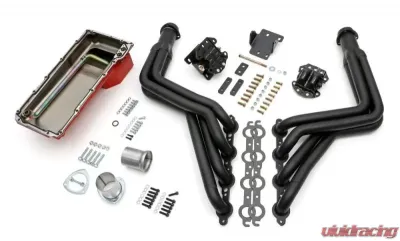

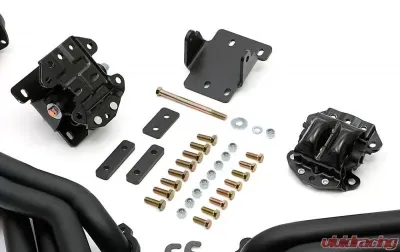

This Swap-In-A-Box Kit is developed specifically for installing an LS engine and 4L60E or 4L70E automatic transmission into 1968-72 GM A-Body cars (Buick Skylark, Chevy Chevelle, El Camino, Monte Carlo, Oldsmobile Cutlass, 442, Vista Cruiser, Pontiac GTO, LeMans, Tempest). This comprehensive kit includes a pair of mild steel, satin black ceramic-coated 1-3/4 diameter, Long Tube headers with gaskets, bolts and exhaust adapters, a complete engine mount kit with hardware and rubber pads, and an LS swap engine oil pan with bolts, gaskets and special pick-up tube

Complete kits for TH350 and TH400 auto transmission projects, as well as kits with Hedman's HTC polished silver ceramic-coated, or uncoated headers are also available.

Headers are backed by a limited lifetime warranty. All other components are covered for a full year from the date of purchase.

Engine Swap-In-A-Box Kit; LS Into 1968-72 GM A-Body Cars (Chevelle, El Camino, GTO, Cutlass, Skylark, Tempest); 4L60E Or 4L70E Transmission; Mild Steel, Long Tube Headers With Black-Maxx Satin-Black Ceramic Coating

• Air Conditioning: Yes
• Automatic Transmission: Yes
• Automatic Transmission: Yes
• Baffled: No
• Bolts/Studs Included: Yes
• California Proposition 65: Warning: Cancer & Reproductive Harm. For More Info Visit Www.P65Warnings.Ca.Gov
• Collector Bolts Included: Yes
• Collector Size: 3 In.
• Collector Style: Ball And Socket Style (Gasketless)
• Crank Shaft Wiper Included: No
• Cylinder Head: Factory Style
• Dipstick Port: No
• Drain Plug Included: Yes
• Exhaust System Dia: 2-1/2 In.
• Fastener(S) Included: Yes
• Finish: Black Maxx Satin Black Ceramic-Metallic
• Flange Thickness: 3/8 In.
• Replacement Gasket: 27470
• Gasket Or Seal Included: Yes
• Replacement Head Flange Gasket: Yes
• Header Fasteners Included: Yes
• Header Finish: Black Maxx Satin Black Ceramic-Metallic
• Header Material: Mild Steel
• Header Port Shape: Round
• Header Style: Long Tube
• Installation Hardware Included: Yes
• Kicked Out: No
• Manual Transmission: No
• Manual Transmission: No
• Material: Mild Steel
• O2 Provision: No
• O2 Sensors: No
• Oil Pan Bolts Included: Yes
• Oil Pan Capacity: 5 Qt. Capacity
• Oil Pan Depth (In): 2 In. At Front Of Pan; 6 In. At Rear Sump
• Oil Pan Material: Steel
• Oxygen Sensor Bung Included: No
• Package Contents: Headers; Engine Mounts; Oil Pan; Related Gaskets And Hardware
• Pickup #: 2522
• Pickup Included: Yes
• Port Shape: Round
• Power Steering: Yes
• Primary Tube Diameter (In): 1.75 In.
• Primary Tube Gauge: 16G
• Product Details: Engine Swap Kit For Installing An Ls Engine Into 1969-72 Chevrolet Chevelle.
• Reducer Outlet Diameter: 2-1/2 In.
• Reducer Outlet Size: 2-1/2 In.
• Reducers Included: Yes
• Replacement Headers: 68153
• Replacement Motor Mount Kit: 4600
• Replacement Mount Pads: 4602
• Replacement Oil Pan: 1108
• Sump Location: Rear
• Sump Style: Wet Sump
• Transmission Notes: Not For Use With 4L80E Or 4L85E Transmissions.
• Tube Design: Long Tubes
• Tube Diameter: 1-3/4 In.
• Tube Length: Long Tubes
• Tube Size: 1-3/4 In.
• Tube Style: Long Tube
• Variations: 46005, 46007,46008.
• Vehicle Use: A-Body (Gm) 1968-72
• Welding Required: No
• Windage Tray Included: No
• Y-Pipe Included: No
• Transmission Compatibility: 4L60E
• Engine: Chevy Ls Series
• Emissions Notes: Not Legal For Street Use On '75-Later Model Years! Legal For Off-Road Use Only.
• Installation Notes: Pan Has -10An Inlet / Outlet Ports, And Requires Relocation Of The Oil Filter.
• Sump Dimensions: 6 In. Deep X 8.25 In. Wide X 7 In. Long
• Hedman Hedders (Included): Yes
• Oil Pan (Included): Yes
• Oil Pan Finish: Red Painted
• Contents: Headers; Engine Mounts; Oil Pan; Related Gaskets And Hardware
