Top Street Performance LT Aluminum Rear Sump Low-Profile Retro-Fit Oil Pan Chevrolet - 81577
Top Street Performance LT Aluminum Rear Sump Low-Profile Retro-Fit Oil Pan Chevrolet - 81577 - Image 2 Top Street Performance LT Aluminum Rear Sump Low-Profile Retro-Fit Oil Pan Chevrolet - 81577 - Image 2

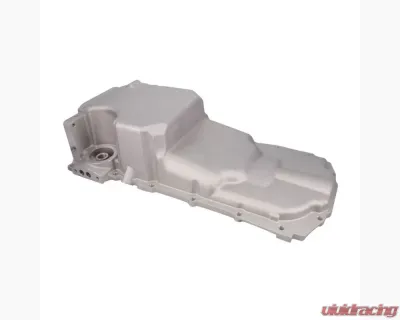

LT engines are becoming more and more popular for swaps. Unfortunately, stock LT oil pans can't always fit where you want them to. That's where TSP's low-profile, retro fit oil pan comes in. Composed of lightweight cast aluminum, it is designed to allow for increased clearance to the ground and chassis. It will fit many GM rear-wheel drive applications originally equipped with a small or big block Chevy engine and factory rear sump pan. Meticulously designed, it will mount perfectly to an LT engine and take the stock oil filter.

Specifications:
  • Sump Style: Wet
  • Sump Location: Rear
  • Sump Depth: 5.56"
  • Maximum Stroke: 4.00"
  • Oil Filter Location: Stock
  • Sump Oil Capacity: 5.6 Quarts
  • Total Oil Capacity: 6.1 Quarts with Stock Filter
  • Baffled: Yes
  • Windage Tray: Included
  • Oil Pick-Up: Included
  • Gasket: Included

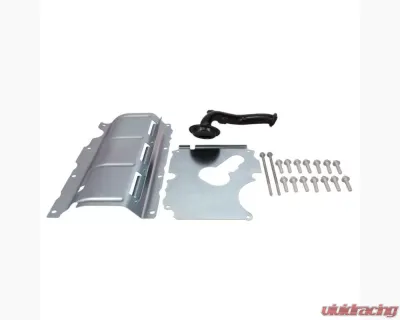

Included:
  • Sump Baffle
  • Oil Pickup Tube
  • Drain Plug
  • Oil Filter Stud
  • Oil Passage Cover
  • Oil Return Plugs
  • Mounting Hardware
Application:
  • Make: Chevrolet
  • Engine Type: Chevrolet Small Block V8 Gen. V (LT-Based)
  • Warranty: Limited Warranty
  • Manufacturer: Top Street Performance
Fitment:
  • Chevrolet Small Block V8 Gen. V (LT-Based)
    • 6.2 L / 376
Note:
  • Ideal for Camaro/Firebird ('67-'92), Nova/Apollo/Ventura/Omega ('68-'74), GM A-body ('64-'72), G-body ('78-'87), and GM Full-size trucks ('73-'87) applications*
  • Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application
  • Requires the use of LT style dipstick and tube: GM #12661062 and 12678823, respectively
  • Pan does not have boss for temperature sensor
