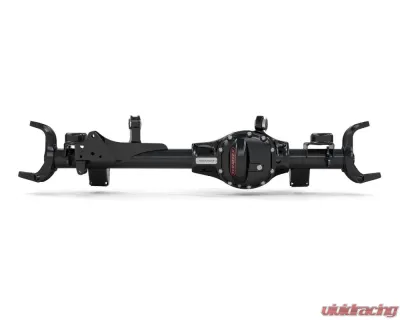

TeraFlex HD Front Axle Housings are perfect for replacing bent, broken, or damaged axles in JK Wrangler/Unlimited vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axles weak areas. Our Bare HD Front Axle Housings feature a heavy-duty housing with axle tubes, bracketry, and forged inner knuckles as well as pre-installed inner seals and upper control arm bushings. Transfer your existing internal components (differential, ring and pinion, axle shafts) and outer components (stub shafts, knuckle assembly, ball joints, unit bearings, brakes, sensors) to the new housing!
Features:
- Our Bare HD Front Axle Housings feature a heavy-duty housing with axle tubes, bracketry, and forged inner knuckles as well as pre-installed inner seals and upper control arm bushings. Transfer your existing components to the new housing.
- 1/4"-thick CNC laser cut axle brackets for extreme strength Integrated factory location upper control arm mount Pre-installed upper control arm bushings Proper pinion angle for lifted JK applications 4-6" Lift features a raised pinion angle
- 100% engineered, designed, and built in the USA w/ new components
- 3.25" O.D. x 0.25" wall axle tube increases torsional strength to resist bending
- bottom oil drain hole for simple fluid changes Reinforced front track bar mount (ties into spring pad) for greater strength UV protected triple-stage powder coat for corrosion resistance
- increased rib gussets HD ductile iron differential cover Smooth radius bottom design to glide over rocks
- lower section strength Ductile cast iron housing
- minimal weight increase Asymmetric housing design for extra-long tube side strength Pre-installed inner axle seals HD forged inner knuckles
- obstacles Integrated lower control arm skid plates High-flow oil passages
- Pre-drilled holes for limit straps and lower spring retainers Retains all JK ESP, ABS, and speedometer sensor capability
- raised track bar bracket (where applicable) Pre-tapped hole on spring perch for bump stop extensions Pre-drilled holes for limit straps
- Retains all JK ESP, ABS, and speedometer sensor capability
Specifications:
- Axle Type: Dana 30
- Bolt Pattern: 5 on 5
- Brakes: Reuse Factory
- Fitment: Direct Fitment
- Front or Rear: Front
- Overall Length: 65.5 Inches
