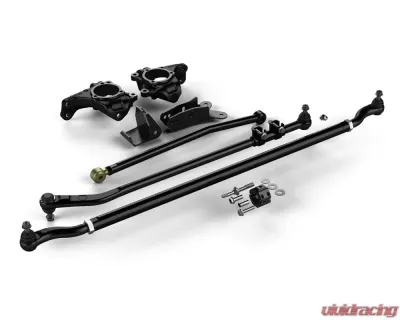

The complete TeraFlex JK: Dana 30/44 High Steer System w/ HD Forged Drag Link Flip Kit & HD Chromoly Tie Rod Kit addresses all the front-end steering issues associated with lifted JK Wrangler/Unlimited models. This system beefs up the steering components of the Dana 30 or Dana 44 front axle, helps maximize steering component ground clearance, and restores correct steering geometry for superior highway drivability. Highly recommended for JK models with 4" or more lift. These High Steer Knuckles maintain correct steering geometry angles for superior highway drivability. Tie Rod ground clearance is increased by more than 1-1/8" to prevent tie rod damage and bending. Cast from heavy-duty ductile iron and reinforced in areas prone to stress and deflection.-Flipping" the HD Forged Drag Link (50% stiffer than factory) over the Knuckle helps eliminate front-end shimmy and other alignment issues. The axle end joint is flipped 180 degrees so it can be pressed down into the top of the knuckle. The Front Track Bar Drop Bracket lowers the Front Track Bar mounting point to correct steering geometry for superior highway drivability. Multiple track bar mounting holes allow you to fine tune the track bar angle to reduce bump steer and other front-end issues. The Frame Brace and Brace Bar reinforce the frame further reducing front end shimmy and excess frame movement. Our complete High Steer System (# 4391000) combines our High Steer Knuckle Kit (# 4390870) with our complete HD Forged Drag Link Flip Kit (# 1853905), Front Track Bar Drop Bracket & Frame Brace Kit (# 1600444), HD Chromoly Tie Rod (# 1853910), and Steering Stabilizer Relocation Mounting Bracket (# 1123160). Most replacement components available separately. Compatible with all factory and aftermarket axle shafts, ball joints, wheel hubs, and tie rods. Does not affect operation of factory stability and traction control systems including ESP and ABS.
Features:
- The complete TeraFlex JK: Dana 30/44 High Steer System w/ HD Drag Link Flip Kit & HD Tie Rod addresses all the front-end steering issues associated with lifted JK Wrangler/Unlimited models. Highly recommended for JK models over 4" of lift.
- Addresses all the front-end steering issues associated with lifted JK Wrangler/Unlimited models
- Front Track Bar Drop Bracket & Frame Brace Kit (# 1600444)
- HD Chromoly Tie Rod Kit (# 1853910)
- HD Forged Drag Link Flip Kit (# 1853930)
- High Steer Knuckle Kit (# 4390870)
- Installation does not require any cutting or removal of factory bracketry Check the individual part numbers below for more detailed Features & Benefits:
- Steering Stabilizer Relocation Mount Bracket Kit - HD Tie Rod (# 1123160)
Specifications:
- Color: Black
- Fitment: Direct Fitment
- Height: 11 Inches
- Install Difficulty: Difficult Requires Professional Installation
- Installation Time: 5+ Hours
- Length: 45 Inches
- Material: Steel
- Width: 16 Inches
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Make Vehicle | Model | Year |
|---|---|---|
|
2007-2018 Jeep Wrangler |
Wrangler | 2007-2018 |
Teraflex is an aftermarket company that specializes in manufacturing various parts and components for the Jeep Wrangler. With their history going back to the 1950s distributing parts for the military jeeps, they have become the leading experts when it comes to the jeep platform and is the go to brand of many Jeep owners today.
Jeep ExpertsThe company offers products that directly fit most Jeep models. They offer suspension parts, body armors, differential covers and more. All of their products are made in-house, ensuring that they would be able to maintain their high-level of standard. They have applied their years of experience to create top-notch products that satisfy their customer’s demands.
Revolutionizing the Jeep IndustryBeing the leader in the market, they are also the pioneers of aftermarket parts when it comes to this platform. They were the first company to introduce aftermarket parts to the then brand new released TJ Wrangler. They offered an upgrade to the newly designed coil over suspension of the TJ series and has also provided a solution to the platform’s transfer case low gearing. They have helped the TJ platform become a key player in the offroad world, which help the company cement its position as the no.1 source of Jeep accessories.
Purchase Teraflex Products at Vivid RacingIf you own a Jeep and want to turn it into a better offroad performing machine, then Teraflex is the right brand for you. With decades of experience in the industry, you can be sure that you will only be getting the best value of the product for your money. Visit Vivid Racing and check out their list of products that would fit your specific needs.
Failure to complete regular maintenance on TeraFlex flexarms (grease every 3000 miles) will void this warranty.
All TeraLow products are warrantied to be free of defects in material and workmanship for two years from date purchased.
TeraFlex axles are covered by the TeraFlex Inc. 12-month warranty to be free of defects in materials and workmanship from date purchased.
All Falcon Shocks are warrantied to a period of three years from the original date of purchase. Upon verification, TeraFlex Inc. will repair or replace the shock absorber at no cost.
To file a warranty claim please call our customer service department at 801-713- 3314, Monday - Friday, 8 am - 5 pm MST. Closed Saturday, Sunday and all major holidays.
