Vivid Racing Gear Select the year of your Jeep Wrangler:

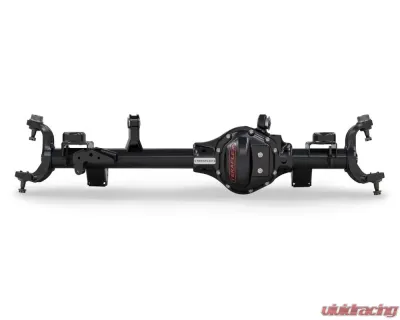

TeraFlex HD Front Axle Housings are perfect for replacing bent, broken, or damaged axles in JK Wrangler/Unlimited Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axles weak areas. Our Bare HD Front Axle Housings feature a heavy-duty housing with axle tubes, bracketry, and forged inner knuckles as well as pre-installed inner seals and upper control arm bushings. Stepping up to our Tera44 Rubicon HD Front Axle Housing w/ Ring & Pinion & OEM Rubicon Locker provides a choice of pre-installed ring and pinon gears, OEM Rubicon locker, and TeraFlex HD Ball Joints. Transfer your inner axles shafts and outer stub shafts, outer knuckles, and outer axle assembly (unit bearings, brakes, sensors) to make a complete axle assembly.
Features:
- Our Tera44 Rubicon HD Front Axle Housing w/ Ring & Pinion & ARB Locker provides a choice of pre-installed ring & pinion gears, OEM locker, and our HD Ball Joints. Transfer some of your existing components to make a complete axle assembly.
- 1-Year/Unlimited Mileage Warranty
- 1/4"-thick CNC laser cut axle brackets for extreme strength
- 100% engineered, designed, and built in the USA w/ new components
- 3.25 O.D. x 0.5" wall extreme duty axle tube increases torsional strength to resist bending
- 4-6" Lift features a raised pinion angle and raised track bar bracket (where applicable)
- Asymmetric housing design for extra-long tube side strength
- Ductile cast iron housing w/ increased rib gussets
- HD ductile iron differential cover
- HD forged inner knuckles w/ greater upper and lower section strength
- High-flow oil passages and bottom oil drain hole for simple fluid changes
- Integrated factory location upper control arm mount
- Integrated lower control arm skid plates
- Pre-drilled holes for limit straps and lower spring retainers
- Pre-installed inner axle seals
- Pre-installed upper control arm bushings
- Pre-tapped hole on spring perch for bump stop extensions
- Proper pinion angle for lifted JK applications
- Reinforced front track bar mount (ties into spring pad) for greater strength
- Retains all JK ESP, ABS, and speedometer sensor capability
- Smooth radius bottom design to glide over rocks and obstacles
- UV protected triple-stage powder coat for corrosion resistance
Specifications:
- Axle Type: Dana 44
- Bolt Pattern: 5 on 5
- Brakes: Reuse Factory
- Fitment: Direct Fitment
- Front or Rear: Front
- Gear Ratio: 4.88
- Overall Length: 65.5 Inches
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Make Vehicle | Model | Year |
|---|---|---|
|
2007-2018 Jeep Wrangler |
Wrangler | 2007-2018 |
Teraflex is an aftermarket company that specializes in manufacturing various parts and components for the Jeep Wrangler. With their history going back to the 1950s distributing parts for the military jeeps, they have become the leading experts when it comes to the jeep platform and is the go to brand of many Jeep owners today.
Jeep ExpertsThe company offers products that directly fit most Jeep models. They offer suspension parts, body armors, differential covers and more. All of their products are made in-house, ensuring that they would be able to maintain their high-level of standard. They have applied their years of experience to create top-notch products that satisfy their customer’s demands.
Revolutionizing the Jeep IndustryBeing the leader in the market, they are also the pioneers of aftermarket parts when it comes to this platform. They were the first company to introduce aftermarket parts to the then brand new released TJ Wrangler. They offered an upgrade to the newly designed coil over suspension of the TJ series and has also provided a solution to the platform’s transfer case low gearing. They have helped the TJ platform become a key player in the offroad world, which help the company cement its position as the no.1 source of Jeep accessories.
Purchase Teraflex Products at Vivid RacingIf you own a Jeep and want to turn it into a better offroad performing machine, then Teraflex is the right brand for you. With decades of experience in the industry, you can be sure that you will only be getting the best value of the product for your money. Visit Vivid Racing and check out their list of products that would fit your specific needs.
Failure to complete regular maintenance on TeraFlex flexarms (grease every 3000 miles) will void this warranty.
All TeraLow products are warrantied to be free of defects in material and workmanship for two years from date purchased.
TeraFlex axles are covered by the TeraFlex Inc. 12-month warranty to be free of defects in materials and workmanship from date purchased.
All Falcon Shocks are warrantied to a period of three years from the original date of purchase. Upon verification, TeraFlex Inc. will repair or replace the shock absorber at no cost.
To file a warranty claim please call our customer service department at 801-713- 3314, Monday - Friday, 8 am - 5 pm MST. Closed Saturday, Sunday and all major holidays.
