Snow Performance Fuel Hats are engineered, CNC machined, and built in the USA from 6061 billet aluminum. These billet hats receive a black anodized finish for the ultimate durability and corrosion resistance, making them compatible with E85 and other harsh fuels.

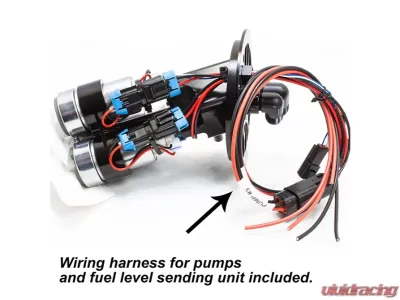

Snow fuel hats completely replace your factory fuel hat/bucket for an easy installation, retaining your factory tank features including, the OE fuel level sending unit, EVAP system, filler neck, and if equipped with saddle style tanks, the fuel transfer pump functionality.

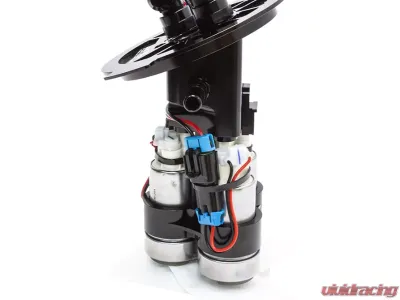

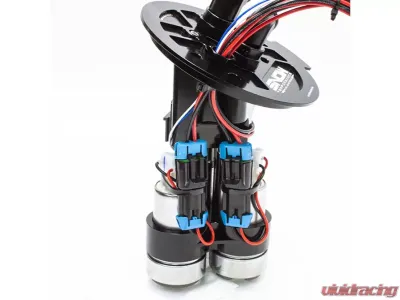

Snow fuel hats feature female 10AN ORB feed and 8AN ORB return ports. 90 degree swivel adapter fittings are sold separately to adapt to your desired combination of 10AN, 8AN or 6AN lines. To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH).
These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). These pumps are NOT compatible with methanol.
For street-driven applications, it can be beneficial to combine a smaller fuel pump along with one or two larger fuel pumps. This allows you to street drive on the smaller fuel pump which has a lower amp draw and does not generate as much heat. Once you get into boost, the larger pumps can be activated to support your high horsepower needs. The easiest way to do this is to use a Snow Performance Boost activated pressure switch (part # SNO-81014) and a Snow Performance Multi-Pump Relay Module (part # SNF-20003).
Available pump configurations are shown below:
- 2 Pump Street able Configuration (one 450lph pump and one 470lph pump). This configuration is capable of supporting 1000+ rwhp on e85 and 1300+ on gasoline.
- 3 Pump Street able Configuration (One 450lph pump and Two 470lph pumps)- This configuration is capable of supporting 1500+ rwhp on e85 and up to 2000 rwhp on gasoline. This configuration draws 10-12% less current than the "Race" 3 pump version.
- 3 Pump Race Configuration (Three 470lph pumps). This configuration is capable of supporting 1600+ rwhp on e85 and up to 2100 rwhp on gasoline. This configuration is designed for max effort/flow.
Fitment:
- Ford Mustang 2011+
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Make Vehicle | Model | Year |
|---|---|---|
|
2011-2022 Ford Mustang |
Mustang | 2011-2022 |
Snow Performance is an aftermarket company that specializes in creating water/methanol injection systems for both gasoline and diesel-powered vehicles. Their products are designed to improve the performance and efficiency of the engine. Today, Snow Performance is considered the leading expert in their field.
When Old Technology Meets 21st-Century VehiclesWater Injection is not a new technology as it has been used since World War II by fighter aircraft. It was later adopted by Renault and Ferrari for their Formula One cars and was even used by most World Rally Championship Cars before it was eventually banned. It was Snow Performance who introduced it for commercial use and perfected a product that you could use on your vehicle.
Keeping Things CoolTheir product helps cool down the air your engine receives by approximately 10% to 25%, especially with turbocharged vehicles where air intake temperatures are higher than those of a normally aspirated engine. Having a cooler air temperature means better performance in the vehicle.
Purchase Snow Performance Products at Vivid RacingTurbocharging is one of the best ways to add horsepower to your engine. To further improve the performance of your vehicle, you need a product that would help cool down the air given out by your turbocharge. And this is where Snow Performance comes in. They offer systems that would fit various vehicles and also have universal kits that you can custom fit on your desired application. To know more about Snow Performance, visit Vivid Racing and check out their list of products that would fit your specific needs.
