Now for the long story of why RPG over the others:

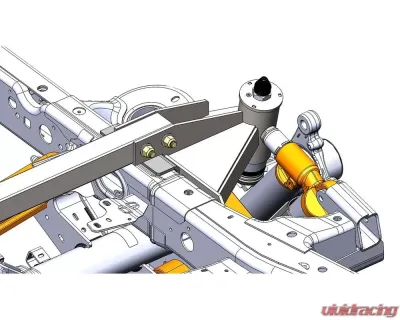

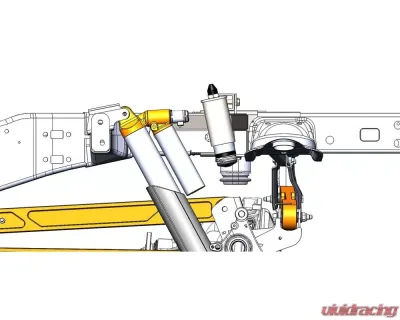

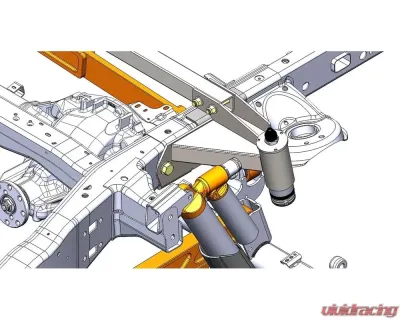

The frame support is over 3 times thicker than the stock frame, and transfers the energy to a much larger cross section of the frame, and not just the inner weak part that has already proven itself prone to fail in Gen 1 Raptors. Unlike other systems that are out there, we also intentionally didn't enclose the whole frame rail. We left the inner rail open with the theory that in case of a rear-end collision, the frame still has a path of least resistance to follow. Another major benefit of going with the RPG Stage 2, 3 or 4 system is the fact we use a full size 2.5" bump stop vs. a 2.0" bump stop that are typically only found in light buggies and mid sized trucks on the racing circuits.
The Fox 2.5" bump stop is the same bump that is used on nearly every wining trophy truck that Fox sponsors. The reasons why you want to run a 2.5" vs. a 2.0" on your Raptor is the following. A 2.5" bump stop has nearly 100% more piston surface than a 2.0 Airbump, plus has far greater amounts of fluid in the bump stop body itself to help with cooling the bump. This means you can run much less valving, much less nitrogen pressure and a much shorter shaft than a 2.0" inch like found on our competitors kits. The Fox 2.5" bump stop only requires 2.5" of shaft travel vs. 3.75-4" of shaft travel with a 2.0". This results in a bump stop that sits further away from the axle. With the RPG kit you won't be hitting the bumps around town on every dip, pothole and speed bump, and most importantly, your bump stop wont be the one controlling the ride, the shock will. The only time a bump stop should be felt is in the last 15-20% of your full bottom out travel. It should only be a last line of defense, not a ride characteristic tool. Our rebound valving is setup so it doesn't interfere with the ride, and comes out fast as opposed to slowly like you will find on our competitors kits. A fast rebound setup will prevent double bumping in whoop sections and allows for the bump to keep up with the whole suspension. With our kit, you only need to run 90psi for both on road and offroad. There is no need to ever adjust it from there and it offers displays very little heat buildup which results in a much longer life span.
Features:
- 3 times thicker than the stock frame
- Strengthens whole rear frame, not just the weak sections
- Big enough and Strong enough to run 4" long airbumps to increase payloads and towing
- 100% Lifetime warranty on your frame support
- Able to run very little air pressure for smooth and controlled ride
- Double cross bolt design to eliminate inward frame movement
- Doesn't interfere with aftermarket exhaust options
- No gimmicks, just proven results with the offroad miles to prove it
- RPG Frame Support with Air Bump Mounts
- Grade 8 Hardware
- Axle Impact Pads
- Ford Raptor 2021-2022
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Make Vehicle | Model | Year |
|---|---|---|
|
2021-2025 Ford F-150 |
F-150 | 2021-2025 |
RPG Offroad was created with one simple goal in mind, and that is to advance the Raptor and F-150 platform to new heights. RPG has teamed up with the best of the best in the Off-road industry to bring Ford F-150, Raptor, Ranger, and Bronco owners the absolute toughest and safest off-road suspension performance upgrades on the planet. When you are designing components that will exceed normal factory operating limits on a routine basis, you better have some stellar engineering capabilities and your components better be precision crafted using modern-day CAD technology, robotic welding and CNC crafted parts. RPG lives breathe and sleep engineering to bring you the most durable and safest parts for your truck. You demand the best and with over a decade of experience and racing wins under our belt, we deliver.
Product LineRPG Offroad is proud to offer its new line of performance front and rear suspension components. Take, for example, the BOLT KIT: Bolt-On Long Travel. Total comfort and control RPG Style. Jumps and whoops that were formerly spine shattering on trucks that were stock or modified with single Fox 3.0” coil-overs are now buttery smooth launching pads. The kit brings together precision-crafted components that are engineered and tuned to work in harmony towards one common goal: Dominate every obstacle. We achieved this with increased dampening power, unsurpassed strength in construction, and fine-tuning the entire package to perfection. By starting from scratch on the front suspension, we were able to eliminate weak points and push the Raptor’s capability to a completely different realm of performance. Ready to climb to the pinnacle of Raptor performance? The BOLT kit is available now!
