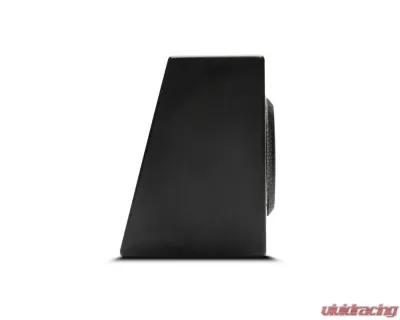

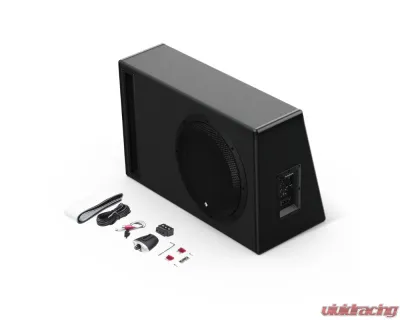

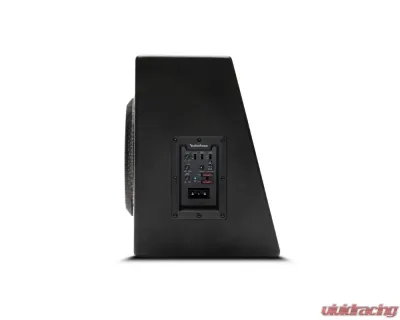

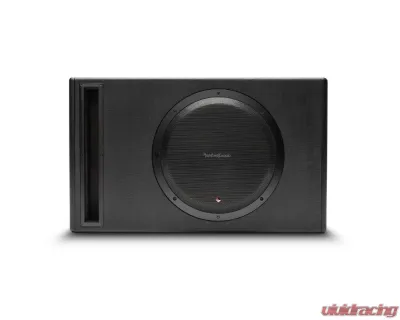

Rockford Fosgate Punch 12" 500-Watt Powered Enclosure - P500-12P
Rockford Fosgate Punch 12" 500-Watt Powered Enclosure - P500-12P - Image 4 Rockford Fosgate Punch 12" 500-Watt Powered Enclosure - P500-12P - Image 2 Rockford Fosgate Punch 12" 500-Watt Powered Enclosure - P500-12P - Image 3 Rockford Fosgate Punch 12" 500-Watt Powered Enclosure - P500-12P - Image 4
The Punch P500-12P is an ''all in one'' solution for adding serious bass to Hatchbacks, Sedans, and SUVs. This model features a 12'' high output woofer with a 500-watt internal amplifier and a high output vented enclosure that's great for sedan and hatchback applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.

The Punch 500-12P is a self-contained subwoofer enclosure with built-in amplifier. This ''all in one'' solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 12'' high output subwoofer is impedance optimized for the built in 500-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. You can change the amount of bass on the fly with the included remote level control. The slot port provides powerful output at lower frequencies for enhanced bass reproduction. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-of/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks. The enclosure also features a quick-release connectors for easy removal when you need extra cargo space.

Features:
  • Optimized 12" Low Impedance Woofer
  • 500 Watt Class-D Amplifier with Optimized "Closed Loop" Design
  • Adjustable 12db/Octave low pass crossover
  • On Board Phase Switch
  • Intelligent auto turn on/off function
  • Robust Power/Ground connections
  • Quick Input Connections for Easy Removal
  • On Board Adjustable Bass EQ
  • Remote bass level control included
  • Separate low level and speaker level inputs
  • Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
  • Thermal and over/under voltage protection
  • Designed For Hatchback, Sedan, and SUV Applications
  • 1 year Warranty
Specifications:
  • CEA-2006 Compliant: CEA-2006 Guidelines
  • CEA-2031 Compliant: Yes
  • Woofer Quantity: 1
  • Woofer Size: 12"
  • Woofer Series: Proprietary
  • Frequency Response: 20 Hz to 200 Hz
  • Power Handling
  • (Watts RMS): 500 Watts RMS
  • Enclosure Type: Ported
  • Integrated Amplifier: 500 Watts RMS
  • Enclosure Material: 5/8" MDF (Medium Density Fiberboard)
  • Crossover Controls:
    • Variable 50 Hz to 200 Hz
    • 12dB/Octave Butterworth
  • Tone Controls:
    • Bass Boost
    • 0 dB to +12 dB @ 45 Hz
  • Phase Control:
    • 0° to 180°
    • Remote Control: Punch Level Control (Included)
    • Replacement Part: 1130-59232-01
  • Input Switch:
    • High-Level (Speaker Line)
    • Low-Level (RCA)
  • Auto Turn-On Selector:
    • Remote Trigger
    • DC Offset Sense
    • Audio Sense
  • Signal Input:
    • Low/High-Level: 1 RCA Pair (L/R Summed)
    • Replacement Part: 1130-59232-01
  • Input Impedance: 20k Ohms
  • Power Input Connector: Quick Disconnect
  • Replacement Part: 1130-59232-01
  • Power Wire Gauge:
    • B+/GND: 8 AWG
    • REM: 18 AWG
  • Heatsink Type: Extruded Aluminum
  • Input Sensitivity:
    • Low-Level: 150 mV to 6 V
    • High-Level: 300 mV to 12 V
  • Circuit Topology Class: Class-D
  • Cooling: Convection
  • Visual Indicators: Power/Protect LED
  • Fuses: 30 Amp (2 x 15 Amp ATO Fuse)
  • Dimensions Wedge H x W x D1 x D2:
    • 15.00" x 24.76" x 10.91" x 7.71"
    • (38.1 cm x 62.9 cm x 27.7 cm x 189.2 cm)
  • Shipping Weight: 48.2 Lbs. (21.9 kg)
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Since day one, Rockford Fosgate® spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound to drivers, boaters, motorcyclists and off-road enthusiasts.
Rockford Corporation offers a limited warranty on Rockford Fosgate products:

Length of Warranty
  • All Speakers – 1 Year
  • Signal Processors – 1 Year
  • PRIME Amplifiers – 1 Year
  • PUNCH Amplifiers – 1 Year
  • POWER Amplifiers – 2 Years
  • Any Factory Refurbished Product – 90 days (receipt required)
What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Warranty Outside the USA

The above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country.
