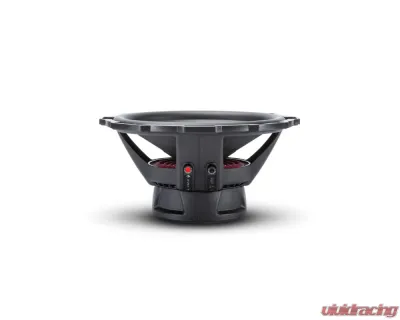

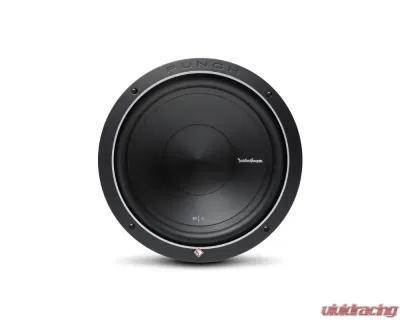

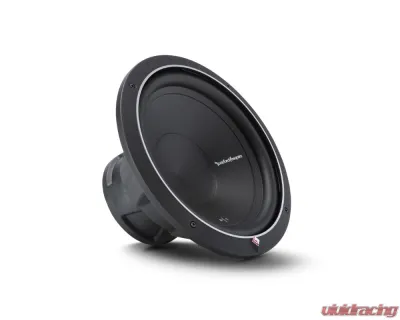

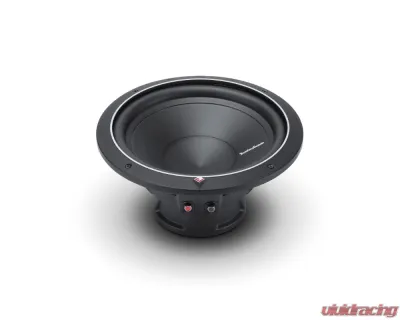

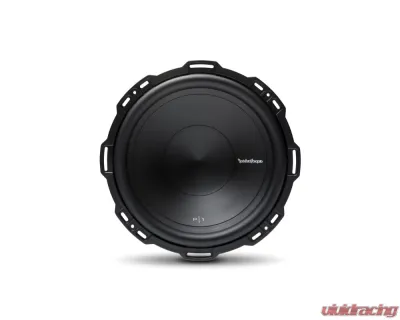

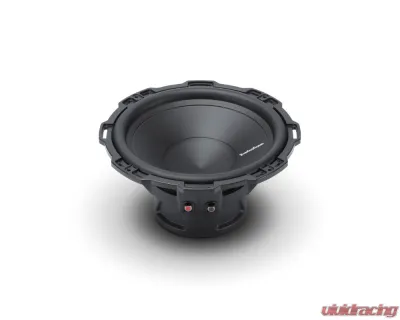

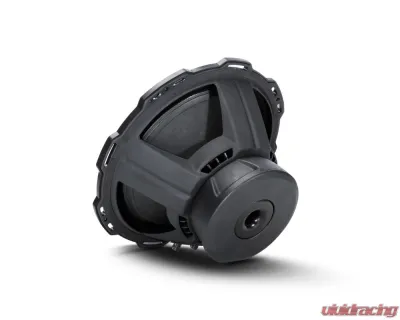

Rockford Fosgate Punch 12" P1 4-Ohm SVC Subwoofer - P1S4-12
Rockford Fosgate Punch 12" P1 4-Ohm SVC Subwoofer - P1S4-12 - Image 8 Rockford Fosgate Punch 12" P1 4-Ohm SVC Subwoofer - P1S4-12 - Image 2 Rockford Fosgate Punch 12" P1 4-Ohm SVC Subwoofer - P1S4-12 - Image 3 Rockford Fosgate Punch 12" P1 4-Ohm SVC Subwoofer - P1S4-12 - Image 4 Rockford Fosgate Punch 12" P1 4-Ohm SVC Subwoofer - P1S4-12 - Image 5 Rockford Fosgate Punch 12" P1 4-Ohm SVC Subwoofer - P1S4-12 - Image 6 Rockford Fosgate Punch 12" P1 4-Ohm SVC Subwoofer - P1S4-12 - Image 7 Rockford Fosgate Punch 12" P1 4-Ohm SVC Subwoofer - P1S4-12 - Image 8
Rockford Fosgate P1 12" is the first in a family of famous "Punch" subwoofers for cars and trucks. The P1S4-12 features a 4-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.

Rockford Fosgate P1 12" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology in the Punch P1 woofer increases woofer surface cone area by up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.

Features:
  • Linear spider with embedded 16 AWG tinsel leads
  • High-temp voice coil with spun-laced Nomex re-inforcement collar
  • Kevlar fiber reinforced paper cone
  • StampCast basket with integrated spider venting
  • Rubberized ABS trim ring with optional grille
  • Custom 10-AWG nickel plated push terminals
  • Extended pole piece and bumped vented backplate
  • Protective PVC textured magnet cover
  • 1 Year Warranty
Specifications:
  • Power Handling (Watts RMS):
    • 250 Watts RMS
    • 500 Watts Max
  • Subwoofer Type: Standard
  • Size: 12"
  • Nominal Impedance: 4-Ohm
  • Magnet Weight (oz): 45 oz. (1.28 kg.)
  • Speaker Connector: Dual 10 AWG compression
  • Voice Coil Diameter: 2.0" (51.6 mm)
  • Voice Coil Type: Single Voice Coil
  • Le (mH): 3.01
  • Fs (Hz): 25
  • Qts: 0.55
  • Qes: 0.56
  • Xmax (mm): 9.0
  • Qms: 3.40
  • Vas (Liters): 88.3
  • Re (Ohms): 3.6
  • Sd (cm2): 548
  • SPL (dB @ 1w/1m): 86
  • SPL (dB @ 2.8v/1m): 89
  • Cutout Diameter: 11.22 in. (285 mm)
  • Mounting Depth: 6.0 in. (152.4 mm)
  • Woofer Displacement: 0.081 cu. ft. (2.3 Liters)
  • Sealed Box Volume (Vb): 1.02 cu. ft. (28.8 Liters)
  • Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
  • Shipping Weight: 11.7 Lbs. (5.3 kg)
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Since day one, Rockford Fosgate® spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound to drivers, boaters, motorcyclists and off-road enthusiasts.
Rockford Corporation offers a limited warranty on Rockford Fosgate products:

Length of Warranty
  • All Speakers – 1 Year
  • Signal Processors – 1 Year
  • PRIME Amplifiers – 1 Year
  • PUNCH Amplifiers – 1 Year
  • POWER Amplifiers – 2 Years
  • Any Factory Refurbished Product – 90 days (receipt required)
What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Warranty Outside the USA

The above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country.
