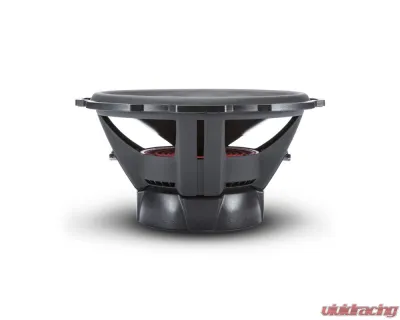

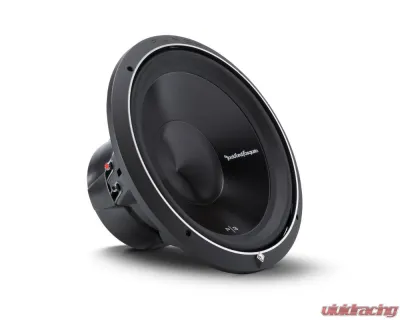

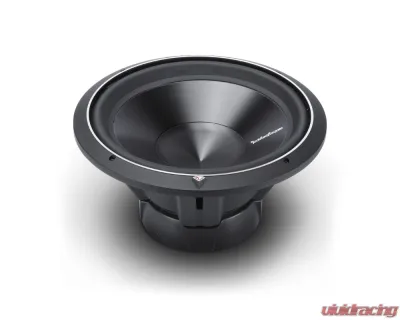

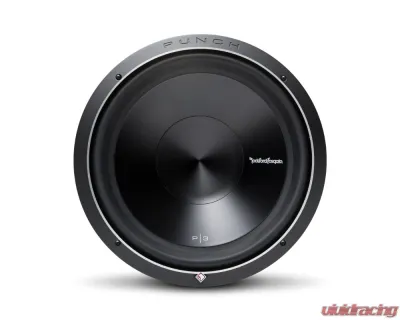

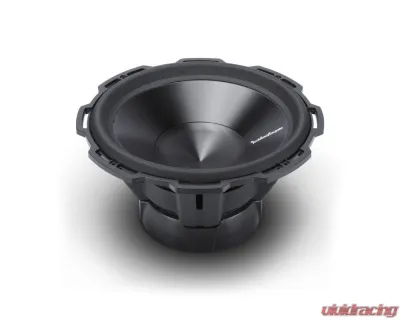

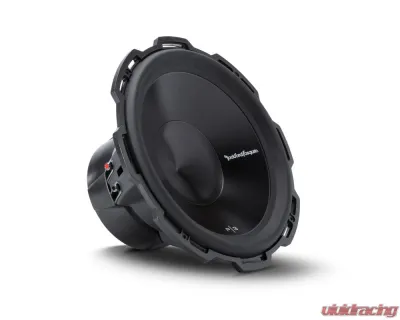

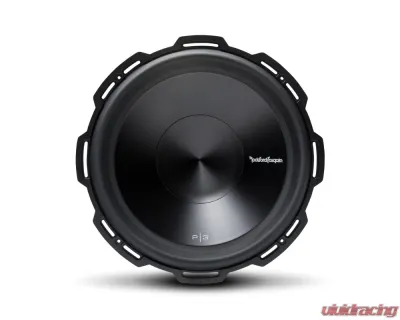

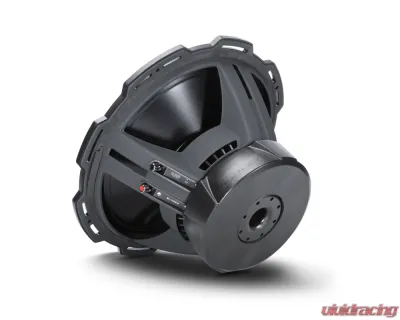

Rockford Fosgate Punch 15" P3 4-Ohm DVC Subwoofer - P3D4-15
Rockford Fosgate Punch 15" P3 4-Ohm DVC Subwoofer - P3D4-15 - Image 8 Rockford Fosgate Punch 15" P3 4-Ohm DVC Subwoofer - P3D4-15 - Image 2 Rockford Fosgate Punch 15" P3 4-Ohm DVC Subwoofer - P3D4-15 - Image 3 Rockford Fosgate Punch 15" P3 4-Ohm DVC Subwoofer - P3D4-15 - Image 4 Rockford Fosgate Punch 15" P3 4-Ohm DVC Subwoofer - P3D4-15 - Image 5 Rockford Fosgate Punch 15" P3 4-Ohm DVC Subwoofer - P3D4-15 - Image 6 Rockford Fosgate Punch 15" P3 4-Ohm DVC Subwoofer - P3D4-15 - Image 7 Rockford Fosgate Punch 15" P3 4-Ohm DVC Subwoofer - P3D4-15 - Image 8
The P3D4-15 is the best performing Rockford Fosgate Punch series subwoofer. The P3 15" features Dual 4-Ohm voice coils, 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.

The P3D4-15 is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

Features:
  • Custom 10-AWG nickel plated push terminals
  • Rubberized over-mold for greater grip
  • Extended pole piece and bumped vented backplate
  • High-temp voice coil with spun-laced Nomex re-inforcement collar
  • Anodized aluminum cone and dustcap
  • Protective PVC textured magnet cover
  • Diamond cut cast aluminum trim ring with optional grille
  • StampCast basket with integrated spider venting
  • 1 Year Warranty
Specifications:
  • Size: 15"
  • Speaker Connector: Dual 10 AWG compression
  • Shipping Weight: 23.3 Lbs. (10.56 kg)
  • Fs (Hz): 22.4
  • Cutout Diameter: 13.94 in. (353 mm)
  • Nominal Impedance: Dual 4-Ohm
  • Magnet Weight (oz): 96 oz. (2.73 kg.)
  • Voice Coil Diameter: 2.5" (65.5 mm)
  • Power Handling (Watts RMS):
    • 600 Watts RMS
    • 1200 Watts Max
  • SPL (dB @ 1w/1m): 86
  • Mounting Depth: 7.58 in. (192.5 mm)
  • Qts: 0.57
  • Qes: 0.64
  • Qms: 4.90
  • Vas (Liters): 155.8
  • Woofer Displacement: 0.148 cu. ft. (4.2 Liters)
  • Re (Ohms): 6.40
  • Le (mH): 6.45
  • Xmax (mm): 15.9
  • Sd (cm2): 894
  • Subwoofer Type: Standard
  • Voice Coil Type: Dual Voice Coil
  • Sealed Box Volume (Vb): 1.58 cu. ft. (44.7 Liters)
  • Vented Box Volume (Vb): 2.66 cu. ft. (75.3 Liters)
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Since day one, Rockford Fosgate® spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound to drivers, boaters, motorcyclists and off-road enthusiasts.
Rockford Corporation offers a limited warranty on Rockford Fosgate products:

Length of Warranty
  • All Speakers – 1 Year
  • Signal Processors – 1 Year
  • PRIME Amplifiers – 1 Year
  • PUNCH Amplifiers – 1 Year
  • POWER Amplifiers – 2 Years
  • Any Factory Refurbished Product – 90 days (receipt required)
What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Warranty Outside the USA

The above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country.
