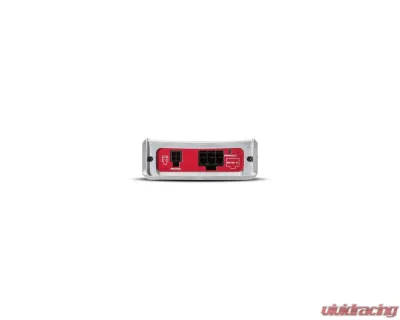

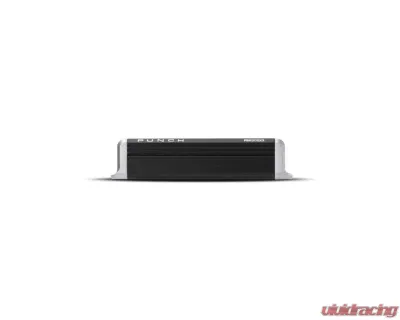

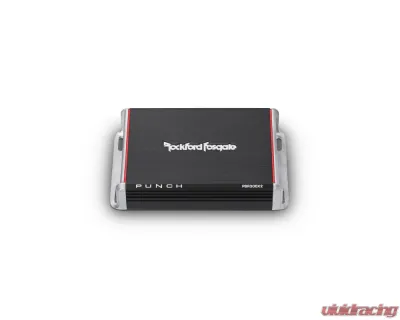

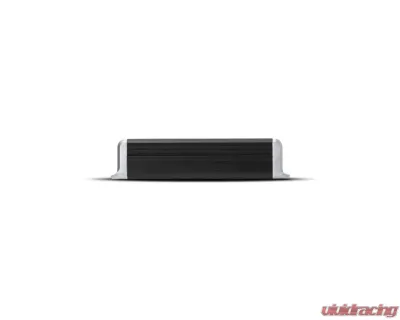

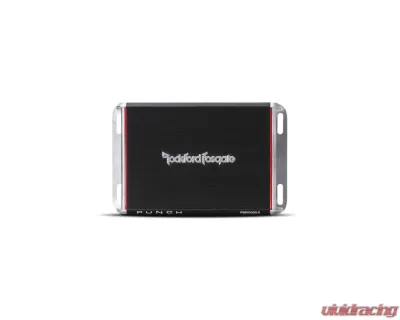

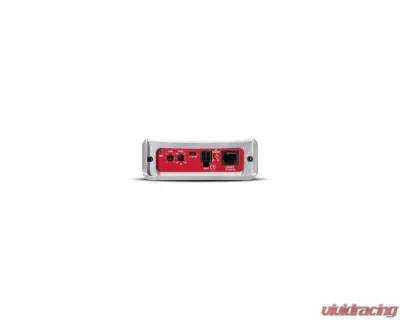

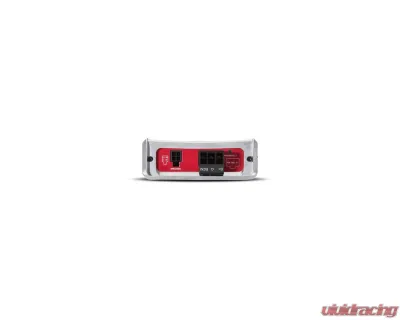

Rockford Fosgate Punch 300 Watt 2-Channel Amplifier - PBR300X2
Rockford Fosgate Punch 300 Watt 2-Channel Amplifier - PBR300X2 - Image 7 Rockford Fosgate Punch 300 Watt 2-Channel Amplifier - PBR300X2 - Image 2 Rockford Fosgate Punch 300 Watt 2-Channel Amplifier - PBR300X2 - Image 3 Rockford Fosgate Punch 300 Watt 2-Channel Amplifier - PBR300X2 - Image 4 Rockford Fosgate Punch 300 Watt 2-Channel Amplifier - PBR300X2 - Image 5 Rockford Fosgate Punch 300 Watt 2-Channel Amplifier - PBR300X2 - Image 6 Rockford Fosgate Punch 300 Watt 2-Channel Amplifier - PBR300X2 - Image 7
The PBR300X2 is a 300 Watt amplifier with Boosted Rail Technology, allowing it to be compact and efficient while providing big power. This amp is great for smaller stealth installations, motorcycles and recreational vehicles.

The Punch PBR300X2 uses our patented BRT (Boosted Rail Technology) for an ultra efficient design that does not use a switching power supply to generate its rated power. This allows the chassis design to be much smaller than traditional sized amplifiers. The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system. It is great for smaller stealth installations, as well as for motorcycles and recreational vehicles.

Features:
  • Variable 4-6 volt hi level DC offset voltage input turn-on control
  • Ultra compact chassis
  • High level inputs
  • 12dB/octave Butterworth crossover
  • MOSFET output stage
  • 1 Year Warranty
Specifications:
  • Number of Channels: 2
  • Total Power (Sum of Rated Power): 300 Watts
  • Rated Power (RMS Continuous Power):
    • 100 Watts x 2 @ 4-Ohm
    • 150 Watts x 2 @ 2-Ohm
    • 300 Watts x 1 @ 4-Ohm Bridged
  • Dynamic Power (PVC/PowerCube®):
    • 114 Watts x 2 @ 4-Ohm
    • 160 Watts x 2 @ 2-Ohm
    • 387 Watts x 1 @ 4-Ohm Bridged
  • Bridgeable: Yes
  • Frequency Response: 20Hz - 20kHz +/-3dB
  • Input Sensitivity: 150 mV - 11 V
  • Circuit Topology Class: Class BR
  • Efficiency (average): 68% @ 4-Ohm
  • Total Harmonic Distortion (THD+Noise):
    • 4-Ohm: <1.0%
    • 2-Ohm: <1.0%
  • Signal Input:
    • High/Low Level Input: 4-Pin harness
    • Hi-Level Sensitivity: Variable DC offset sensitivity
  • Tone Controls: Optional Remote Punch EQ
  • Crossover Controls:
    • High-Pass: 50Hz - 500Hz @ 12dB/Octave Butterworth
    • Low-Pass: 50Hz - 500Hz @ 12dB/Octave Butterworth
    • All-Pass: Yes
  • Remote Controls: Optional PEQ provides 0dB to +18dB @ 45Hz
  • Visual Indicators: Power/Protect, BRT (Boost)
  • Power Wire Gauge: 10 AWG
  • Power Input Connector: Detachable Compression Terminal
  • Speaker Wire Gauge: 16 AWG
  • Speaker Output Connector: 4-Pin Harness
  • Cooling: Convection
  • Operating Voltage: 9 - 16 VDC
  • Recommended Fuse (not included): 50 A
  • Average Current Draw (13.8V Music): 23 A
  • Max. Current Draw (13.8V Sinewave): 45 A
  • Suggested Alternator: 75 A
  • Dimensions (H x W x D):
    • 1.53 x 4.25 x 6.75 (in.)
    • 3.90 x 10.8 x 17.2 (cm)
  • Shipping Weight: 2.8 Lbs. (1.27 Kg.)
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Since day one, Rockford Fosgate® spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound to drivers, boaters, motorcyclists and off-road enthusiasts.
Rockford Corporation offers a limited warranty on Rockford Fosgate products:

Length of Warranty
  • All Speakers – 1 Year
  • Signal Processors – 1 Year
  • PRIME Amplifiers – 1 Year
  • PUNCH Amplifiers – 1 Year
  • POWER Amplifiers – 2 Years
  • Any Factory Refurbished Product – 90 days (receipt required)
What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Warranty Outside the USA

The above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country.
