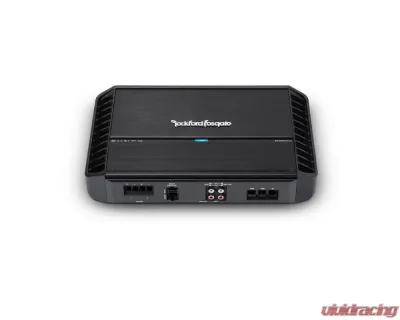

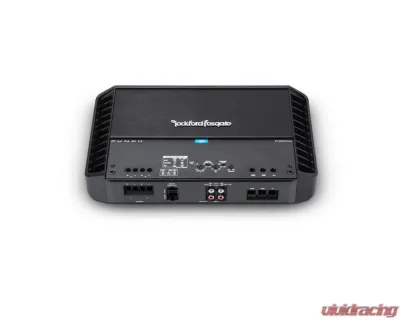

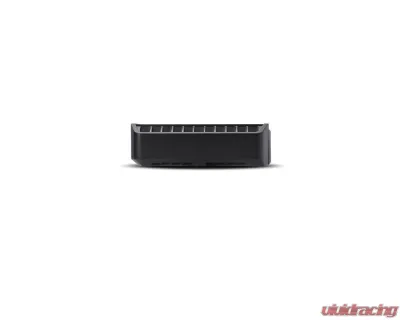

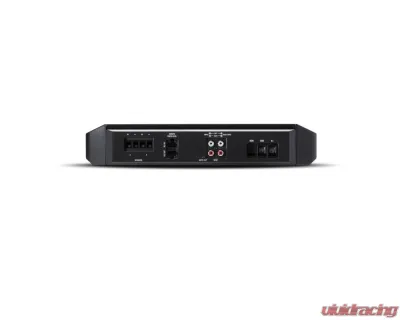

Rockford Fosgate Punch 1,000 Watt Class-bd Mono Amplifier - P1000X1BD
Rockford Fosgate Punch 1,000 Watt Class-bd Mono Amplifier - P1000X1BD - Image 7 Rockford Fosgate Punch 1,000 Watt Class-bd Mono Amplifier - P1000X1BD - Image 2 Rockford Fosgate Punch 1,000 Watt Class-bd Mono Amplifier - P1000X1BD - Image 3 Rockford Fosgate Punch 1,000 Watt Class-bd Mono Amplifier - P1000X1BD - Image 4 Rockford Fosgate Punch 1,000 Watt Class-bd Mono Amplifier - P1000X1BD - Image 5 Rockford Fosgate Punch 1,000 Watt Class-bd Mono Amplifier - P1000X1BD - Image 6 Rockford Fosgate Punch 1,000 Watt Class-bd Mono Amplifier - P1000X1BD - Image 7
The Punch P1000X1bd mono amplifier pumps out 1,000 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response is optimized for subwoofers.

With its super efficient Class-BD circuit topology, the P1000X1bd assures maximum BOOM for your buck! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.

Features:
  • High level input capable with Auto Turn-On circuit
  • RCA pass-thru outputs
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • Features C.L.E.A.N. Set-up
  • 12dB/octave Butterworth crossover
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Infrasonic filter
  • Over current protection
  • 1 Year Warranty
Specifications:
  • Number of Channels: 1
  • Total Power (Sum of Rated Power): 1000 Watts
  • Rated Power (RMS Continuous Power):
    • 300 Watts x 1 @ 4-Ohm
    • 500 Watts x 1 @ 2-Ohm
    • 1000 Watts x 1 @ 1-Ohm
  • Dynamic Power (PVC/PowerCube®):
    • 491 Watts x 1 @ 4-Ohms
    • 874 Watts x 1 @ 2-Ohms
    • 1,430 Watts x 1 @ 1-Ohm
  • Bridgeable: No
  • Frequency Response: 20Hz to 250Hz +/- 1.0dB
  • Input Sensitivity: 150 mV - 12 V
  • Circuit Topology Class: Class BD
  • Efficiency (average): 86% @ 4-Ohm
  • Total Harmonic Distortion (THD+Noise):
    • 4-Ohm: <1.0%
    • 2-Ohm: <1.0%
    • 1-Ohm: <1.0%
  • Signal Input: Hi/Low level: 1 RCA pair
  • Signal Output: Hi/Low level: 1 RCA pair
  • Tone Controls: Punch EQ2 Bass: 0dB to +18dB @ 45Hz
  • Crossover Controls:
    • Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth
    • Infrasonic Filter (IF): 28Hz @ 12dB/Octave Butterworth
    • All-Pass: No
  • Remote Controls: Optional Punch Level Control (PLC2) Ready
  • Visual Indicators:
    • Power/Protect/Thermal LED
    • Input Clip LED3
    • Output Clip LED1,2,3
    • LED Color Legend: 1BLUE: <0.5% THD
    • 2VIOLET: 1% THD
    • 3RED: 10%+ THD
  • Power Wire Gauge: 4 AWG
  • Power Input Connector: Captive C-Clamp
  • Speaker Wire Gauge: 8 AWG to 18 AWG
  • Speaker Output Connector: Captive C-Clamp
  • Cooling: Convection
  • Operating Voltage: 9 - 16 VDC
  • Recommended Fuse (not included): 140 A
  • Average Current Draw (13.8V Music): 65 A
  • Max. Current Draw (13.8V Sinewave): 130 A
  • Suggested Alternator: 100 A
  • Dimensions (H x W x D): 2.38 x 7.76 x 13.28 (in) | 6.05 x 19.71 x 33.73 (cm)
  • Shipping Weight: 12.9 Lbs. (5.85 Kg.)
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Since day one, Rockford Fosgate® spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound to drivers, boaters, motorcyclists and off-road enthusiasts.
Rockford Corporation offers a limited warranty on Rockford Fosgate products:

Length of Warranty
  • All Speakers – 1 Year
  • Signal Processors – 1 Year
  • PRIME Amplifiers – 1 Year
  • PUNCH Amplifiers – 1 Year
  • POWER Amplifiers – 2 Years
  • Any Factory Refurbished Product – 90 days (receipt required)
What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Warranty Outside the USA

The above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country.
