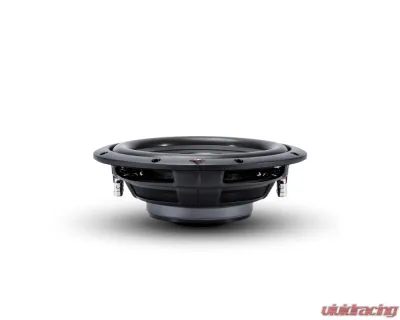

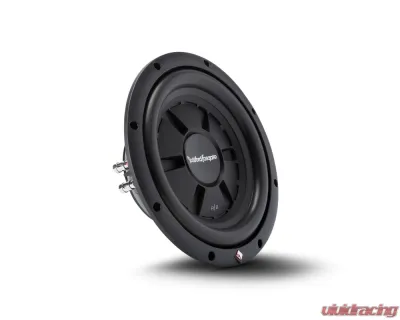

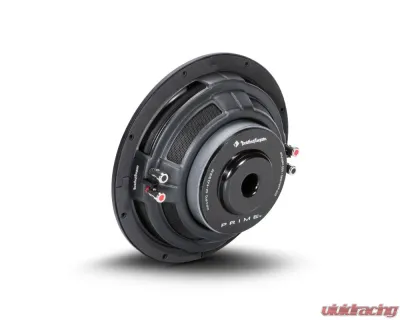

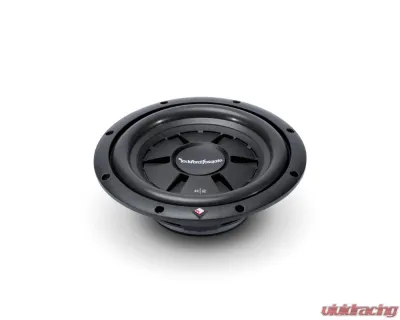

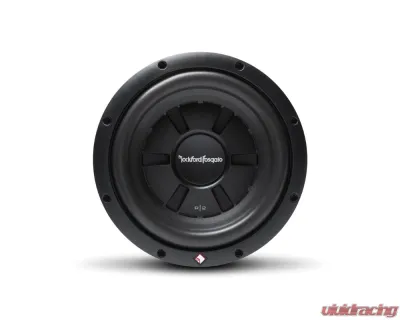

Rockford Fosgate Prime 10" R2 4-Ohm DVC Shallow Subwoofer - R2SD4-10
Rockford Fosgate Prime 10" R2 4-Ohm DVC Shallow Subwoofer - R2SD4-10 - Image 5 Rockford Fosgate Prime 10" R2 4-Ohm DVC Shallow Subwoofer - R2SD4-10 - Image 2 Rockford Fosgate Prime 10" R2 4-Ohm DVC Shallow Subwoofer - R2SD4-10 - Image 3 Rockford Fosgate Prime 10" R2 4-Ohm DVC Shallow Subwoofer - R2SD4-10 - Image 4 Rockford Fosgate Prime 10" R2 4-Ohm DVC Shallow Subwoofer - R2SD4-10 - Image 5
When you have no space for bass, our Prime R2SD4-10 shallow subwoofer will satisfy your need. This 10" subwoofer handles 200 Watts RMS and the 4-Ohm Dual Voice Coil design lets you to wire them in various configurations.

When you have no space for bass, our R2 10" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.

Features:
  • 12 AWG compression terminals
  • Anodized aluminum voice coil former
  • Optimized for both sealed and vented enclosures
  • Mica injected polypropylene cone
  • Linear spider with embedded 16 AWG tinsel leads
  • StampCast basket with integrated spider venting
  • Integrated PVC trim ring
  • Shallow Motor Assembly
  • 1 Year Warranty
Specifications:
  • Magnet Weight (oz): 45 oz. 1.28 kg.
  • Size: 10"
  • Nominal Impedance: Dual 4-Ohm
  • Mounting Depth: 3.417 in. (86 mm)
  • SPL (dB @ 1w/1m): 82.5
  • Fs (Hz): 39.3
  • Vas (Liters): 21.7
  • Xmax (mm): 8.0
  • Cutout Diameter: 9.125 in. (232 mm)
  • Re (Ohms): 6.60
  • Sd (cm2): 333
  • Le (mH): 4.2
  • Power Handling (Watts RMS):
    • 200 Watts RMS
    • 400 Watts Max
  • Voice Coil Diameter: 2" (50 mm)
  • Shipping Weight: 10.588 Lbs. (4.80 kg.)
  • Speaker Connector: Dual 12 AWG compression
  • Qts: 0.73
  • Woofer Displacement: 0.037 cu. ft. (1.05 Liters)
  • Qms: 7.00
  • Qes: 0.81
  • Subwoofer Type: Shallow
  • Voice Coil Type: Dual Voice Coil
  • Sealed Box Volume (Vb): 0.7 cu. ft. (19.8 Liters)
  • Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Since day one, Rockford Fosgate® spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound to drivers, boaters, motorcyclists and off-road enthusiasts.
Rockford Corporation offers a limited warranty on Rockford Fosgate products:

Length of Warranty
  • All Speakers – 1 Year
  • Signal Processors – 1 Year
  • PRIME Amplifiers – 1 Year
  • PUNCH Amplifiers – 1 Year
  • POWER Amplifiers – 2 Years
  • Any Factory Refurbished Product – 90 days (receipt required)
What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Warranty Outside the USA

The above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country.
