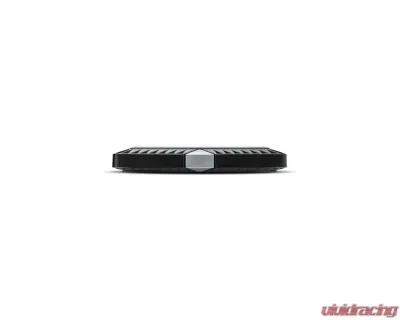

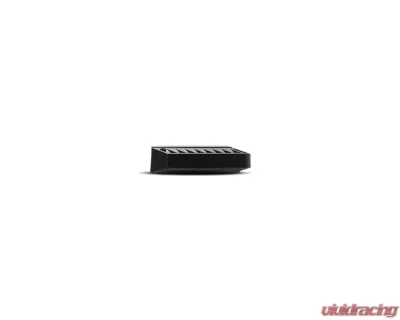

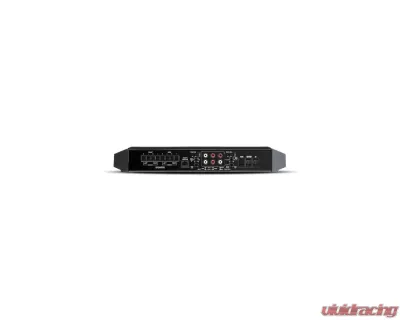

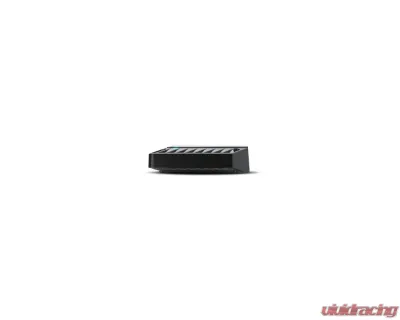

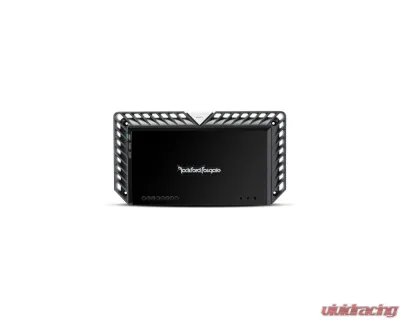

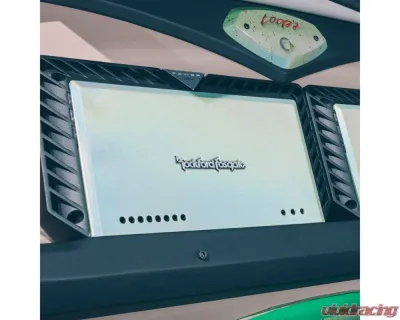

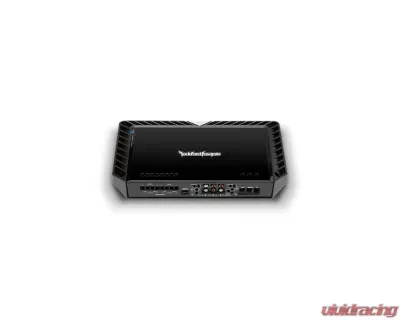

Rockford Fosgate Power 600 Watt 4-Channel Amplifier - T600-4
Rockford Fosgate Power 600 Watt 4-Channel Amplifier - T600-4 - Image 7 Rockford Fosgate Power 600 Watt 4-Channel Amplifier - T600-4 - Image 2 Rockford Fosgate Power 600 Watt 4-Channel Amplifier - T600-4 - Image 3 Rockford Fosgate Power 600 Watt 4-Channel Amplifier - T600-4 - Image 4 Rockford Fosgate Power 600 Watt 4-Channel Amplifier - T600-4 - Image 5 Rockford Fosgate Power 600 Watt 4-Channel Amplifier - T600-4 - Image 6 Rockford Fosgate Power 600 Watt 4-Channel Amplifier - T600-4 - Image 7
The Power T600-4 is a 4-channel amplifier capable of producing 150 Watts into each of its four channels at 2-Ohms. The T600-4 can run a 4-way full-range system or use component speakers on the front with subwoofers on the rear.

The T600-4 amplifier offers the perfect balance of power output and compact design required for high performance audio systems. The 4-channel configuration allows fine tuning adjustments between front stage component systems and rear surround speakers. The built-in crossover also allows the rear channels to be configured for running one or two subwoofers.

Features:
  • 24dB/octave crossover
  • 2/4 channel input switch
  • MOSFET power supply
  • MOSFET output stage
  • 4 Gauge power/ground connectors
  • Audiophile grade speaker connections
  • RCA pass-thru outputs
  • 2-Year Warranty
Specifications:
  • Number of Channels: 4
  • Total Power (Sum of Rated Power): 600 Watts RMS
  • Rated Power (RMS Continuous Power):
    • 100 Watts x 4 @ 4-Ohm
    • 150 Watts x 4 @ 2-Ohm
    • 300 Watts x 2 @ 4-Ohm Bridged
    • 2-Ohm x 2 Bridged Stable
  • Dynamic Power (PVC/PowerCube®):
    • Front Channels
    • 139 Watts x 2 @ 4-Ohms 0° Res
    • 236 Watts x 2 @ 2-Ohms 0° Res
    • Rear Channels
    • 140 Watts x 2 @ 4-Ohms 0° Res
    • 236 Watts x 2 @ 2-Ohms 0° Res
  • Bridgeable: Yes
  • Frequency Response: 20Hz to 20kHz +/- 1dB
  • Input Sensitivity: 150 mV to 4 V
  • Circuit Topology Class: Class A/B
  • Efficiency (average):
    • 70% @ 4-Ohm
    • 64% @ 2-Ohm
  • Total Harmonic Distortion (THD+Noise):
    • 4-Ohm: <1.0%
    • 2-Ohm: <1.0%
  • Signal Input:
    • Front Low level: 1 RCA pair
    • Rear Low level: 1 RCA pair
    • Input Switch: 2CH / 4CH
  • Signal Output: Low Level: 1 RCA pair
  • Tone Controls:
    • Front Channels - Punch EQ
    • Treble: 0dB to +12dB @ 12kHz
    • Bass: 0dB to +18dB @ 45Hz
    • Rear Channels - Punch EQ
    • Treble: 0dB to +12dB @ 12kHz
    • Bass: 0dB to +18dB @ 45Hz
  • Crossover Controls:
    • Front High-Pass (HP): 50-500Hz 24dB/octave Butterworth
    • Front Low-Pass (LP): 50-500Hz 24dB/octave Butterworth
    • Rear High-Pass (HP): 50-500Hz 24dB/octave Butterworth
    • Rear Low-Pass (LP): 50-500Hz 24dB/octave Butterworth
  • Remote Controls: Optional Remote Punch EQ (overrides rear channel built-in Punch EQ)
  • Visual Indicators:
    • Power
    • Thermal
    • Protect
  • Power Wire Gauge: 4 AWG
  • Power Input Connector: Block
  • Speaker Wire Gauge: 8 AWG to 18 AWG
  • Speaker Output Connector: Screw terminal barrier strip
  • Cooling: Convection
  • Operating Voltage: 9 - 16 VDC
  • Recommended Fuse (not included): 80 A
  • Average Current Draw (13.8V Music): 40 A
  • Max. Current Draw (13.8V Sinewave): 80 A
  • Suggested Alternator: 75 A
  • Dimensions (H x W x D):
    • 2.14 x 8.14 x 14.91 (in)
    • 5.42 x 20.68 x 37.86 (cm)
  • Shipping Weight: 12.00 Lbs. (5.44 Kg.)
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Since day one, Rockford Fosgate® spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound to drivers, boaters, motorcyclists and off-road enthusiasts.
Rockford Corporation offers a limited warranty on Rockford Fosgate products:

Length of Warranty
  • All Speakers – 1 Year
  • Signal Processors – 1 Year
  • PRIME Amplifiers – 1 Year
  • PUNCH Amplifiers – 1 Year
  • POWER Amplifiers – 2 Years
  • Any Factory Refurbished Product – 90 days (receipt required)
What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Warranty Outside the USA

The above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country.
