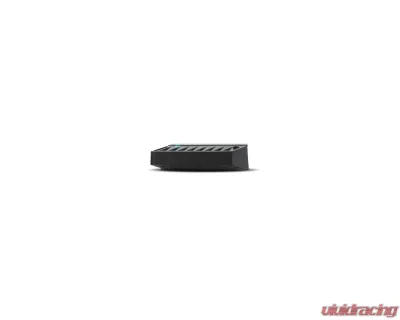

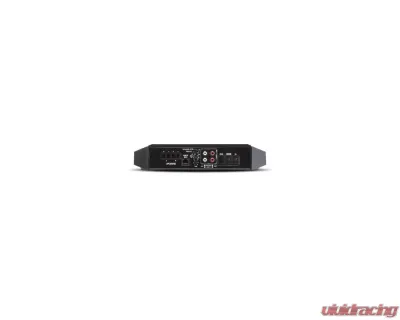

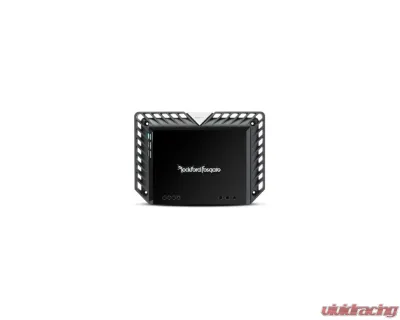

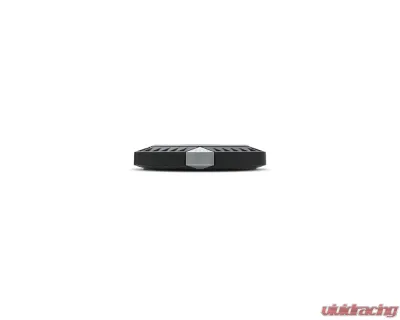

Rockford Fosgate Power 500 Watt Class-bd Constant Power Amplifier - T500-1bdCP
Rockford Fosgate Power 500 Watt Class-bd Constant Power Amplifier - T500-1bdCP - Image 6 Rockford Fosgate Power 500 Watt Class-bd Constant Power Amplifier - T500-1bdCP - Image 2 Rockford Fosgate Power 500 Watt Class-bd Constant Power Amplifier - T500-1bdCP - Image 3 Rockford Fosgate Power 500 Watt Class-bd Constant Power Amplifier - T500-1bdCP - Image 4 Rockford Fosgate Power 500 Watt Class-bd Constant Power Amplifier - T500-1bdCP - Image 5 Rockford Fosgate Power 500 Watt Class-bd Constant Power Amplifier - T500-1bdCP - Image 6
The Power T500-1bdCP is a 500 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T500-1bdCP is optimized exclusively for use with subwoofers.

The T500-1bdCP is based on the legendary T500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. With the T500-1bdCP, you can now use an "under-the-seat" dedicated subwoofer amplifier to drive two 4-Ohm DVC subwoofers. This amp will provide enough bass to separate you from those envious car audio geeks.

Features:
  • Infrasonic filter
  • 24dB/octave crossover
  • 4 Gauge power/ground connectors
  • MOSFET power supply
  • MOSFET output stage
  • RCA pass-thru outputs
  • Audiophile grade speaker connections
  • 2-Year Warranty
Specifications:
  • Number of Channels: 1
  • Total Power (Sum of Rated Power): 500 Watts RMS
  • Rated Power (RMS Continuous Power):
    • 300 Watts x 1 @ 4-Ohm
    • 500 Watts x 1 @ 2-Ohm
    • 500 Watts x 1 @ 1-Ohm
  • Dynamic Power (PVC/PowerCube®):
    • 328 Watts x 1 @ 4-Ohms
    • 537 Watts x 1 @ 2-Ohms
    • 707 Watts x 1 @ 1-Ohm
  • Bridgeable: No
  • Frequency Response: 20Hz to 250Hz +/- 0.5dB
  • Input Sensitivity: 150 mV to 4 V
  • Circuit Topology Class: Class BD
  • Efficiency (average):
    • 86.2% @ 4-Ohm
    • 82.3% @ 2-Ohm
    • 73.4% @ 1-Ohm
  • Total Harmonic Distortion (THD+Noise):
    • 4-Ohm: <1.0%
    • 2-Ohm: <1.0%
    • 1-Ohm: <1.0%
  • Signal Input: Low level: 1 RCA pair
  • Signal Output: Low Level: 1 RCA pair
  • Tone Controls: Bass: 0dB to +18dB @ 45Hz
  • Crossover Controls:
    • Low-Pass (LP): 35-250Hz 24dB/Octave Butterworth
    • Infrasonic Filter: -3dB @ 28Hz 12dB/Octave
  • Remote Controls: Optional Remote Punch Bass EQ (overrides built-in Punch Bass EQ)
  • Visual Indicators:
    • Power
    • Thermal
    • Protect
  • Power Wire Gauge: 4 AWG
  • Power Input Connector: Block
  • Speaker Wire Gauge: 8 AWG to 18 AWG
  • Speaker Output Connector: Screw terminal barrier strip
  • Cooling: Convection
  • Operating Voltage: 9 - 16 VDC
  • Recommended Fuse (not included): 80 A
  • Average Current Draw (13.8V Music): 35 A
  • Max. Current Draw (13.8V Sinewave): 70 A
  • Suggested Alternator: 75 A
  • Dimensions (H x W x D):
    • 2.14 x 8.14 x 11.41 (in)
    • 5.42 x 20.68 x 28.97 (cm)
  • Shipping Weight: 13.39 Lbs. (6.07 Kg.)
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Since day one, Rockford Fosgate® spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound to drivers, boaters, motorcyclists and off-road enthusiasts.
Rockford Corporation offers a limited warranty on Rockford Fosgate products:

Length of Warranty
  • All Speakers – 1 Year
  • Signal Processors – 1 Year
  • PRIME Amplifiers – 1 Year
  • PUNCH Amplifiers – 1 Year
  • POWER Amplifiers – 2 Years
  • Any Factory Refurbished Product – 90 days (receipt required)
What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Warranty Outside the USA

The above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country.
