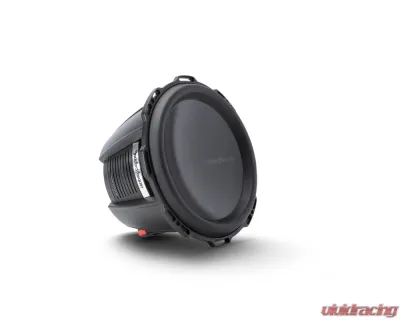

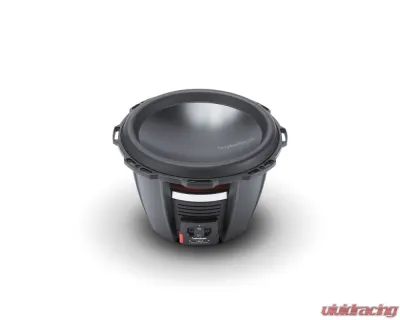

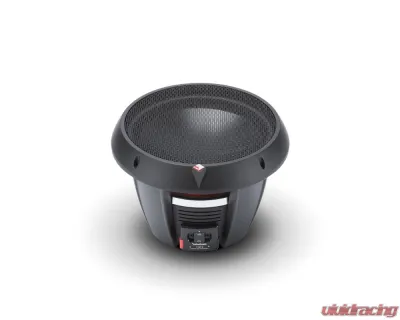

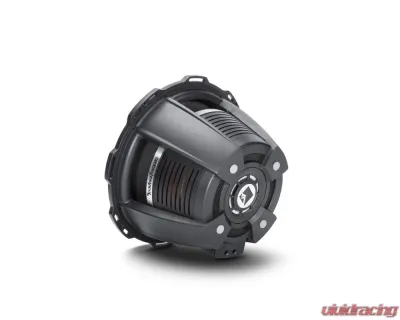

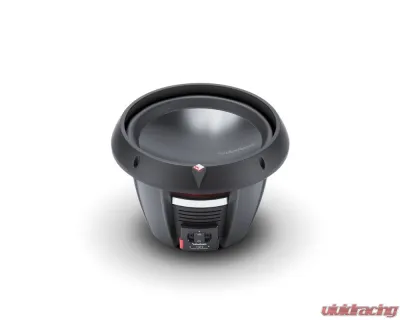

Rockford Fosgate Power 12" T1 4-Ohm DVC Subwoofer - T1D412
Rockford Fosgate Power 12" T1 4-Ohm DVC Subwoofer - T1D412 - Image 10 Rockford Fosgate Power 12" T1 4-Ohm DVC Subwoofer - T1D412 - Image 2 Rockford Fosgate Power 12" T1 4-Ohm DVC Subwoofer - T1D412 - Image 3 Rockford Fosgate Power 12" T1 4-Ohm DVC Subwoofer - T1D412 - Image 4 Rockford Fosgate Power 12" T1 4-Ohm DVC Subwoofer - T1D412 - Image 5 Rockford Fosgate Power 12" T1 4-Ohm DVC Subwoofer - T1D412 - Image 6 Rockford Fosgate Power 12" T1 4-Ohm DVC Subwoofer - T1D412 - Image 7 Rockford Fosgate Power 12" T1 4-Ohm DVC Subwoofer - T1D412 - Image 8 Rockford Fosgate Power 12" T1 4-Ohm DVC Subwoofer - T1D412 - Image 9 Rockford Fosgate Power 12" T1 4-Ohm DVC Subwoofer - T1D412 - Image 10
Innovative technologies allow the T1D412 Power subwoofer to perform like a larger woofer over the previous model. The T1 12" features dual 4-Ohm voice coils, 800 Watts RMS power handling, and includes a grille with integral trim ring.

The Power Series T1D412 Dual 4-Ohm subwoofer builds on innovative new Rockford Fosgate technologies. Built for cars and trucks, these bad boys have patented VAST technology that increases surface cone area up to 25% so the T1D412 performs like a much larger woofer over the previous model. The new FlexFit basket not only looks the part but it provides extreme flexibility for extreme installations. Clean, high tech and ready to set off car alarms, the T1D412 is here!

Features:
  • Symmetrical dual progressive roll tear resistant poly-cotton spiders
  • Periodic-stitched fatigue resistant tinsel lead wire
  • Proprietary 8 AWG insulated allmetal input spring terminal connection
  • High-temp voice coil with spun-laced Nomex re-inforcement collar
  • Optimized and matched magnetic and complicance geometry
  • Anodized aluminum heat sinking dust cap
  • Kevlar fiber reinforced paper cone
  • Rigid die-cast aluminum basket
  • Optimized pole piece and spider venting
  • Anodized aluminum voice coil former / copper clad aluminum wire
  • 1 Year Warranty
Specifications:
  • Power Handling (Watts RMS):
    • 800 Watts RMS
    • 1600 Watts Max
  • Size: 12"
  • Mounting Depth: 6.75 in. (171 mm)
  • Voice Coil Diameter: 3" (75.4 mm)
  • Fs (Hz): 29.2
  • Woofer Displacement: 0.106 cu. ft. (3.0 Liters)
  • Nominal Impedance: Dual 4-Ohm
  • Sd (cm2): 548
  • Cutout Diameter: 11.25 in. (285 mm)
  • Qts: 0.61
  • Shipping Weight: 33.3 Lbs. (15.10 Kg.)
  • Speaker Connector: Compression Terminal
  • Qes: 0.71
  • Qms: 4.50
  • Vas (Liters): 55.8
  • Xmax (mm): 16
  • Re (Ohms): 6.50
  • Le (mH): 2.4
  • Magnet Weight (oz): 123 oz. (3.48 kg)
  • SPL (dB @ 1w/1m): 85
  • Subwoofer Type: Standard
  • Voice Coil Type: Dual Voice Coil
  • Sealed Box Volume (Vb): 1.25 cu. ft. (35.3 Liters)
  • Vented Box Volume (Vb): 1.75 cu. ft. (49.5 Liters)
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Since day one, Rockford Fosgate® spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound to drivers, boaters, motorcyclists and off-road enthusiasts.
Rockford Corporation offers a limited warranty on Rockford Fosgate products:

Length of Warranty
  • All Speakers – 1 Year
  • Signal Processors – 1 Year
  • PRIME Amplifiers – 1 Year
  • PUNCH Amplifiers – 1 Year
  • POWER Amplifiers – 2 Years
  • Any Factory Refurbished Product – 90 days (receipt required)
What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Warranty Outside the USA

The above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country.
