Rockford Fosgate M2 750 Watt 5-Channel Element Ready Amplifier - M2-750X5
Rockford Fosgate M2 750 Watt 5-Channel Element Ready Amplifier - M2-750X5 - Image 6 Rockford Fosgate M2 750 Watt 5-Channel Element Ready Amplifier - M2-750X5 - Image 2 Rockford Fosgate M2 750 Watt 5-Channel Element Ready Amplifier - M2-750X5 - Image 3 Rockford Fosgate M2 750 Watt 5-Channel Element Ready Amplifier - M2-750X5 - Image 4 Rockford Fosgate M2 750 Watt 5-Channel Element Ready Amplifier - M2-750X5 - Image 5 Rockford Fosgate M2 750 Watt 5-Channel Element Ready Amplifier - M2-750X5 - Image 6
Since day one, we've spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate® is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound in a way the world has never felt before.

Designed to withstand the elements, the R2-750X5 amplifier is an Element Ready 600 watt, full-range class-D model, capable of operating at 4 Ohm or 2 Ohm stereo, and 4 Ohm bridged/mono with a subwoofer channel that can be run at 4 Ohm or 2 Ohm. This amplifier is extremely efficient because of its class D technology which reduces demand on the electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass.

The M2 Series were developed for marine audio environments that feature UV resistant protection and special internal conformal coating that protect the electronics from water. Its designed for those who want a reliable amplifier with all the power and performance youve come to expect from Rockford Fosgate at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being "under rated," easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of M2 Series amplifiers are also designed to be easy to setup and configure, making them perfect for use in any application.

Features:

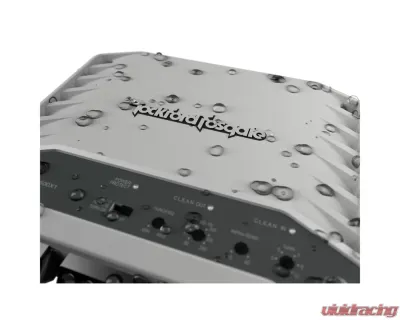

  • Element Ready design protects against outdoor exposure
  • Conformal coated circuit board protects against dust and water
  • UV stable powder coated cast aluminum heatsink
  • Zinc Nickel-plated Marine grade brass connection terminals
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • Optimized using AudioGraph PowerCube measurement tool
  • Focused mass heatsink design
  • Top mounted control panel
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
  • Short Circuit & Over Current Protection
  • Variable Infrasonic Filter
  • Integrated Power and Speaker Terminals
  • Balanced Differential Inputs via Speaker Line or RCA Inputs
  • RCA pass-thru outputs
  • Integration with OEM and Aftermarket Radios
  • "Auto-Sense" turn-on with remote out (high level in)
  • Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
  • Low Impedance Stability
  • Proprietary testing using RATS (Rockford Automated Testing System)
  • CEA-2006 Compliant & CE Compliant
  • 2-Year Warranty
Specifications:
  • Number of Channels: 5
  • Total Power (Sum of Rated Power): 750 Watts
  • Rated Power (RMS Continuous Power):
    • 50 Watts x 4 + 200 Watts x 1 @ 4Ω
    • 100 Watts x 4 + 350 Watts x 1 @ 2Ω
    • 200 Watts x 2 + N/A @ 4Ω Bridged/Mono
  • Dynamic Power (PVC/PowerCube®):
    • 70 Watts x 4 + 241 Watts x 1 @ 4Ω
    • 114 Watts x 4 + 426 Watts x 1 @ 2Ω
    • 234 Watts x 2 + N/A @ 4Ω Bridged/Mono
  • Bridgeable: Yes
  • Frequency Response: 20 Hz - 20 kHz
  • Input Sensitivity:
    • Low-Level: 150 mV - 4 V
    • High-Level: 450 mV - 12 V
  • Circuit Topology Class: Class D
  • Total Harmonic Distortion (THD+Noise):
    • 4Ω: <1.0%
    • 2Ω: <1.0%
  • Signal Input:
    • Front Low-Level: 2 RCA
    • Front High-Level: 4-Pin Molex
    • Rear Low-Level: 2 RCA
    • Rear High-Level: 4-Pin Molex
    • Sub Low-Level: 2 RCA
    • Sub High-Level: 4-Pin Molex
  • Signal Output: N/A
  • Tone Controls: 0 to +18 dB @ 45 Hz
  • Crossover Controls:
    • Front High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
    • Front Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
    • Rear High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
    • Rear Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
    • Sub Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
    • Sub Infrasonic: 15 Hz - 40 Hz @ 12dB/Octave Butterworth
  • Remote Controls: Yes
  • Visual Indicators:
    • Power/Protect
    • C.L.E.A.N. In
    • C.L.E.A.N. Out (front)
    • C.L.E.A.N. Out (rear)
    • C.L.E.A.N. Out (sub)
  • Power Wire Gauge: 4 AWG
  • Power Input Connector: Compression Terminal Block
  • Speaker Wire Gauge: 8 AWG
  • Speaker Output Connector: Compression Terminal Block
  • Cooling: Convection
  • Operating Voltage: 9 - 16 VDC
  • Recommended Fuse (not included): 120 A
  • Max. Current Draw (13.8V Sinewave): 71 A
  • Dimensions (H x W x D):
    • 1.9" x 6.8" x 11.2"
    • (4.9 cm x 17.3 cm x 28.5 cm)
  • Shipping Weight: 6.13 Lbs. (2.78 Kg)


Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Since day one, Rockford Fosgate® spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound to drivers, boaters, motorcyclists and off-road enthusiasts.
Rockford Corporation offers a limited warranty on Rockford Fosgate products:

Length of Warranty
  • All Speakers – 1 Year
  • Signal Processors – 1 Year
  • PRIME Amplifiers – 1 Year
  • PUNCH Amplifiers – 1 Year
  • POWER Amplifiers – 2 Years
  • Any Factory Refurbished Product – 90 days (receipt required)
What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Warranty Outside the USA

The above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country.
