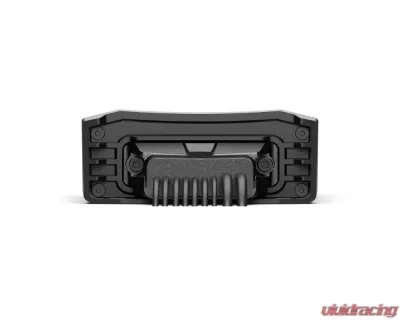

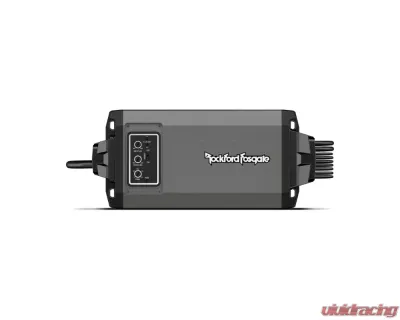

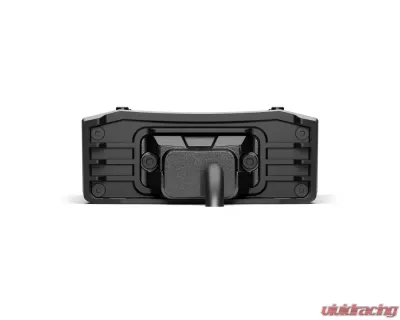

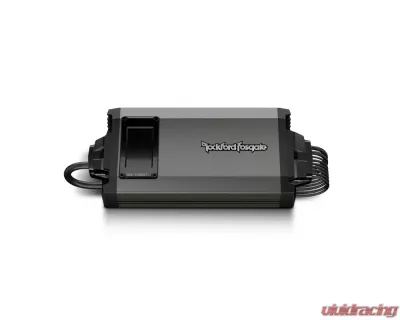

Rockford Fosgate 1000 Watt Mono IPX6 Element Ready Amplifier - M5-1000X1
Rockford Fosgate 1000 Watt Mono IPX6 Element Ready Amplifier - M5-1000X1 - Image 5 Rockford Fosgate 1000 Watt Mono IPX6 Element Ready Amplifier - M5-1000X1 - Image 2 Rockford Fosgate 1000 Watt Mono IPX6 Element Ready Amplifier - M5-1000X1 - Image 3 Rockford Fosgate 1000 Watt Mono IPX6 Element Ready Amplifier - M5-1000X1 - Image 4 Rockford Fosgate 1000 Watt Mono IPX6 Element Ready Amplifier - M5-1000X1 - Image 5
Since day one, we've spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate® is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound in a way the world has never felt before.

Rockford Fosgate amplifiers are known world-wide for producing more power than their ratings suggest. The M5 amplifiers are the first series based on new industry standard Dynamic Power ratings, bringing their conservative ratings to the forefront. Engineered from the ground up and purpose-built to deliver more output where you actually hear it, this is real dynamic power that performs not only on paper, but performance heard through the musical experience. You'll see two amplifier power ratings, the traditional Continuous Power output, and the new Dynamic Power output, both tested in accordance with the CTA-2006 specification. Consider Continuous Power as wattage developed on the test bench for comparison against other amplifiers in the same class, and Dynamic Power as real-world wattage when connected to a speaker load, listening to music. Either way you look at it, Rockford Fosgate is proving - once again - these amplifiers are powerful enough to drive any speaker or subwoofer you throw at them.

Features:
  • Element Ready design with integrated harness & panel seals
  • Play all day, easy to integrate, and keep music playing for extended lengths of time
  • PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
  • Constant Power provides instantaneous delivery of output over varying impedance loads
  • Quality & Performance tested using proprietary RATS (Rockford Automated Testing System)
  • Top mounted control panel with Element Ready smoked lens cover
  • OEM and aftermarket radio integration inputs
  • Low Impedance Stability
  • Discrete Surface Mount technology with 1% tight-tolerances for high efficiency & reduced cross-talk
  • Class-BD technology provides 75-80% efficiency over traditional class A/B designs
  • MESHA 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span
  • Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise
  • Balanced Differential Inputs eliminates noise picked up by signal cables
  • Remote-Out feature when using high level inputs
  • 2-Year Warranty
Specifications:
  • Number of Channels: 1
  • Total Power (Sum of Rated Power): 1000 Watts
  • Rated Power (RMS Continuous Power):
    • CTA-2006 Continuous Power Rating
    • ≤1.0% THD+N
    • 500 Watts x 1 @ 4Ω
    • 750 Watts x 1 @ 2Ω
    • 750 Watts x 1 @ 1Ω
  • Dynamic Power (PVC/PowerCube®):
    • CTA-2006 Dynamic Power Rating
    • 525 Watts x 1 @ 4Ω
    • 900 Watts x 1 @ 2Ω
    • 1000 Watts x 1 @ 1Ω
  • Frequency Response: 30Hz - 245Hz
  • Input Sensitivity: 150mVrms - 12Vrms
  • Circuit Topology Class: Class-BD
  • Efficiency (average): >80%
  • Total Harmonic Distortion (THD+Noise): <0.1% THD+N @ 1 Watt
  • Signal Input:
    • Low-Level: 2 RCA
    • High-Level: 4-Pin Molex
  • Tone Controls: Sub: 0-18dB @ 45Hz
  • Crossover Controls:
    • Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
    • Infrasonic: 30 Hz @ 12dB/Octave Butterworth
  • Remote Controls: No
  • Visual Indicators:
    • Power: Blue
    • Protect: Red
    • Input Clip: Red
    • Output Clip: Blue/Red
  • Power Wire Gauge: 8 AWG
  • Power Input Connector: Compression Terminal Block
    Replacement 1040-57997
  • Speaker Wire Gauge: 16 AWG
  • Speaker Output Connector: 4-Pin Molex
  • Cooling: Convection
  • Heatsink: Extruded Aluminum
  • Operating Voltage: 9 - 16 VDC
  • Recommended Fuse (not included): 120A
  • Average Current Draw (13.8V Music):
    • 4Ω: 23 A
    • 2Ω: 53 A
    • 1Ω: 64 A
  • Max. Current Draw (13.8V Sinewave):
    • 4Ω: 46 A
    • 2Ω: 75 A
    • 1Ω: 88 A
  • Dimensions (H x W x D): 1.7" x 4.25" x 8.41" (42.8 mm x 108 mm x 213 mm)
  • Does not include harnesses
  • Shipping Weight: 6 Lbs. (2.7 Kg.)

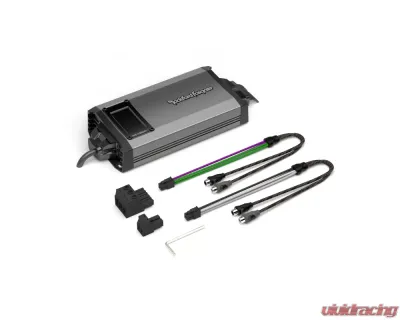

Included In The Box:
  • (1) Control Cover (1130-75511-01)
  • (1) Extension Harnesses (1130-75505-01)
  • (1) Pwr/Gnd/Rem Input (1040-61932-01)
  • (1) RCA Input Harness (1560-56458-02)
  • (1) Speaker Out Connector (1040-56811)
  • (1) Allen wrench
  • (1) RF sticker
  • (1) PRESET warning label
  • (1) Performance verification certificate




Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Since day one, Rockford Fosgate® spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound to drivers, boaters, motorcyclists and off-road enthusiasts.
Rockford Corporation offers a limited warranty on Rockford Fosgate products:

Length of Warranty
  • All Speakers – 1 Year
  • Signal Processors – 1 Year
  • PRIME Amplifiers – 1 Year
  • PUNCH Amplifiers – 1 Year
  • POWER Amplifiers – 2 Years
  • Any Factory Refurbished Product – 90 days (receipt required)
What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Warranty Outside the USA

The above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country.
