Select the year of your Ford F-100:
Ridetech Suspension System for Classic Ford F-100 and F-150 (Part #12312798)
Are you ready to upgrade your classic Ford F-100 or F-150? The Ridetech suspension system is designed specifically for these iconic trucks, offering a blend of modern performance and classic style. Say goodbye to the outdated twin I-beam front suspension and hello to a new era of handling and ride quality.
Key Features
- Complete Bolt-In System: This suspension system replaces the entire factory front crossmember with a robust, bolt-on design that enhances rigidity and strength.
- Superior Suspension Geometry: Engineered for optimal performance, this system outperforms traditional salvage-yard or street rod setups, ensuring an uncompromised ride experience.

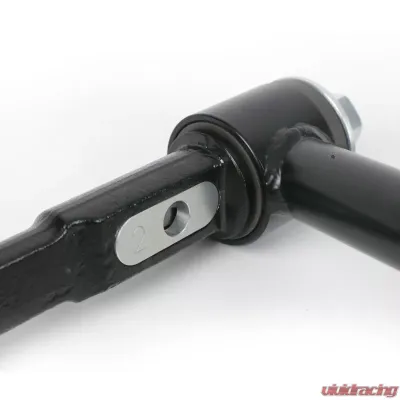

- Delrin Bushings: Both upper and lower control arms come equipped with high-quality Delrin bushings for a smooth, squeak-free ride that lasts.
- Adjustable Caster and Steering Stops: Customize your truck’s handling with adjustable caster options and steering stops for enhanced cornering capability.
- Compatibility with Modern Brake Systems: The system is designed to work with 2015-2023 Mustang brake systems, allowing for easy upgrades and improved stopping power.
- Weight Savings: The entire system reduces front-end weight by approximately 130 lbs, enhancing overall performance.
Specifications
- Fits 1965-1979 Ford F-100 and F-150 models
- Front width: 63.5 inches (wheel mount surface to wheel mount surface)
- Minimum wheel size: 17 inches (requires 18 inches for over 4.5 inches of backspacing)
- Motor mount options for Modular Ford, Ford FE, Small Block Ford, and Chevy LS/Small Block/Big Block
- Front sway bar: 1.5 inch x .250 wall for confident cornering
Suspension Options
Choose between Ridetech Coil-Overs or Shockwave air suspension for your classic Ford. Coil-Overs allow for adjustable ride height and easy spring swaps, while Shockwaves offer full adjustability over spring rate, load capacity, and ride height using air pressure. When fully deflated, the air suspension lowers the truck an additional 3 inches for an aggressive stance.
Customer Feedback
Users have praised the Ridetech system for its straightforward installation and impressive handling improvements. Many have noted how the enhanced geometry and modern components have transformed their driving experience, making their classic trucks feel more like contemporary vehicles.
Installation Made Easy
This suspension system is designed for DIY enthusiasts, requiring only basic hand tools and some elbow grease for installation. The kit includes all necessary grade 8 fasteners and is compatible with your factory frame, ensuring a seamless upgrade.
Conclusion
Upgrade your classic Ford F-100 or F-150 with the Ridetech suspension system (Part #12312798) and enjoy a smoother, more controlled ride. With its combination of strength, adjustability, and modern features, this system is a must-have for any classic truck enthusiast.
Other Part Numbers:
RideTech #rid12312798
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Make Vehicle | Model | Year |
---|---|---|
1965-1979 Ford F-100 |
F-100 | 1965-1979 |
1975-1979 Ford F-150 |
F-150 | 1975-1979 |
Ridetech manufactures exciting suspension systems that improve the handling and ride quality of your muscle car, truck, Corvette, or hot rod. From restorations and show cars, to high-speed autocross and track day cars, Ridetech offers a wide range of premium products including air suspension systems (air ride), coil-overs, shock absorbers, coil, and leaf springs, tubular control arms, roll bars, sway bars and much more.
Being a Hot Rodder is more than parts and problem solving, if you are one too, then you already know what we mean. It is a lifestyle and a passion, and it is built on sharing with friends. Being a Hot Rodder means you never enter any town as a stranger, you always have fellow enthusiast to sit down with and feel at home. This is why we spend so much of our time and resources on attending events, we want to meet you and hear about your story – even if you aren’t a customer, even if you buy someone else’s product…
Our approach to problem-solving, “can-do” perspective and relationship-driven business tactics have provided openings into many areas of business including agriculture, commercial transport, and defense projects as well… but at the core, we remain true to who we are – we are Hot Rodders.
TechnologyRideTech greatly improves the ride quality and handling performance of your late model muscle car. Choose coil-over suspension, air suspension or monotube shock absorber upgrades. RideTech’s engineering team starts from the ground up with impact forged aluminum shock absorbers bodies that are vastly superior, with respect to quality, to anything offered from the factory. As such, RideTech offers an unbeatable 1,000,001 mile warranty. Like high-end exotics and race cars, RideTech shocks are monotubes. The design provides precision rebound and compression control as well as enhanced reliability.
Coil-overs are popular upgrades for Mustangs Camaros and LX muscle. A Coilover is simply a shock surrounded by a coil spring; it places the shock and coil in one linear unit. A Coilover is a simple solution for most suspension designs, but can often be difficult to understand what you need. Fortunately, RideTech has your back with 21 years of suspension development.
Choosing a coil-over begins with two important decisions. The first is choosing the function of your vehicle. If you are building a performance car, then you will want a coil-over that has an adjustable shock. This allows the driver to tweak the “stiffness” of the suspension with a twist of a knob located on the shock. This adjustment knob controls the shock valving which controls the damping of the coil-over. This is a huge benefit for drivers who want to fine-tune their performance for the track, autocross, or the road.
The second most important decision in choosing a coil-over is finding your desired spring rate for the coil spring. Spring rate is the force required to compress a spring 1″ and is an important factor in how comfortable your car rides and your ride height. RideTech has worked out ideal spring rates for your vehicle and intended driving style.
Product LineRideTech offers a wide range of products for street rods and one-off custom cars with fabricated chassis including coil-over suspension, air suspension, and shocks. The world's greatest custom car builders choose RideTech suspension for exceptional handling and ride quality.
Complete Air Suspension, Coil-over Kits, and Conventional Streetgrip Suspension System for your classic muscle car and cruiser.
RideTech offers high-performance suspension components for all generations of Corvettes including coil-over conversions, shock upgrades, sway bars, and even MagneTuner, a plug N play controller for Magneride-equipped C7 Corvettes. A RideTech exclusive, our Track1 line of ultra-high-performance suspension components for C2/C3 Corvettes are proven race winners. The Track 1 line includes extreme duty IRS components as well as upgraded spindles with C7 Corvette bearing packs. Everything is designed to work with stock Corvette frames.
