RideTech 9-Inch Rear Axle Housing for 1970-1981 Camaro/Firebird

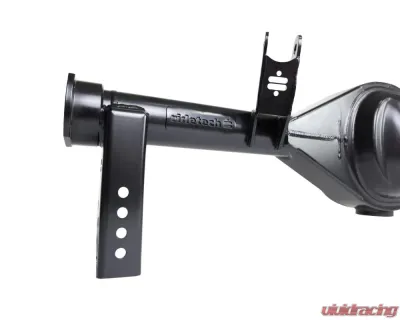

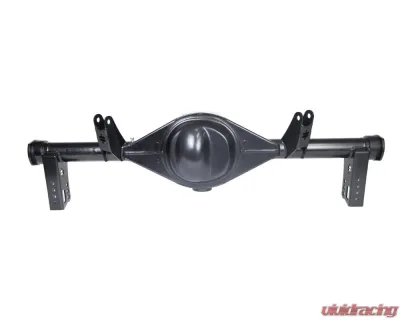

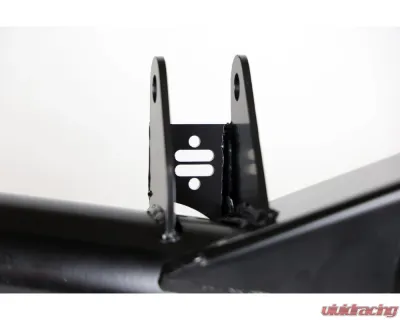

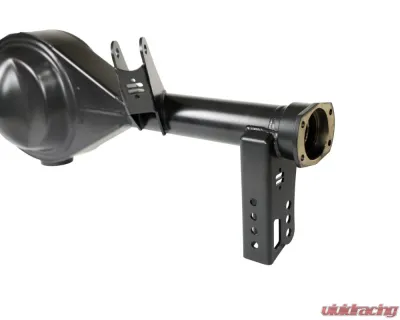

Upgrade your 1970-1981 Camaro or Firebird with the RideTech 9-Inch Rear Axle Housing, designed for seamless installation with the RideTech Bolt-On 4-Link system. This housing comes with pre-welded 4-Link bar brackets, making it a breeze to enhance your vehicle's performance.
Key Features

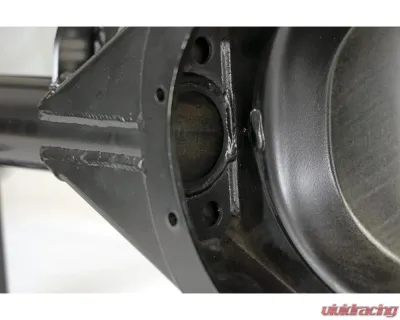

- Durable Construction: Features a webbed center section with internal gussets and 1/4-inch wall, 3-inch diameter tubes for exceptional strength.
- Billet Steel Flanges: New Style Big Bearing/Torino flanges provide a robust connection.
- Offset Design: Pinion is offset by 1/2 inch and the axle flange by 2 1/2 inches, accommodating various setups.
- Custom Widths: Available in stock and narrowed axle widths, perfect for mini-tubbed applications.

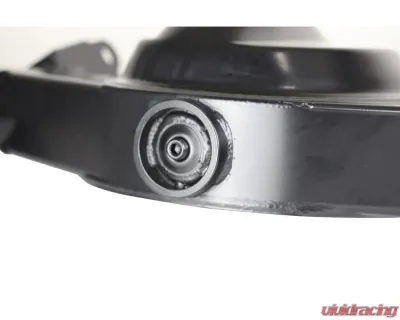

- Easy Maintenance: Comes with a drain plug and jack pad for hassle-free servicing.
- Quality Hardware: Equipped with Grade 8 T-bolt hardware for superior strength.
Specifications
- Axle Material: 31-spline axles made from heat-treated 1541H Alloy.
- Wheel Bolt Pattern: 5-inch x 4 3/4-inch.
- Wheel Studs: Grade 8, 1/2 inch-20 x 2 inch.
- Bearing Type: Timken SET20 bearings with retaining plates included.
- 3rd Member Features: Yukon nodular iron case, aluminum Daytona pinion support, 1350 billet steel yoke, and Eaton Trutrac differential for enhanced traction.
- Gear Ratios: Available in 3.50, 3.70, 3.89, or 4.11 ratios.
- Leak Prevention: LubeLocker gaskets ensure no leaks without the need for silicone, and they are reusable.
Customer Feedback
Users appreciate the straightforward installation process and the robust construction of the RideTech 9-inch rear axle housing. Many have noted how well it integrates with the RideTech 4-Link system, significantly improving handling and stability on the road. The added traction from the Eaton Trutrac differential has been a game-changer for those looking to maximize their vehicle's performance.
Fitment
This rear axle housing is specifically designed for the 2nd Gen Camaro and Firebird models from 1970 to 1981, ensuring a perfect fit with the new style RideTech 4-Link (Kit 11177187 – 2 piece cradle).
Available Finishes
Choose from a sleek black powder coat or a raw finish, providing options for vehicles at any stage of restoration.
Other Part Numbers:
RideTech #rid11179682
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Make Vehicle | Model | Year |
---|---|---|
1970-1981 Chevrolet Camaro |
Camaro | 1970-1981 |
1970-1981 Pontiac Firebird |
Firebird | 1970-1981 |
