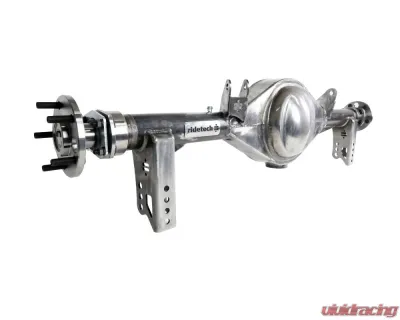

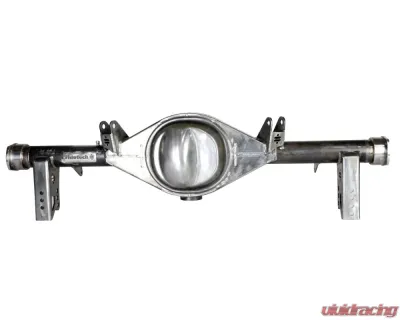

Ridetech 9-Inch Rear Axle Housings for 1967-1969 Camaro/Firebird & 1968-1974 Nova

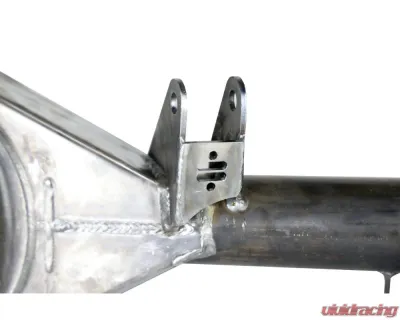

Upgrade your classic ride with the Ridetech 9-Inch Rear Axle Housings, specifically designed for the 1967-1969 Camaro/Firebird and 1968-1974 Nova. These rear axle housings make installing a Ridetech Bolt-On 4-Link system a breeze, featuring pre-welded 4-Link and sway bar brackets that ensure a straightforward bolt-in installation.
Key Features

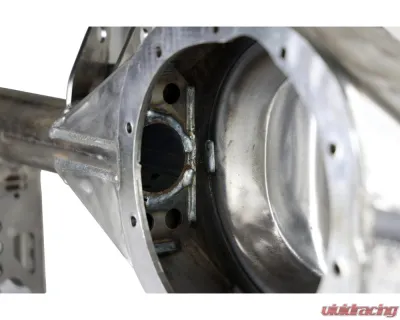

- Robust Construction: Crafted with a webbed center section and internal gussets, the 1/4 inch wall, 3-inch diameter tubes provide a solid foundation for transferring power to the pavement.
- Offset Design: The pinion is offset by 1/2 inch, while the axle flange is offset by 2 1/2 inches, accommodating various setups including mini-tubbed applications.
- Versatile Fitment: Available in both stock and narrowed axle widths to meet your specific needs.
- Durable Hardware: Comes with a drain plug, jack pad, and Grade 8 T-bolt hardware for maximum strength.
- Pre-installed Components: 3rd member studs are included, ready for your third member installation.
- Finish Options: Choose between a sleek black powder-coat or a raw finish, perfect for any stage of your vehicle's restoration.
Specifications

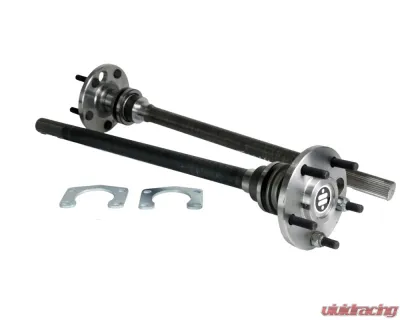

- Axle Type: 31-spline axles made from heat-treated 1541H Alloy
- Bolt Pattern: 5 inch x 4 3/4 inch
- Wheel Studs: Grade 8, 1/2 inch-20 x 2 inch
- Bearings: Timken SET20 bearings with retaining plates included
- 3rd Member Features: Yukon nodular iron case, aluminum Daytona pinion support, 1350 billet steel yoke, Timken bearings, and Eaton Trutrac differential unit
- Differential Type: Helical-gear style limited-slip for optimal traction
- Ratio Options: Available in 3.50, 3.70, 3.89, or 4.11
- Leak Prevention: LubeLocker gaskets ensure no leaks without the need for silicone and are reusable.
Customer Feedback
Many enthusiasts appreciate how the Ridetech 9-Inch Rear Axle Housings seamlessly integrate with their builds, providing a reliable and sturdy foundation for performance upgrades. Users have noted the ease of installation and the noticeable improvement in handling and traction, especially during spirited drives.
Other Part Numbers:
RideTech #rid11169680
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Make Vehicle | Model | Year |
---|---|---|
1973-1974 Buick Apollo |
Apollo | 1973-1974 |
1967-1969 Chevrolet Camaro |
Camaro | 1967-1969 |
1968 Chevrolet Chevy II |
Chevy II | 1968 |
1969-1974 Chevrolet Nova |
Nova | 1969-1974 |
1973-1974 Oldsmobile Omega |
Omega | 1973-1974 |
1967-1969 Pontiac Firebird |
Firebird | 1967-1969 |
1971-1974 Pontiac Ventura |
Ventura | 1971-1974 |
