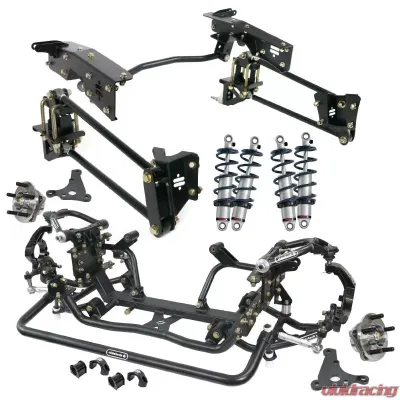

RideTech HQ Coil-Over System with Hub Spindles for 1973-1979 Ford F-100
Upgrade your classic 1973-1979 Ford F-100 with the RideTech HQ Coil-Over System, designed to enhance both ride quality and handling. This comprehensive suspension kit replaces the outdated twin I-beam setup with a modern, bolt-on crossmember that significantly improves rigidity and performance.
Key Features
- Complete Bolt-In System: Our innovative design allows for an easy installation using basic hand tools. The new front crossmember aligns with existing rivet holes, ensuring a secure fit.
- Superior Suspension Geometry: Say goodbye to the limitations of factory suspension. Our system offers optimized roll centers and anti-dive characteristics, providing a smooth and stable ride.
- Durable Components: Equipped with delrin bushings for long-lasting performance and minimal maintenance, the control arms are pre-installed with ball joints for hassle-free setup.
- Versatile Hub Spindles: The optional hub spindles enhance performance by utilizing late-model Mustang hubs and brake systems, compatible with 2015-2023 Mustang brakes for improved strength and reliability.
- Weight Reduction: This system saves approximately 130 lbs from the front of your truck, optimizing handling and performance.
Specifications
- Front Suspension Width: 63.5 inches (wheel mount surface to wheel mount surface)
- Compatible Wheel Size: Minimum 17 inches; fits 14 inches and larger wheels
- Brake Compatibility: 5 x 4.5 inch lug pattern with 14mm studs
- Adjustable Caster: 5-8 degrees for improved high-speed stability

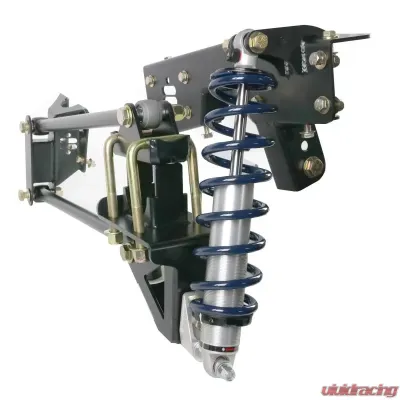

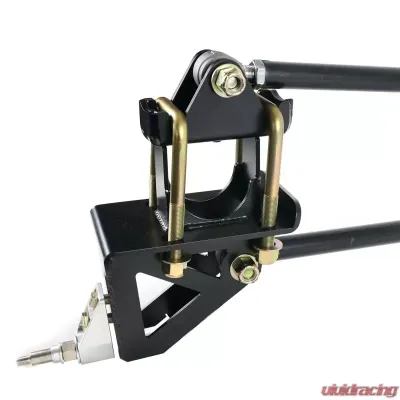

Rear 4-Link Suspension
- Removes factory leaf spring suspension for a complete parallel 4-link setup
- Optimized for traction and reduced wheel hop, enhancing overall driving experience
- Compatible with both short and long bed trucks
Customer Feedback
Users appreciate the ease of installation and the noticeable improvement in handling and ride comfort. Many have noted that the adjustable air suspension allows for a customizable ride height, making it perfect for both daily driving and show-stopping appearances.
Why Choose RideTech?
With a commitment to quality and performance, RideTech stands out in the aftermarket suspension market. Our systems are engineered to provide the best possible ride for classic Ford trucks, ensuring that you enjoy every mile on the road.
Other Part Numbers:
RideTech #rid12330203
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Make Vehicle | Model | Year |
---|---|---|
1973-1979 Ford F-100 |
F-100 | 1973-1979 |
1975-1979 Ford F-150 |
F-150 | 1975-1979 |
Ridetech manufactures exciting suspension systems that improve the handling and ride quality of your muscle car, truck, Corvette, or hot rod. From restorations and show cars, to high-speed autocross and track day cars, Ridetech offers a wide range of premium products including air suspension systems (air ride), coil-overs, shock absorbers, coil, and leaf springs, tubular control arms, roll bars, sway bars and much more.
Being a Hot Rodder is more than parts and problem solving, if you are one too, then you already know what we mean. It is a lifestyle and a passion, and it is built on sharing with friends. Being a Hot Rodder means you never enter any town as a stranger, you always have fellow enthusiast to sit down with and feel at home. This is why we spend so much of our time and resources on attending events, we want to meet you and hear about your story – even if you aren’t a customer, even if you buy someone else’s product…
Our approach to problem-solving, “can-do” perspective and relationship-driven business tactics have provided openings into many areas of business including agriculture, commercial transport, and defense projects as well… but at the core, we remain true to who we are – we are Hot Rodders.
TechnologyRideTech greatly improves the ride quality and handling performance of your late model muscle car. Choose coil-over suspension, air suspension or monotube shock absorber upgrades. RideTech’s engineering team starts from the ground up with impact forged aluminum shock absorbers bodies that are vastly superior, with respect to quality, to anything offered from the factory. As such, RideTech offers an unbeatable 1,000,001 mile warranty. Like high-end exotics and race cars, RideTech shocks are monotubes. The design provides precision rebound and compression control as well as enhanced reliability.
Coil-overs are popular upgrades for Mustangs Camaros and LX muscle. A Coilover is simply a shock surrounded by a coil spring; it places the shock and coil in one linear unit. A Coilover is a simple solution for most suspension designs, but can often be difficult to understand what you need. Fortunately, RideTech has your back with 21 years of suspension development.
Choosing a coil-over begins with two important decisions. The first is choosing the function of your vehicle. If you are building a performance car, then you will want a coil-over that has an adjustable shock. This allows the driver to tweak the “stiffness” of the suspension with a twist of a knob located on the shock. This adjustment knob controls the shock valving which controls the damping of the coil-over. This is a huge benefit for drivers who want to fine-tune their performance for the track, autocross, or the road.
The second most important decision in choosing a coil-over is finding your desired spring rate for the coil spring. Spring rate is the force required to compress a spring 1″ and is an important factor in how comfortable your car rides and your ride height. RideTech has worked out ideal spring rates for your vehicle and intended driving style.
Product LineRideTech offers a wide range of products for street rods and one-off custom cars with fabricated chassis including coil-over suspension, air suspension, and shocks. The world's greatest custom car builders choose RideTech suspension for exceptional handling and ride quality.
Complete Air Suspension, Coil-over Kits, and Conventional Streetgrip Suspension System for your classic muscle car and cruiser.
RideTech offers high-performance suspension components for all generations of Corvettes including coil-over conversions, shock upgrades, sway bars, and even MagneTuner, a plug N play controller for Magneride-equipped C7 Corvettes. A RideTech exclusive, our Track1 line of ultra-high-performance suspension components for C2/C3 Corvettes are proven race winners. The Track 1 line includes extreme duty IRS components as well as upgraded spindles with C7 Corvette bearing packs. Everything is designed to work with stock Corvette frames.
