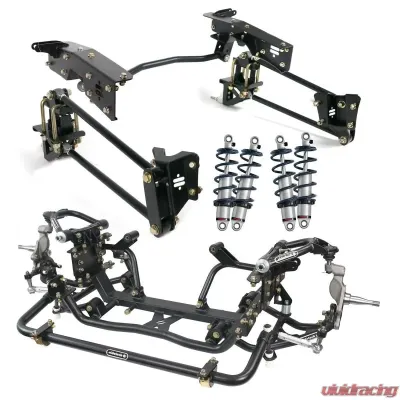

RideTech HQ Coil-Over System for 1973-1979 Ford F-100
Upgrade your classic Ford F-100's ride and handling with the RideTech HQ Coil-Over System, designed specifically for 1973-1979 models. This comprehensive suspension package features a front coil-over system and a bolt-on 4-link setup for the rear, making it a perfect choice for enthusiasts looking to enhance their truck's performance while keeping the factory frame intact.
Key Features
- Front Suspension: Replace the outdated twin I-beam suspension with a robust bolt-in cradle that significantly strengthens the front end and improves handling.
- Superior Geometry: The design ensures optimal suspension geometry, providing better roll centers and anti-dive characteristics compared to other aftermarket options.
- Adjustable Components: Equipped with Delrin bushings for smooth operation, adjustable steering stops, and caster options to tailor your truck's setup.
- Compatibility: Uses the popular Fox Mustang-style steering rack and is designed for 17-inch wheels or larger, accommodating a variety of brake kits, including Wilwood.
Rear Suspension
- 4-Link Design: This system replaces the factory leaf spring suspension, allowing for a lower stance while maintaining full bed functionality.
- Enhanced Traction: The optimized roll center and anti-squat design provide superior traction and eliminate wheel hop.
- Easy Installation: The bolt-in C-notch enhances frame strength and requires minimal modifications for 1973-1979 models.
Coil-Over System
The RideTech coil-over system allows for adjustable ride height, lowering your truck by approximately 5 inches. With 24-position rebound adjustment, you can fine-tune the shocks to suit your driving style. The advanced Fox Factory shock technology features large pistons and durable aluminum bodies, ensuring a smooth ride whether you're on the street or the track.
Specifications
- Front Width: 63.5 inches (mount surface to mount surface)
- Compatible with 5 x 4.5 inch lug pattern
- Weight Savings: Approximately 130 lbs from the front suspension
- Rear Weight Reduction: 50 lbs
- Shock Technology: Fox Factory monotube-gas-pressure design
Customer Feedback
Users have praised the RideTech HQ Coil-Over System for its straightforward installation and impressive handling improvements. Many report a noticeable difference in ride quality and cornering stability, making their classic F-100 feel modern and responsive. The adjustable features have also been highlighted, allowing drivers to customize their setup for both daily driving and spirited outings.
Fitment
This suspension system is engineered specifically for 1973-1979 Ford F-100 models, ensuring a perfect fit and seamless integration with your truck's existing structure.
Other Part Numbers:
RideTech #rid12330201
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Make Vehicle | Model | Year |
---|---|---|
1973-1979 Ford F-100 |
F-100 | 1973-1979 |
1975-1979 Ford F-150 |
F-150 | 1975-1979 |
Ridetech manufactures exciting suspension systems that improve the handling and ride quality of your muscle car, truck, Corvette, or hot rod. From restorations and show cars, to high-speed autocross and track day cars, Ridetech offers a wide range of premium products including air suspension systems (air ride), coil-overs, shock absorbers, coil, and leaf springs, tubular control arms, roll bars, sway bars and much more.
Being a Hot Rodder is more than parts and problem solving, if you are one too, then you already know what we mean. It is a lifestyle and a passion, and it is built on sharing with friends. Being a Hot Rodder means you never enter any town as a stranger, you always have fellow enthusiast to sit down with and feel at home. This is why we spend so much of our time and resources on attending events, we want to meet you and hear about your story – even if you aren’t a customer, even if you buy someone else’s product…
Our approach to problem-solving, “can-do” perspective and relationship-driven business tactics have provided openings into many areas of business including agriculture, commercial transport, and defense projects as well… but at the core, we remain true to who we are – we are Hot Rodders.
TechnologyRideTech greatly improves the ride quality and handling performance of your late model muscle car. Choose coil-over suspension, air suspension or monotube shock absorber upgrades. RideTech’s engineering team starts from the ground up with impact forged aluminum shock absorbers bodies that are vastly superior, with respect to quality, to anything offered from the factory. As such, RideTech offers an unbeatable 1,000,001 mile warranty. Like high-end exotics and race cars, RideTech shocks are monotubes. The design provides precision rebound and compression control as well as enhanced reliability.
Coil-overs are popular upgrades for Mustangs Camaros and LX muscle. A Coilover is simply a shock surrounded by a coil spring; it places the shock and coil in one linear unit. A Coilover is a simple solution for most suspension designs, but can often be difficult to understand what you need. Fortunately, RideTech has your back with 21 years of suspension development.
Choosing a coil-over begins with two important decisions. The first is choosing the function of your vehicle. If you are building a performance car, then you will want a coil-over that has an adjustable shock. This allows the driver to tweak the “stiffness” of the suspension with a twist of a knob located on the shock. This adjustment knob controls the shock valving which controls the damping of the coil-over. This is a huge benefit for drivers who want to fine-tune their performance for the track, autocross, or the road.
The second most important decision in choosing a coil-over is finding your desired spring rate for the coil spring. Spring rate is the force required to compress a spring 1″ and is an important factor in how comfortable your car rides and your ride height. RideTech has worked out ideal spring rates for your vehicle and intended driving style.
Product LineRideTech offers a wide range of products for street rods and one-off custom cars with fabricated chassis including coil-over suspension, air suspension, and shocks. The world's greatest custom car builders choose RideTech suspension for exceptional handling and ride quality.
Complete Air Suspension, Coil-over Kits, and Conventional Streetgrip Suspension System for your classic muscle car and cruiser.
RideTech offers high-performance suspension components for all generations of Corvettes including coil-over conversions, shock upgrades, sway bars, and even MagneTuner, a plug N play controller for Magneride-equipped C7 Corvettes. A RideTech exclusive, our Track1 line of ultra-high-performance suspension components for C2/C3 Corvettes are proven race winners. The Track 1 line includes extreme duty IRS components as well as upgraded spindles with C7 Corvette bearing packs. Everything is designed to work with stock Corvette frames.
