Radium Engineering PCV Fluid Lock Catch Can Kit for Honda S2000 (2006-2009)

If you own a 2006-2009 Honda S2000, you're in for a treat with the Radium Engineering PCV Fluid Lock Catch Can Kit. This kit has been specially crafted to fit perfectly in your ride, ensuring that you get the best performance out of your engine. Just a quick note: if you have a 2000-2005 LHD model, this kit won’t work unless you remove the cruise control module. In that case, check out our dedicated 00-05 Honda S2000 LHD Catch Can Kit.

Why You Need an Oil Catch Can

An oil catch can isn’t just an accessory; it’s a crucial component for maintaining your engine's health, especially if you enjoy spirited driving. By capturing crankcase blow-by, this catch can helps prevent excess oil from circulating back into the air intake. This means cleaner air for your engine and improved performance overall.

Features of the Radium Catch Can

Radium Engineering has thought of everything with this catch can. It features:

• Large 10AN ORB ports for efficient flow
• A 4AN ORB drain port for easy maintenance
• Two-step oil separation baffling to keep things clean
• An O-ring sealed dipstick for accurate readings

Catch Can Kit Details

The 20-0098-FL PCV Catch Can Kit comes equipped with two mounting brackets, although you’ll only need one based on whether you're using the crankcase vent kit. This catch can seamlessly integrates with the 3/8" PCV (positive crankcase ventilation) valve. When the intake manifold pressure is at or above atmospheric pressure, the PCV "check" valve closes, preventing flow. However, during idling, low-load cruising, and deceleration, the PCV hose experiences "metered" vacuum, effectively drawing out unwanted crankcase vapors and oil sludge.

What’s great is that these catch cans are pressure sealed, making them ideal for boosted applications, so connecting to the intake manifold is not an issue.

Key Features

• Boosts octane levels and enhances engine performance with cleaner inlet air
• Prevents oil buildup in critical engine components like the intake and intercooler
• Excessive oil collection can signal potential engine damage
• Helps lower hydrocarbon emissions
• Capacity: 7 fluid ounces
• Height (without fittings): 5 inches
• Outside Diameter: 2.45 inches

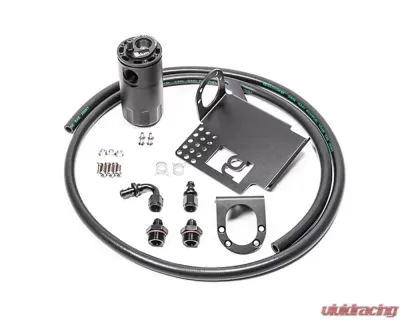

What’s Included in the 20-0098-FL PCV Kit

• Radium billet oil catch can with integrated condenser and dipstick
• Custom laser-cut powder-coated mounting bracket for S2000
• Universal laser-cut powder-coated mounting bracket
• Anodized aluminum -6AN hose ends
• Anodized 6AN adapter fittings
• Stainless steel mounting hardware
• OEM spring hose clamps
• 3/8" PCV rubber hose

Fitment

• Honda S2000 All RHD Models
• Honda S2000 LHD Models (2006-2009)

Get ready to take your Honda S2000 to the next level with the Radium Engineering PCV Fluid Lock Catch Can Kit. Your engine will thank you!
