Radium Engineering Fuel Surge Tank With Walbro F90000267/274 E85 Pump Not Included - 20-0960
Radium Engineering Fuel Surge Tank With Walbro F90000267/274 E85 Pump Not Included - 20-0960 - Image 3 Radium Engineering Fuel Surge Tank With Walbro F90000267/274 E85 Pump Not Included - 20-0960 - Image 2 Radium Engineering Fuel Surge Tank With Walbro F90000267/274 E85 Pump Not Included - 20-0960 - Image 3

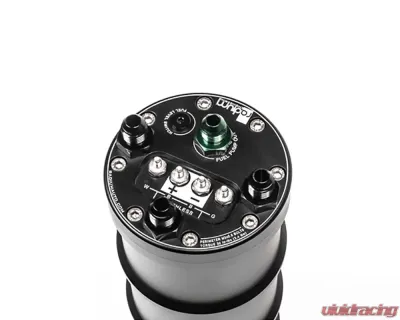

Radium Engineering Fuel Surge Tank

If you're looking to keep your engine running smoothly, the Radium Engineering Fuel Surge Tank is a fantastic solution, especially for vehicles that struggle with fuel starvation due to inadequate tank baffling. This surge tank offers a simple way to upgrade your standard fuel system without the hassle of modifying your stock fuel tank or pump. It's particularly beneficial for those planning significant power upgrades, like forced induction setups.

How It Works

The surge tank acts as a buffer, ensuring that the pump always has a steady supply of fuel. It works in harmony with your main fuel tank's pump and the fuel returning from the fuel pressure regulator. Any excess fuel in the surge tank is sent back to the main tank, keeping everything in balance.

Top-Notch Construction

Crafted from extruded and machined 6061 aluminum, this 1.5-liter canister is built to last. The stainless electrical studs are designed to handle high current demands that you won’t find in compact multi-pin bulkhead connectors. Plus, all connections are hermetically sealed, making them resistant to both standard and exotic fuels. Non-conductive anodized aluminum acorn nuts help prevent accidental short circuits, and the in-tank wiring is insulated with high-quality, chemically resistant ETFE. For optimal performance, we recommend using relay kits like the 17-0031 to drive your new internal fuel pump.

Features

  • Extruded and Machined 6061 Aluminum 1.5 Liter Canister
  • Removable O-Ring Sealed Billet 6061 Aluminum Caps
  • Anodized and Laser Engraved
  • Stainless Steel Hardware
  • Factory Pressure Tested Before Shipment
  • Lifetime Warranty on all Radium components

Compatible Fuel Pumps

  • Walbro F90000267
  • Walbro F90000274
  • Walbro F90000285
  • Walbro F90000295
  • Walbro GSS342
  • AEM 50-1000
  • AEM 50-1200
  • AEM 50-1220
  • Bosch BR540
  • Deatschwerks DW400
  • Deatschwerks DW440 (brushless)
  • Protec 11928 (brushless)
  • Fuelab 49614 (brushless)
  • Ti Automotive E5LM (brushless)

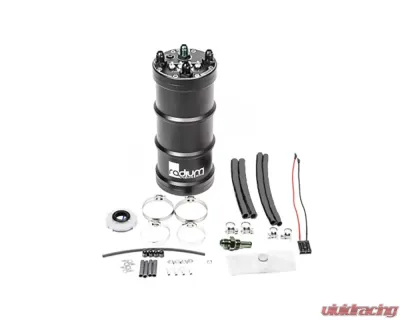

What's Included

  • (1) Extruded anodized aluminum 1.5 liter canister
  • (1) Set of removable O-ring sealed billet aluminum caps
  • (1) Set of 6AN O-ring fittings
  • (1) Set of corrosive resistant stainless steel hardware
  • (1) Set of stainless clamps for 39-45mm diameter pumps
  • Plug and Play pump wiring
  • (1) Set of pre fuel pump sock filters

Installation Instructions

Fitment

  • Universal

Important Notes

  • This kit does not include a fuel pump.
  • Please review options before placing your order.
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Radium Engineering Banner

Who is Radium Engineering?

Radium Engineering is a company that was founded in 2010. The company specializes in designing and producing some of the best aftermarket products in the market. They have produced parts used by various racers and motorsport enthusiasts worldwide. Today, they have established a name for themselves and have become a brand synonymous with performance.

Quality in Every Product

All of their products are done in house, from research and development, design and manufacturing. They use the latest computer simulation and modeling tools that allow them to create an accurate and precise model. After all is done, they subject their products to an extensive testing procedure to ensure that it is safe to use and performs the way it is designed to.

Not Your Ordinary Stock Parts

The company focuses on manufacturing race-oriented parts and accessories such as surge tank lines and PCV oil catch can systems. They also offer fuel fittings, fuel manifolds, pumps, and fuel regulators designed for high performance applications. All their parts are made out of high quality materials that can withstand extreme forces.

Purchase Radium Engineering Products At Vivid Racing

If you are in search of a high quality fuel system component for your vehicle, then Radium Engineering is the brand for you. Specifically made for high-performance applications, they are the trusted brand of top racers from different racing disciplines everywhere. To know more about Radium Engineering, visit Vivid Racing and check out their list of products that fit your specific needs.




Warranty

All Radium Engineering brand products are subject to a 1 Year Limited Warranty from the date of original purchase. If a product fails, it will be repaired or replaced at Radium Engineering's option when it has been determined by Radium Engineering to have failed due to defects in materials or workmanship. Warranty claims must be made by the original purchaser. If the purchase was made from a retailer other than radiumauto.com, please contact the place of purchase for further assistance.

This warranty is limited to repair or replacement of the merchandise only and shall not, in no event, exceed the original purchase price. Radium Engineering will not be held responsible for secondary or consequential damages or costs (including labor, towing, etc.) incurred due to failure of this product. Standard ground shipping is used for all warranty transactions. Expedited shipping is available, but the cost difference must be paid by the end user in advance of the shipment.

Warranty claims must ship pre-paid to Radium Engineering for review. Claims must include the failed part(s), RMA number, and original proof of purchase. If the claim is missing any of these items, it may be rejected and returned to sender. Product must be received by Radium Engineering within 14 days of RMA's issue date. Please note that before Radium Engineering can issue an RMA for any product, it is first necessary for the installer or end user to contact info@radiumauto.com to discuss the problem. Most issues can be resolved via email. Under no circumstances should a product be returned or a RMA requested before the above process transpires.

This warranty applies to the original purchaser only and is non-transferable. Improper use, installation, modification, abuse, or unauthorized repairs or alterations voids this warranty. Credit for defective products will be issued pending inspection by Radium Engineering. This warranty does not extend to third party products often used in Radium Engineering products, such as fuel pumps, turbochargers, or any other non-Radium Engineering brand products.
