Radium Engineering Fluid Lock Dual Catch Can Kit for Subaru EJ Turbo (2002-2021)

If you're looking to keep your Subaru's engine in tip-top shape, the Radium Engineering Fluid Lock Dual Catch Can Kit is a must-have. It's designed specifically for Subaru EJ Turbo models from 2002 to 2021, offering a reliable way to protect your engine from crankcase blow-by oil, especially during those spirited drives.

Why You Need a Catch Can

During aggressive driving, excess oil-laden air can circulate back into your air intake. This can lead to a build-up of oil inside the induction system, intercooler, and intake manifold, ultimately degrading your vehicle's performance. The Radium Engineering catch cans are built with large 10AN ORB ports, a 4AN ORB drain port, and a two-step oil separation baffling system, plus an O-ring sealed dipstick for easy monitoring.

How It Works

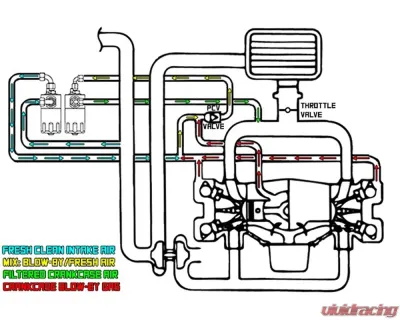

This kit features two independent catch cans, each connected to different parts of the PCV system. They maintain the factory plumbing strategy without venting to the atmosphere, creating a closed-loop system. This setup routes clean, filtered air back into the engine, promoting negative crankcase pressure for optimal performance while keeping unwanted oil vapors out of the cabin.

Installation Details

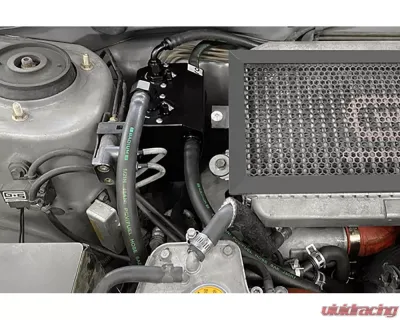

It's important to note that this kit is not compatible with right-hand drive (RHD) vehicles, as it installs on the right-hand strut tower. The low-profile design extends just 4.8 inches (122mm) off the strut tower, ensuring a sleek fit under the hood.

Maintenance Made Easy

We've included an aluminum heat shield to protect against radiant exhaust temperatures, ensuring the oil condensation process runs smoothly. Servicing the catch cans is straightforward—simply remove the four heat shield bolts, and you're good to go. Just remember, regular maintenance is key! The frequency of emptying the catch cans will depend on how much sludge accumulates, which can vary from vehicle to vehicle. If you're looking for a maintenance-free option, you might want to check out the Radium AOS-R.

Additional Notes

For Subaru models from 2002 to 2005 that have a cable-actuated throttle body, our Cruise Control Relocation Bracket is required. If you own an RHD vehicle, consider our Universal Dual Catch Cans for custom mounting and plumbing.

Key Features

• Effectively raises the octane
• Cleaner air enhances engine performance
• Prevents oil sludge from forming in the intake system
• Bolt-in installation for easy setup
• Simple servicing with dipsticks
• Capacity: 8oz each

Fitment

• Subaru EJ Turbo 2002-2021
