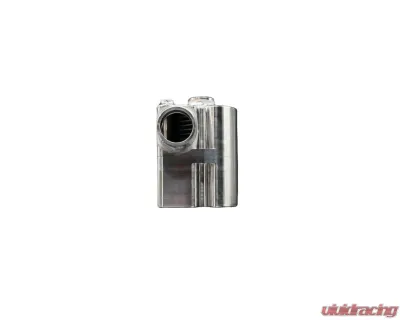

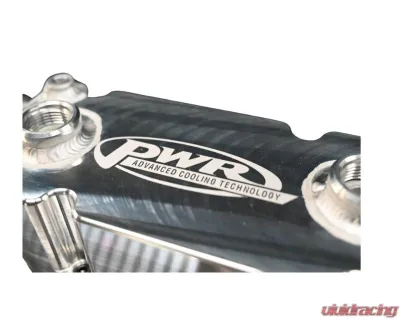

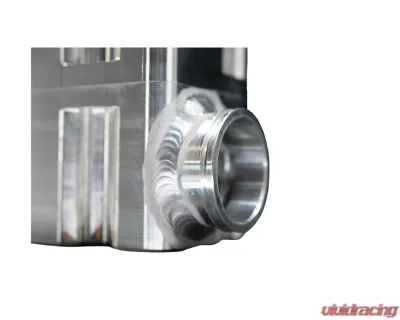

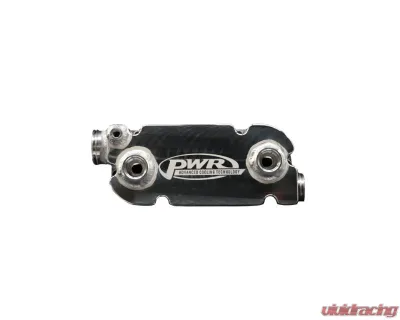

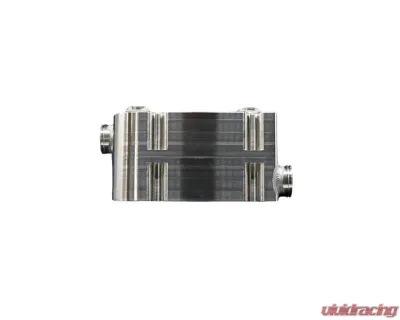

PWR 65mm Universal Water To Oil Heat Exchanger 12x4.5x 6 Billet -28 Wiggins Water/-12 AN Port Oil Inlet & Outlet - CR-UC-RQH003C
PWR 65mm Universal Water To Oil Heat Exchanger 12x4.5x 6 Billet -28 Wiggins Water/-12 AN Port Oil Inlet & Outlet - CR-UC-RQH003C - Image 6 PWR 65mm Universal Water To Oil Heat Exchanger 12x4.5x 6 Billet -28 Wiggins Water/-12 AN Port Oil Inlet & Outlet - CR-UC-RQH003C - Image 2 PWR 65mm Universal Water To Oil Heat Exchanger 12x4.5x 6 Billet -28 Wiggins Water/-12 AN Port Oil Inlet & Outlet - CR-UC-RQH003C - Image 3 PWR 65mm Universal Water To Oil Heat Exchanger 12x4.5x 6 Billet -28 Wiggins Water/-12 AN Port Oil Inlet & Outlet - CR-UC-RQH003C - Image 4 PWR 65mm Universal Water To Oil Heat Exchanger 12x4.5x 6 Billet -28 Wiggins Water/-12 AN Port Oil Inlet & Outlet - CR-UC-RQH003C - Image 5 PWR 65mm Universal Water To Oil Heat Exchanger 12x4.5x 6 Billet -28 Wiggins Water/-12 AN Port Oil Inlet & Outlet - CR-UC-RQH003C - Image 6
The PWR Water to Oil Heat Exchangers are very robust all aluminum construction units featuring complex tube & fin internal cores ideal when there is minimal space for a conventional oil cooler. Plumbed in between the cold side outlet of the radiator and inlet of the water pump, thick-wall extruded tubes carry the coolant flow, whilst the multiple pass baffle configuration within the shell guides the oil flow through a fine, yet robust turbulation fin in-between each tube. This innovative design provides maximum liquid to surface contact on both the coolant and oil passages, yet proves to be a high flowing unit to ensure minimal pressure drops in each of the fluid systems. The result is a very reliable high heat transfer oil cooler in a low pressure drop configuration made in the USA from the finest materials and crafted by our passionate fabricators.

Features:
  • Billet construction
  • Universal fitment for easy installation
  • High heat transfer
  • Low pressure drop
  • 1/8 NPT port for oil temp sensor
  • Dash-12 ORB female ports
  • Dash-28 Wiggins fittings for coolant
  • Start of the art controlled atmosphere brazing process
  • Pressure tested and guaranteed
  • 1 Year manufactured warranty
  • 100% USA made


Specifications:
  • Radiator Style:
  • Number of Passes: Single
  • Inlet Location: na
  • Inlet Size: -28 Wiggins Water / AN -12 Port Oil
  • Outlet Location: na
  • Outlet Size: -28 Wiggins Water / AN -12 Port Oil
  • Tube Size: 65mm


  • Fitments:
    • Universal
