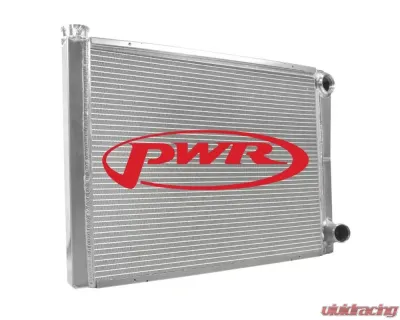

Universal Radiator, Double Pass, Open, 22" x 19", Low Outlet
PWR universal radiators are excellent, general-purpose radiators capable of cooling many applications depending on the vehicle and use. Our universal radiators come standard with a 42mm thick core utilizing rolled dimpled tubes with our engineered V-shape fin. These radiators are available in either a single or double pass configuration as well as being an open or closed system. The inlet comes with our -20AN universal port bung so you can select the inlet size of your choice while the outlet comes standard with a 1-3/4" hose barb fitting available in a high or low mounting position. Mounting provisions for SPAL fans and aluminum shrouds are included onto the radiators.
Upper Fittings and Radiator Cap Sold Separately.
Specifications:
PWR universal radiators are excellent, general-purpose radiators capable of cooling many applications depending on the vehicle and use. Our universal radiators come standard with a 42mm thick core utilizing rolled dimpled tubes with our engineered V-shape fin. These radiators are available in either a single or double pass configuration as well as being an open or closed system. The inlet comes with our -20AN universal port bung so you can select the inlet size of your choice while the outlet comes standard with a 1-3/4" hose barb fitting available in a high or low mounting position. Mounting provisions for SPAL fans and aluminum shrouds are included onto the radiators.
Upper Fittings and Radiator Cap Sold Separately.
Specifications:
- Radiator Style: Crossflow
- Number of Passes: Double
- Inlet Location: Upper Drivers Side
- Inlet Size: -20AN Universal Port Bung
- Outlet Location: Lower Passenger Side
- Outlet Size: 1.75 Inch
- Overall Dimensions: 22" x 7.99" x 19.54"
- Core Thickness: 55 mm
