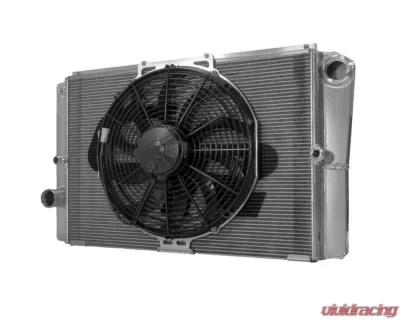

PWR 19mm Oil Cooler/27mm 28x16.5" Denso Closed/14" Spal Fan Late Model Radiator Module Ford - 848-28166
The Late Model Stacked Package is our Latest solution for Pavement Late Model Racing. This package is available in two heights. 16.5" tall and 18.5" tall. Stacked directly behind the radiator is a high performing 19mm thick oil cooler core, which decreases oil temperatures and helps to lower water temperatures. The tall version comes with a 16" SPAL Fan while the shorter version is paired up with a 14" SPAL Fan. This design is based around the same approach we use for the NASCAR applications. For demanding applications and increased boiling points, this package can be used with our PWR Pressurized Water Kit.

Features:
  • 28" x 16.5" Ford Style
  • 21lb dry weight
  • 14" SPAL High-Performance Fan
  • -12 AN Male Inlet/Outlet Oil Cooler Fittings
  • -20 AN Universal Port Inlet-Radiator
  • 1-3/4" Standard Outlet-Radiator
  • -4AN ORB Fitting-Radiator
  • Closed System
Specifications:
  • Radiator Style: Crossflow
  • Number of Passes: Single
  • Inlet Location: Upper Drivers Side
  • Inlet Size: Universal
  • Outlet Location: Lower Passenger Side
  • Outlet Size: 1.75 Inch
  • Tube Size: 27 mm
  • Overall Height / Core Height: 17.25 in / 16.36 in
  • Overall Width / Core Width: 28.61 in / 23.57 in
  • Overall Depth / Core Depth: 4.75 in / 1.75 in
  • Fan CFM: 1864
