  See all Fuel Components products

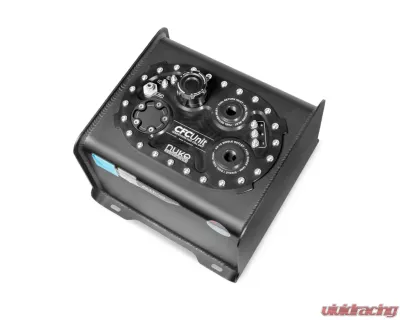

Nuke Performance AluCell Fuel Cell 5.3 Gallon/20L with CFC Unit Low Profile - 150-07-021

Nuke Performance AluCell Fuel Cell 20L (Part #: 150-07-021)

The Nuke Performance AluCell Fuel Cell is designed for automotive enthusiasts seeking a lightweight and efficient fuel storage solution without the need for FIA approval. This 20-liter (5.28-gallon) fuel cell integrates seamlessly with the Nuke Performance CFC Unit, providing a compact and effective system for both carbureted and fuel-injected setups.

Key Features

  • Capacity: 20 liters (5.28 gallons)
  • Material: High-quality aluminum construction
  • Compatible with all fuel types, including gasoline, methanol, ethanol, and E85
  • Integrated 2.0-liter surge tank functionality eliminates the need for an external surge tank
  • Single oversized AN-10 ORB outlet for maximum fuel flow
  • Low-profile design with a fuel filler cap featuring an integrated roll-over valve
  • Integrated mounting brackets for secure installation
  • Compatible with single or dual high-pressure fuel pumps

Included Components

  • 1 x AluCell Aluminum fuel cell (20-liter)
  • 1 x Nuke Performance CFC Unit - low profile version
  • 2 x 1/4" BSPP to Male barb 8mm hose fittings
  • 1 x 1/4" BSPP plug (for single high-pressure fuel pump use)
  • 2 x 39mm inserts for high-pressure fuel pump bracket
  • 1 x Viton gasket for 24 bolt pattern fuel cells (compatible with alcoholic fuels)
  • 1 x Low profile filler cap (remote fill neck available as an accessory)
  • 1 x Dual billet fuel pump bracket and adjustable pickup pump mount
  • 1 x AN-8 (3/4 UNF) to AN-6 Male vent safety valve
  • 1 x FLS spacer for fuel level senders with non-symmetrical bolt patterns
  • 24 x 1/4-28 UNF x 1 bolts with nylon washers

Specifications

  • Dimensions: Length 330mm (12.99"), Depth 330mm (12.99"), Height 260mm (10.23")
  • Weight: 6830g (15.05 lbs), including CFC Unit
  • Motorsports use: Yes
  • Homologation: No
  • EAN: 7340209500349

Nuke Performance CFC Unit Specifications

  • Part #: 150-05-201
  • Minimum mounting depth: 219mm (8.62")
  • Mounting bolt pattern: 6x10" (24-bolt pattern)
  • High-pressure fuel pump connectors: 3 (max 125 ampere each)
  • Pickup fuel pump connectors: 2 (max 125 ampere each)
  • Dimensions: Length 295mm (13.74"), Width 194mm (9.88")
  • Weight: 1934g (68.21 oz)
  • Internal surge tank volume: Approximately 2.0 liters (0.53 gallons)
  • Outlet port: AN-10 ORB thread
  • Return port: AN-8 ORB thread
  • Vent valve: AN-8 (3/4 UNF) thread
  • For motorsports use: Yes

The Nuke Performance AluCell Fuel Cell 20L (Part #: 150-07-021) is an excellent choice for those looking to enhance their fuel system while maintaining a lightweight profile. With its robust design and integrated surge tank, this fuel cell is optimized for performance and reliability in motorsports applications.





Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Nuke Performance Banner

Who Is Nuke Performance?

Nuke Performance is a Swedish company that started back in 2004. The company specializes in producing high-performance fuel delivery system components for the automotive industry. Today, they have become one of the leading experts in their field and are sought after by many enthusiasts and professional racers.

Passion-Driven Company

Its passion and commitment drive the company to develop the best performance parts in the market. They use real-world experience to create innovative parts that satisfy the demands of their customers.

Wide Range Of High-Performance Products

Nuke performance offers a variety of products from fuel rails, surge tanks, fuel filters, blow-off valves, air jacks, hose fittings, oil pans, oil catch cans, and more. These components are designed to handle high horsepower vehicles; hence, many champion racers from different motorsport disciplines used it.

Working Close With Professional Racers

Each product is carefully designed by different professional racers. It allows them to gather direct feedback from the drivers themselves, which helps in developing the best product in the market.

Purchase Nuke Performance Products At Vivid Racing

If you are in the market for high-quality performance parts for your vehicle, then Nuke Performance is the brand for you. With a customer base reaching different parts of the world from Europe, Asia, Australia, and America, they are a brand that people trust. To know more about Nuke Performance, visit Vivid Racing and check out their list of products that fit your specific needs.

In the case of a material defect in the product on our behalf, you have the right to choose a similar product in exchange, to withdraw from the contract or to request a price reduction within 3 months from the purchase date. All requests are to be confirmed by written correspondence with us. It is up to you as a customer to control the products either upon delivery and to notify us within the time period. Failure to do so will result in a loss of your rights.
