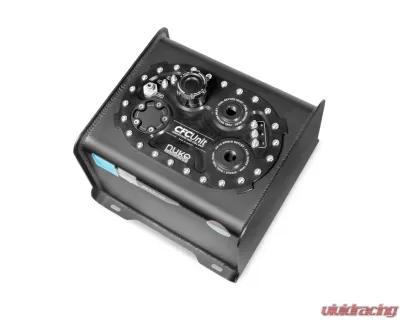

Nuke Performance AluCell Fuel Cell 5.3 Gallon/20L with CFC Unit Brushless Version - 150-07-121

Nuke Performance AluCell Fuel Cell with CFC Unit - Part #150-07-121

The Nuke Performance AluCell Fuel Cell, part number 150-07-121, is engineered for automotive enthusiasts seeking a lightweight and efficient fuel storage solution. This 20-liter (5.3-gallon) fuel cell integrates seamlessly with the Nuke Performance CFC Unit, providing a compact and effective system for both carbureted and fuel-injected applications.

Key Features

  • Capacity: 20 liters (5.3 gallons)
  • Material: High-quality aluminum, compatible with gasoline, methanol, ethanol, and E85
  • Integrated 2.0-liter surge tank function eliminates the need for an external surge tank
  • Single oversized AN-10 ORB outlet for optimal fuel flow
  • Mounting: Integrated brackets for secure installation
  • Low-profile fuel filler cap with an integrated roll-over valve for safety
  • Compatible with single or dual high-pressure fuel pumps

Installation and Compatibility

The AluCell Fuel Cell is designed for motorsport applications and features a minimum mounting depth of 260mm (10.23"). The CFC Unit provides multiple high-pressure pump connections, supporting up to two brushed fuel pumps. This setup is ideal for those looking to enhance their fuel delivery system without the complexity of external components.

Specifications

  • AluCell Dimensions:
    • Length: 330mm (12.99")
    • Depth: 330mm (12.99")
    • Height: 260mm (10.23")
    • Weight: 6830g (15.05 lbs), including CFC Unit
  • CFC Unit Specifications:
    • Length: 295mm (13.74")
    • Width: 194mm (9.88")
    • Weight: 1934g (68.21 oz)
    • Maximum pickup pipe length: 90mm (3.54") / 95mm (3.74")
    • Internal surge tank volume: Approximately 2.0 liters (0.53 gallons)
    • Outlet port thread: AN-10 ORB
    • Return port thread: AN-8 ORB
    • Vent valve thread: AN-8 (3/4 UNF)

Included Components

  • 1 x AluCell Aluminum Fuel Cell (20-liter)
  • 1 x Nuke Performance CFC Unit - low profile version
  • 2 x 1/4" BSPP to Male barb 8mm hose fittings
  • 1 x 1/4" BSPP plug for single high-pressure fuel pump use
  • 2 x 39mm inserts for high-pressure fuel pump bracket
  • 1 x Viton gasket for 24-bolt pattern fuel cells
  • 1 x Low profile filler cap (remote fill neck available as accessory)
  • 1 x Dual billet fuel pump bracket and adjustable pickup pump mount
  • 1 x AN-8 (3/4 UNF) to AN-6 Male vent safety valve
  • 1 x FLS spacer for fuel level senders with non-symmetrical bolt patterns
  • 24 x 1/4-28 UNF x 1 bolts with nylon washers

The Nuke Performance AluCell Fuel Cell with CFC Unit is an excellent choice for those looking to optimize their vehicle's fuel system without the need for FIA homologation. With its robust construction and innovative design, it caters to the needs of serious automotive enthusiasts.
