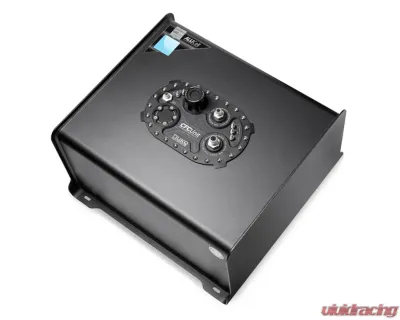

Nuke Performance AluCell Fuel Cell 21.13 Gallon/80L with CFC Unit Brushless Version - 150-07-181

Nuke Performance AluCell Fuel Cell 80L with CFC Unit (Part #150-07-181)

The Nuke Performance AluCell Fuel Cell is engineered for automotive enthusiasts seeking a lightweight, durable solution for their fuel storage needs. With a capacity of 80 liters (21.13 gallons), this aluminum fuel cell is ideal for high-performance applications, particularly for those not requiring FIA approval but still wanting advanced functionality.

Key Features

  • Capacity: 80 liters (21.13 gallons)
  • Material: High-quality aluminum construction, safe for petrol, methanol, ethanol, and E85
  • Integrated 2.0-liter fuel surge tank, eliminating the need for an external surge tank
  • Compatible with single or dual high-pressure fuel pumps
  • Single oversized AN-10 ORB outlet for optimal fuel flow
  • Low-profile fuel filler cap with integrated roll-over valve
  • Integrated mounting brackets for secure installation

Included Components

  • 1 x AluCell Aluminum fuel cell (80 liters)
  • 1 x Nuke Performance CFC Unit - low profile version
  • 2 x 1/4" BSPP to Male barb 8mm hose fittings
  • 1 x 1/4" BSPP plug (for single high-pressure fuel pump use)
  • 2 x 39mm inserts for high-pressure fuel pump bracket
  • 1 x Viton gasket for 24 bolt pattern fuel cells (compatible with alcoholic fuels)
  • 1 x Low profile filler cap (remote fill neck available as an accessory)
  • 1 x Dual billet fuel pump bracket and adjustable pickup pump mount
  • 1 x AN-8 (3/4 UNF) to AN-6 Male vent safety valve
  • 1 x FLS spacer for fuel level senders with non-symmetrical bolt patterns
  • 24 x 1/4-28 UNF x 1 bolts with nylon washers

Specifications

  • Part Number: 150-07-181
  • Dimensions: Length 577mm (22.71"), Depth 555mm (21.85"), Height 320mm (12.59")
  • Weight: 13,520g (29.80lb), including CFC Unit
  • Motorsports Use: Yes
  • Homologation: No
  • EAN: 7340209505498

Nuke Performance CFC Unit Specifications

  • Part Number: 150-05-201
  • Minimum Mounting Depth: 219mm (8.62")
  • Mounting Bolt Pattern: 6x10" 24-bolt pattern
  • High-Pressure Fuel Pump Connectors: 3 (max 125 ampere each)
  • Pickup Fuel Pump Connectors: 2 (max 125 ampere each)
  • Dimensions: Length 295mm (13.74"), Width 194mm (9.88")
  • Weight: 1,934g (68.21oz)
  • Maximum Pickup Pipe Length: 90mm (3.54")/95mm (3.74")
  • Fuel Compatibility: Gasoline, Methanol, Ethanol, E85
  • Internal Surge Tank Volume: Approximately 2.0 liters (0.53 gallons)
  • Outlet Port Thread: AN-10 ORB
  • Return Port Thread: AN-8 ORB
  • Vent Valve Thread: AN-8 (3/4 UNF)
  • For Motorsports Use: Yes

The Nuke Performance AluCell Fuel Cell with CFC Unit offers a reliable, efficient solution for those looking to enhance their fuel system without the complexity of additional components. Whether you're on the track or the road, this fuel cell is designed to meet the demands of serious automotive enthusiasts.
