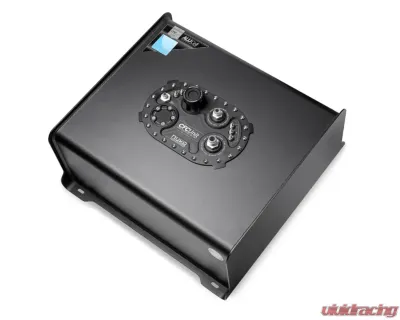

Nuke Performance AluCell Fuel Cell 15.85 Gallon 60L Low Profile CFC Unit - 150-07-061

Nuke Performance AluCell Fuel Cell 60L (Part #: 150-07-061)

The Nuke Performance AluCell Fuel Cell (60 liters) is engineered for automotive enthusiasts seeking a lightweight and efficient fuel storage solution. This model integrates seamlessly with the Nuke Performance drop-in CFC Unit, providing a compact design that eliminates the need for an external surge tank, making it ideal for fuel-injected systems.

Key Features

  • Fuel Capacity: 60 liters (15.85 gallons)
  • Material: High-quality aluminum construction, suitable for gasoline, methanol, ethanol, and E85
  • Dimensions:
    • Length: 577mm (22.71 inches)
    • Depth: 555mm (21.85 inches)
    • Height: 250mm (9.84 inches)
  • Weight: 11,950g (26.34 lbs), including CFC Unit
  • Integrated 2.0-liter surge tank function
  • Single oversized AN-10 ORB outlet for maximum flow
  • Compatible with single or dual high-pressure fuel pumps
  • Low-profile fuel filler cap with integrated roll-over valve
  • Integrated brackets for secure mounting

Included Components

  • 1 x AluCell Aluminum fuel cell (60 liters)
  • 1 x Nuke Performance CFC Unit - low profile version
  • 2 x 1/4" BSPP to Male barb 8mm hose fittings
  • 1 x 1/4" BSPP plug for single high-pressure fuel pump use
  • 2 x 39mm inserts for high-pressure fuel pump bracket
  • 1 x Viton gasket for 24 bolt pattern fuel cells
  • 1 x Low-profile filler cap (remote fill neck available as accessory)
  • 1 x Dual billet fuel pump bracket and adjustable pickup pump mount
  • 1 x AN-8 (3/4 UNF) to AN-6 Male vent safety valve
  • 1 x FLS spacer for fuel level senders with non-symmetrical bolt patterns
  • 24 x 1/4-28 UNF x 1 bolts with nylon washers

CFC Unit Specifications

  • CFC Unit Part #: 150-05-201
  • Minimum mounting depth: 219mm (8.62 inches)
  • Mounting bolt pattern: 6x10" 24-bolt pattern
  • High-pressure fuel pump connectors: 3 (max 125 amperes each)
  • Pickup fuel pump connectors: 2 (max 125 amperes each)
  • Dimensions:
    • Length: 295mm (13.74 inches)
    • Width: 194mm (9.88 inches)
  • Weight: 1,934g (68.21 oz)
  • Maximum pickup pipe length: 90mm (3.54 inches) / 95mm (3.74 inches)
  • Internal surge tank volume: Approximately 2.0 liters (0.53 gallons)
  • Outlet port: AN-10 ORB thread
  • Return port: AN-8 ORB thread
  • Vent valve: AN-8 (3/4 UNF) thread

Designed for motorsport use, the Nuke Performance AluCell Fuel Cell 150-07-061 is a robust solution for those looking to enhance their fuel management system without the complexities of external surge tanks. Its compatibility with various fuel types and efficient design make it a smart choice for serious automotive applications.
