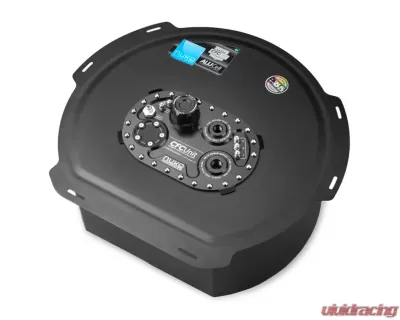

Nuke Performance AluCell Fuel Cell 11.6 Gallon 45L Well Cell with CFC Unit Brushless Version - 150-07-155

Nuke Performance AluCell Fuel Cell 150-07-155

The Nuke Performance AluCell Fuel Cell, part number 150-07-155, is engineered for automotive enthusiasts seeking a lightweight and efficient fuel storage solution. This particular model features a 45-liter (11.6-gallon) capacity and is designed with a built-in CFC Unit, making it ideal for applications that do not require FIA approval.

Key Features

  • 45-liter (11.6-gallon) aluminum fuel cell, optimized for weight savings and durability.
  • Integrated low-profile 2.0-liter fuel surge tank, eliminating the need for an external surge tank.
  • Compatible with a wide range of fuels including gasoline, methanol, ethanol, and E85.
  • Integrated mounting brackets for straightforward installation and secure fitment.
  • Designed to accommodate single or dual high-pressure fuel pumps.
  • Oversized AN-10 ORB outlet for maximum fuel flow efficiency.
  • Low-profile fuel filler cap with an integrated roll-over valve for added safety.

Included Components

  • 1 x AluCell Aluminum fuel cell (45-liter capacity)
  • 1 x Nuke Performance CFC Unit - low profile version
  • 2 x 1/4" BSPP to Male barb 8mm hose fittings
  • 1 x 1/4" BSPP plug (for single high-pressure fuel pump use)
  • 2 x 39mm inserts for high-pressure fuel pump bracket
  • 1 x Viton gasket for 24 bolt pattern fuel cells (compatible with alcoholic fuels)
  • 1 x Low profile filler cap (remote fill neck available as an accessory)
  • 1 x Dual billet fuel pump bracket and adjustable pickup pump mount
  • 1 x AN-8 (3/4 UNF) to AN-6 Male vent safety valve
  • 1 x FLS spacer for fuel level senders with non-symmetrical bolt patterns
  • 24 x 1/4-28 UNF x 1 bolts with nylon washers for secure mounting

CFC Unit Specifications

  • CFC Unit Part #: 150-05-201
  • Minimum mounting depth: 219mm (8.62")
  • Mounting bolt pattern: 6x10" 24-bolt pattern
  • High-pressure fuel pump connector: 3 (max 125 amp each)
  • Pickup fuel pump connector: 2 (max 125 amp each)
  • Length: 295mm (13.74")
  • Width: 194mm (9.88")
  • Weight: 1934g (68.21oz)
  • Maximum pickup pipe length: 90mm (3.54")/95mm (3.74")
  • Internal surge tank volume: Approximately 2.0 liters (0.53 gallons)
  • Outlet port thread: AN-10 ORB
  • Return port thread: AN-8 ORB
  • Vent valve thread: AN-8 (3/4 UNF)
  • Suitable for motorsports use

The Nuke Performance AluCell Fuel Cell 150-07-155 is a robust solution for performance builds, providing reliability and efficiency without the complexity of additional components. Perfect for those looking to enhance their fuel system with a high-quality, integrated option.
