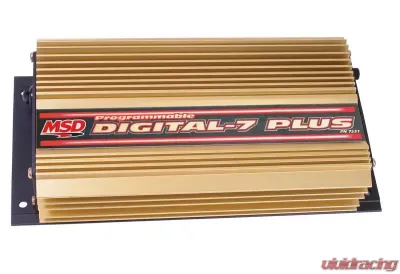

MSD Programmable Digital-7 Plus - 7531

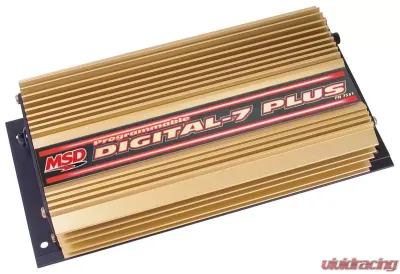

MSD Programmable Digital-7 Plus - 7531 - Image 2 MSD Programmable Digital-7 Plus - 7531 - Image 2
If you're a consummate engine tuner and know how to take advantage of minute changes in timing during a quarter-mile pass, then the Programmable Digital-7 Plus is the ignition for you! All of the standard programmable features such as Individual Cylinder Management, Step Retards, Rev Limits, Shift Points, and more are included in the Plus version but you also get more. Much, much more.

A MAP sensor is required for the boost circuit. The Ignition is supplied with wiring harnesses, mounting hardware, an RS232 computer harness, and the Pro-Data+ software on a mini-CD.

Note: Illegal for use in NHRA classes except Pro Mod. The Programmable-7 Series of ignition controls has been updated with the Power Grid Ignition System

Features:
  • Map a complete timing curve for every gear.
  • Output to activate a device through rpm, time or pressure inputs.
  • Automatic magnetic pickup compensation for crank triggers or distributor pick- ups.
  • Program your engine's firing order for ease of setting the cylinder-to-cylinder timing.
  • There is a cam sync output for fuel controllers or data acquisition.
  • Vacuum advance and boost retard is selectable through a MAP sensor.
  • Program an rpm limit that is ramped in during the launch.
  • Select the rpm limiter value in rpm/seconds.
  • Acquire 20 seconds of run data including two seconds prior to launch.
  • View all ignition events in a new Launch History window including the retard sum, manifold pressure, rpm, shift points and more.
  • Updated X-Y plots with interpolation for smooth changes.
  • Stage retards can be set to ramp the timing.
  • An upgraded micro- controller runs at 40MHz enabling timing accuracy within 0.1 degrees and +/-1 rpm at up to 10,000 rpm!
Specifications:
  • Brand: MSD
  • Current Draw: 1.1 Amp per 1,000 RPM
  • Primary Voltage: 535 Volts
  • Product Type: Ignition Box
  • RPM Range: 12,500 RPM with 14.4 Volts
  • Sale Category: Ignition
  • Secondary Voltage: 40,000 Volts
  • Spark Energy: 190 mJ per spark
  • Spark Series Duration: 20 Degree Crankshaft Rotation
  • Voltage Required: 12-18 Volts, Negative Ground
  • Warranty: Limited 1 Year Warranty
  • Weight and Size: 3 lbs.,9.5"L x 4.5"W x 2.2"H

Other Part Numbers:
MSD Ignition #MSD-7531

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

MSD Ignition Banner

Who is MSD Ignition?

MSD Ignition started back in 1970. Based in El Paso Texas, the company is known for creating quality ignition systems for various automobiles. Today, they are considered the leading company when it comes to the ignition system and has become a brand recognized all over the world.

Changing the Way Vehicles are Made

MSD has helped shape the automotive industry by being the first company in the world to conduct an experiment regarding Multiple Spark Discharge for a vehicle’s ignition system. It has been suggested by Engineers who were working on the White Sands Missile Range in Southern Mexico. They noticed that their quest for power is limited by the amount of spark the ignition system can only generate. Hence, the idea of Multi Spark Discharge.

Racing Application

Soon after the product introduction, racers started applying it to their race cars. Due to its success, other top teams started using MSD which helped paved the way for the brand’s popularity. The majority of the race engines today use MSD and have proven to produce race champions.

The company operates in a 100,000 square feet facility in Texas. They house some of the most state-of-the-art equipment that helps them create products that are superior in quality.

Purchase MSD Ignition Products at Vivid Racing

If you are in search of the best ignition system available in the market, then MSD is the brand for you. Tested by many enthusiasts and racers for years, MSD has proven to provide optimum performance in every vehicle.




MSD warrants this product to be free from defects in material and workmanship under its intended normal use*, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any products purchased through auction websites. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods.

This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representation whether expressed or implied, including any implied warranty of merchantability or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages.

Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. It is the sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability for custom applications.
