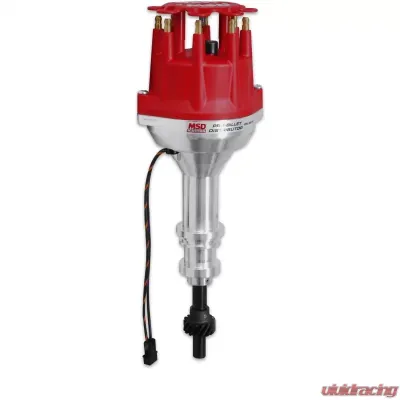

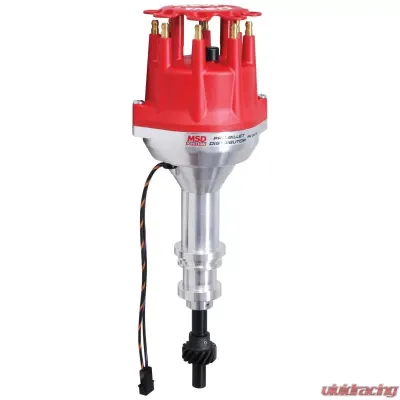

MSD Ford 351W Small Diameter Pro-Billet Distributor - 8578
MSD Ford 351W Small Diameter Pro-Billet Distributor - 8578 - Image 2 MSD Ford 351W Small Diameter Pro-Billet Distributor - 8578 - Image 2
MSD engineers fit all of their high performance distributor experience into a special compact housing designed to be less obtrusive for Ford engines. The diameter of the special cap and housing are 5/8" smaller than stock Ford distributors providing extra room in front of the engine. The new MSD cap features spark plug style terminals and is firmly screwed down to the housing.

The distributor relies on MSD's race proven magnetic pickup and precision reluctor to deliver accurate trigger signals to the MSD Ignition throughout high rpm. The reluctor assembly is turned by a hardened steel shaft which rides in a sealed ball bearing for high rpm stability and endurance.

Mounted to the top of this shaft is a fully adjustable mechanical advance assembly. The rate at which the chromoly assembly advances the timing is easily controlled by changing the supplied advance springs and stop bushing for total advance.

Features:
  • Billet housing is 5/8” smaller in diameter than stock Ford distributors
  • Must be used with an MSD Ignition Control
  • Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
  • Nylon pads ensure smooth operation of the advance weights
  • Advance weight pins are staked and tig welded to the plate
  • Mechanical advance assembly can be locked out for crank trigger systems
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • CNC machined billet aluminum housing and billet aluminum base
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • No CARB Exemption Order Number
Specifications:
  • Brand: MSD
  • C.A.R.B. EO #: D-40-39
  • Color: Red
  • Distributor Type: Magnetic Pickup
  • Engine: Ford 351W
  • Gear: Cast Iron
  • Product Type: Distributor
  • Sale Category: Ignition
  • Warranty: Limited 1 Year Warranty

Other Part Numbers:
MSD Ignition #MSD-8578

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
1981-1996
 Ford Bronco
1975-1978
 Ford E-100
1979-1989, 1991-1996
 Ford E-150
1981-1989, 1991-1996
 Ford E-250
1981-1989, 1991-1996
 Ford E-350
1976
 Ford Elite
1981
 Ford F-100
1981-1996
 Ford F-150
1981-1997
 Ford F-250
1981-1997
 Ford F-350
1975-1976
 Ford Gran Torino
1975-1977
 Ford Granada
1976-1986
 Ford LTD
1988-1991
 Ford LTD Crown Victoria
1995
 Ford Mustang
1995
 Ford Mustang SVT Cobra
1975-1979
 Ford Ranchero
1977-1979
 Ford Thunderbird
1975-1976
 Ford Torino

MSD Ignition Banner

Who is MSD Ignition?

MSD Ignition started back in 1970. Based in El Paso Texas, the company is known for creating quality ignition systems for various automobiles. Today, they are considered the leading company when it comes to the ignition system and has become a brand recognized all over the world.

Changing the Way Vehicles are Made

MSD has helped shape the automotive industry by being the first company in the world to conduct an experiment regarding Multiple Spark Discharge for a vehicle’s ignition system. It has been suggested by Engineers who were working on the White Sands Missile Range in Southern Mexico. They noticed that their quest for power is limited by the amount of spark the ignition system can only generate. Hence, the idea of Multi Spark Discharge.

Racing Application

Soon after the product introduction, racers started applying it to their race cars. Due to its success, other top teams started using MSD which helped paved the way for the brand’s popularity. The majority of the race engines today use MSD and have proven to produce race champions.

The company operates in a 100,000 square feet facility in Texas. They house some of the most state-of-the-art equipment that helps them create products that are superior in quality.

Purchase MSD Ignition Products at Vivid Racing

If you are in search of the best ignition system available in the market, then MSD is the brand for you. Tested by many enthusiasts and racers for years, MSD has proven to provide optimum performance in every vehicle.




MSD warrants this product to be free from defects in material and workmanship under its intended normal use*, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any products purchased through auction websites. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods.

This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representation whether expressed or implied, including any implied warranty of merchantability or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages.

Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. It is the sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability for custom applications.
