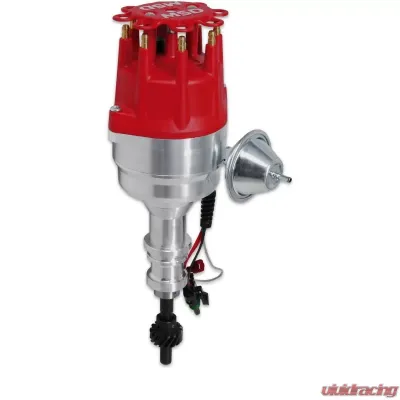

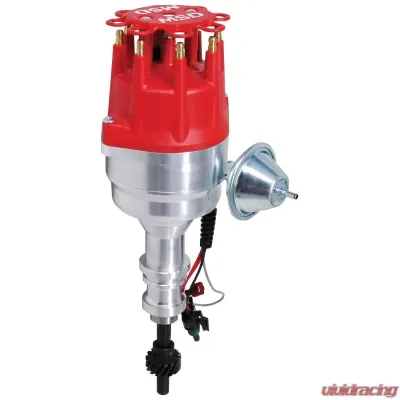

The billet aluminum housings of these distributors are 5/8" smaller in diameter to accommodate induction setups and tight engine compartments. A maintenance-free magnetic pickup is responsible for triggering the high voltage sparks while a sealed ball bearing guides an oversized shaft.
Beneath the bolt down cap and MSD race rotor you'll find MSD's accurate mechanical advance assembly. Different advance springs and stop bushings are supplied so you can easily tune a curve to match your needs. Plus, there is a vacuum advance canister to increase economy on long drives. For protection, there is also an easy-to-set rev limiter!
Features:
- Advance weight pins are staked and tig welded to the plate
- Nylon pads ensure smooth operation of the advance weights
- Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
- Does not require an MSD Ignition Control
- CARB E.O. Approved
- Now includes built-in Rev Limiter!
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Equipped with Steel Gear
- Simple and clean installation with only three wires to connect
- Powerful built-in module produces a 7.5 amp single spark through high rpm
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Vacuum advance canister for improved economy (can be locked out)
- CNC machined billet aluminum housing and billet aluminum base
- Housing is 5/8” smaller in diameter than stock Ford distributors
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Brand: MSD
- Color: Red
- Distributor Type: Ready To Run
- Engine: Ford 351C-460
- Gear: Steel
- Product Type: Distributor
- Sale Category: Ignition
- Warranty: Limited 1 Year Warranty
Other Part Numbers:
MSD Ignition #MSD-83501
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Make Vehicle | Model | Year |
|---|---|---|
|
1978-1996 Ford Bronco |
Bronco | 1978-1996 |
|
1969-1974 Ford Country Squire |
Country Squire | 1969-1974 |
|
1979-1996 Ford E-150 |
E-150 | 1979-1996 |
|
1981-1996 Ford E-250 |
E-250 | 1981-1996 |
|
1981-1996 Ford E-350 |
E-350 | 1981-1996 |
|
1975-1976 Ford Elite |
Elite | 1975-1976 |
|
1973-1974, 1977-1979 Ford F-100 |
F-100 | 1973-1974, 1977-1979 |
|
1975-1996 Ford F-150 |
F-150 | 1975-1996 |
|
1973-1997 Ford F-250 |
F-250 | 1973-1997 |
|
1973-1997 Ford F-350 |
F-350 | 1973-1997 |
|
1969-1970 Ford Fairlane |
Fairlane | 1969-1970 |
|
1969-1970 Ford Falcon |
Falcon | 1969-1970 |
|
1969-1974 Ford Galaxie 500 |
Galaxie 500 | 1969-1974 |
|
1972-1976 Ford Gran Torino |
Gran Torino | 1972-1976 |
|
1975-1977 Ford Granada |
Granada | 1975-1977 |
|
1969-1986 Ford LTD |
LTD | 1969-1986 |
|
1987-1991 Ford LTD Crown Victoria |
LTD Crown Victoria | 1987-1991 |
|
1969-1973 Ford Mustang |
Mustang | 1969-1973 |
|
1995 Ford Mustang SVT Cobra |
Mustang SVT Cobra | 1995 |
|
1969-1972 Ford Ranch Wagon |
Ranch Wagon | 1969-1972 |
|
1969-1979 Ford Ranchero |
Ranchero | 1969-1979 |
|
1968-1979 Ford Thunderbird |
Thunderbird | 1968-1979 |
|
1969-1976 Ford Torino |
Torino | 1969-1976 |
|
1968-1969 Lincoln Continental |
Continental | 1968-1969 |
|
1971-1973 Mercury Cougar |
Cougar | 1971-1973 |
|
1970-1971 Mercury Cyclone |
Cyclone | 1970-1971 |
