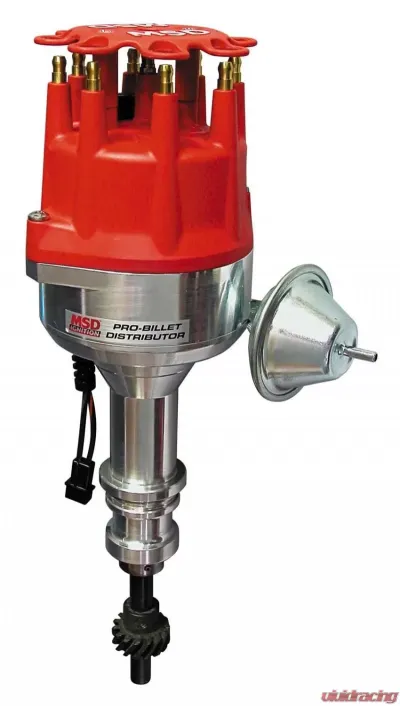

MSD Ford 289/302 Street Pro-Billet - 8479
MSD Ford 289/302 Street Pro-Billet - 8479 - Image 2
MSD engineers fit all of their high performance distributor experience into a special compact housing designed to be less obtrusive for Ford engines. The diameter of the special cap and housing are 5/8" smaller than stock Ford distributors providing extra room in front of the engine. The new MSD cap features spark plug style terminals and is firmly screwed down to the housing.

The distributor relies on MSD's race proven magnetic pickup and precision reluctor to deliver accurate trigger signals to the MSD Ignition throughout high rpm. The reluctor assembly is turned by a hardened steel shaft which rides in a sealed ball bearing for high rpm stability and endurance.

Mounted to the top of this shaft is a fully adjustable mechanical advance assembly. The rate at which the chromoly assembly advances the timing is easily controlled by changing the supplied advance springs and stop bushing for total advance.

Features:
  • Billet housing is 5/8” smaller in diameter than stock Ford distributors
  • CARB E.O. Approved
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • Vacuum advance canister for improved economy (can be locked out)
  • CNC machined billet aluminum housing and billet aluminum base
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Mechanical advance assembly can be locked out for crank trigger systems
  • Advance weight pins are staked and tig welded to the plate
  • Nylon pads ensure smooth operation of the advance weights
  • Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
  • Must be used with an MSD Ignition Control
Specifications:
  • Brand: MSD
  • C.A.R.B. EO #: D-40-39
  • Color: Red
  • Distributor Type: Magnetic Pickup
  • Engine: Ford Small Block
  • Gear: Cast Iron
  • Product Type: Distributor
  • Warranty: Limited 1 Year Warranty

Other Part Numbers:
MSD Ignition #MSD-8479

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
1966-1977, 1980-1996
 Ford Bronco
1963-1964
 Ford Country Sedan
1969-1970, 1987-1991
 Ford Country Squire
1975
 Ford E-100
1979-1989, 1991-1996
 Ford E-150
1981-1989, 1991
 Ford E-250
1981-1982
 Ford E-350
1968-1983
 Ford F-100
1975-1996
 Ford F-150
1968, 1972-1978, 1980-1996
 Ford F-250
1972-1980
 Ford F-350
1962-1970
 Ford Fairlane
1978-1982
 Ford Fairmont
1963-1968, 1970
 Ford Falcon
1963-1967
 Ford Galaxie
1968-1971
 Ford Galaxie 500
1972-1974
 Ford Gran Torino
1975-1981
 Ford Granada
1967-1972, 1977-1986
 Ford LTD
1987-1991
 Ford LTD Crown Victoria
1971-1977
 Ford Maverick
1964-1973, 1979-1985
 Ford Mustang
1969-1970
 Ford Mustang Boss 302
1982-1985
 Ford Mustang GT
1975-1978
 Ford Mustang II
1965-1967
 Ford Mustang Shelby GT350
1970-1972
 Ford Ranch Wagon
1963-1974, 1977-1979
 Ford Ranchero
1977-1988, 1991-1993
 Ford Thunderbird
1968-1974
 Ford Torino
1980, 1982-1983
 Lincoln Continental
1980-1983
 Lincoln Mark VI
1982-1983
 Lincoln Town Car
1977-1980
 Lincoln Versailles
1979, 1982-1985
 Mercury Capri
1964-1969, 1971-1977
 Mercury Comet
1967-1968, 1977-1981, 1983
 Mercury Cougar
1964-1970
 Mercury Cyclone
1979-1983
 Mercury Grand Marquis
1979-1982
 Mercury Marquis
1975-1980
 Mercury Monarch
1968-1974
 Mercury Montego
1978-1979
 Mercury Zephyr

MSD Ignition Banner

Who is MSD Ignition?

MSD Ignition started back in 1970. Based in El Paso Texas, the company is known for creating quality ignition systems for various automobiles. Today, they are considered the leading company when it comes to the ignition system and has become a brand recognized all over the world.

Changing the Way Vehicles are Made

MSD has helped shape the automotive industry by being the first company in the world to conduct an experiment regarding Multiple Spark Discharge for a vehicle’s ignition system. It has been suggested by Engineers who were working on the White Sands Missile Range in Southern Mexico. They noticed that their quest for power is limited by the amount of spark the ignition system can only generate. Hence, the idea of Multi Spark Discharge.

Racing Application

Soon after the product introduction, racers started applying it to their race cars. Due to its success, other top teams started using MSD which helped paved the way for the brand’s popularity. The majority of the race engines today use MSD and have proven to produce race champions.

The company operates in a 100,000 square feet facility in Texas. They house some of the most state-of-the-art equipment that helps them create products that are superior in quality.

Purchase MSD Ignition Products at Vivid Racing

If you are in search of the best ignition system available in the market, then MSD is the brand for you. Tested by many enthusiasts and racers for years, MSD has proven to provide optimum performance in every vehicle.




MSD warrants this product to be free from defects in material and workmanship under its intended normal use*, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any products purchased through auction websites. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods.

This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representation whether expressed or implied, including any implied warranty of merchantability or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages.

Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. It is the sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability for custom applications.
