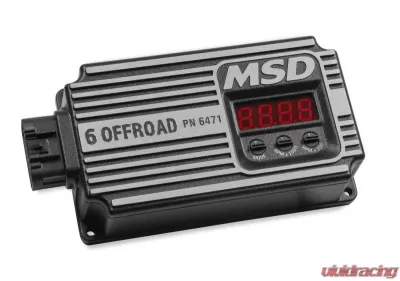

MSD Digital 6 Offroad Ignition - 6471
MSD Digital 6 Offroad Ignition - 6471 - Image 5 MSD Digital 6 Offroad Ignition - 6471 - Image 2 MSD Digital 6 Offroad Ignition - 6471 - Image 3 MSD Digital 6 Offroad Ignition - 6471 - Image 4 MSD Digital 6 Offroad Ignition - 6471 - Image 5
If you're crawling rocks, high speed desert racing, or playing in any kind of harsh terrain in your offroad rig, the MSD 6 Offorad ignition is a must. Its fully potted design provides the ruggedness and reliability needed to get your 4WD to any destination.

The 6 Offroad multi-sparks below 3,000 RPM on V8's ensuring clean, crisp throttle response and complete fuel burn when crawling at low speeds. Above 3,000 RPM a powerful capacitive discharge spark keeps the fire lit until you let off the skinny pedal. A smooth, accurate rev-limiter will protect your engine from over-rev damage due to drivetrain failure or a slick spot on the trail.

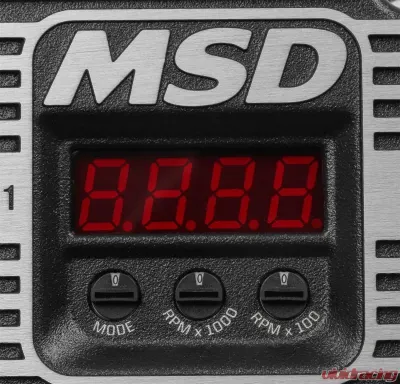

An easy to read LED display on the face of the unit clearly displays the rev-limit RPM. The display, in conjunction with rotary dials, is used to set the rev-limit, cylinder select, and even a timing start retard for race engines. The handy display can also show a live tach reading and even battery voltage with the quick turn of a knob.

Features:
  • MSD’s smoothest rev limiter yet! Easy on your engine
  • Fully potted design provides reliability even in high vibration and wet circumstances
  • Large, easy to read LED display
  • Simple setup of features such as the rev limiter with three rotary dials on the face of the unit
  • Built-in Start Retard adjustable in 0?, 10? or 20? increments for quick, easy starts and extend starter life
  • LED displays rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
  • Full delivery of spark energy down to 6 volts battery supply
  • Highly efficient, low current draw for extended battery life
  • Rugged housing to stand up to demanding offroad and race conditions

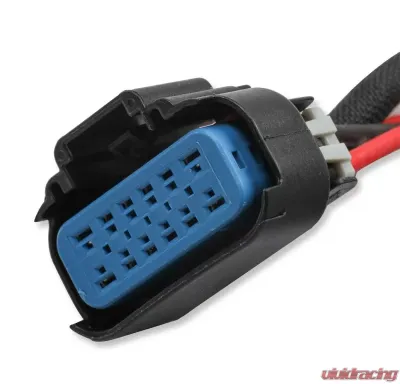

  • Single plug-in connector for clean wiring
  • Works on 4, 6 and 8 cylinder engines
  • Reverse polarity and overheat protection provide ultimate reliability
Specifications:
  • Brand: MSD
  • Color: Black
  • Current Draw: 0.8 Amps per 1,000 RPM
  • Features: Start Retard
  • Primary Voltage: 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
  • Product Type: Digital 6 Offroad Ignition Box
  • RPM Range: 12,000 RPM
  • Sale Category: Ignition
  • Secondary Voltage: 45,000 Volts
  • Spark Energy: 135mJ w/ Blaster Coil / 150mJ w/ HVC Coil PN 8250
  • Spark Series Duration: 20°Crankshaft Rotation
  • Voltage Required: 6 to 18 Volts
  • Warranty: Limited 1 Year Warranty
  • Weight and Size: 2.5 lbs., 7.89"L x 4.00"W x 1.87"H

Other Part Numbers:
MSD Ignition #MSD-6471
