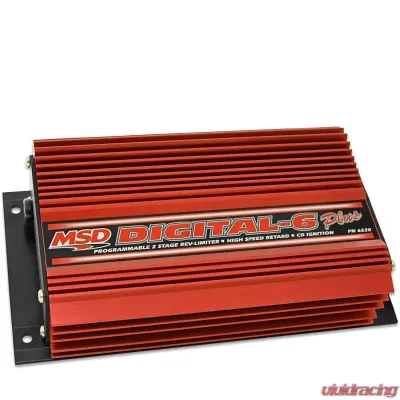

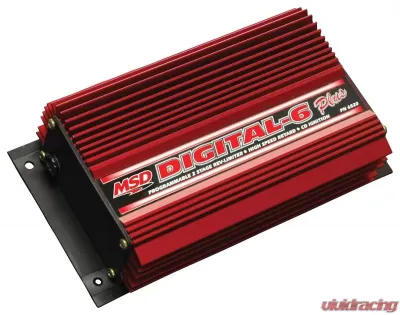

MSD Digital 6-Plus Ignition Control
$649.95
The MSD Digital-6 Plus Ignition Control combines terrific power, digital accuracy, and great accessories making it ideal for street/strip applications.

Every spark of the Digital-6 Plus Ignition is packed with 135 millijoules of spark energy and 535 primary volts.

For nitrous-equipped cars, the Digital-6 Plus offers a step retard that will retard the timing when the nitrous is activated. There is also a 2-step rev limiter for holeshot consistency and overrev protection.

The Digital-6 Plus accepts points, amplifier, and mag pickup inputs and will run on 4, 6, or 8 cylinder engines.

The MSD Digital 6 Plus uses a high-speed RISC microcontroller to control the ignition's output while constantly analyzing the various inputs such as supply voltage, trigger signals, and rpm. The high-speed controller can make extremely quick compensations to the output voltage, multiple spark series, timing, and rpm limits while maintaining accurate timing signals to within 1° and 1% of the rpm limits. The circuits and controller of the Digital 6 Plus have been thoroughly debounced and isolated to create protection against Electro-Magnetic Interference (EMI).

Features:
  • Switch between two rev limits that adjust with rotary switches in 100 rpm increments.
  • Single stage retard for nitrous and top end performance.
  • Start retard eases pressure on the starter, flywheel and engine.
  • Adjustable magnetic pickup compensation produces accurate trigger signals.
  • LED display warns of trigger signal problems or faulty charging system.
Specifications:
  • Brand: MSD
  • Color: Red
  • Current Draw: .7 Amp per 1,000 RPM
  • Primary Voltage: 535 Volts
  • Product Type: Digital 6-Plus Ignition Control Box
  • RPM Range: 12,500 RPM with 14.4 Volts
  • Sale Category: Ignition
  • Secondary Voltage: 45,000 Volts
  • Spark Series Duration: 20°Crankshaft Rotation
  • Voltage Required: 12-18 Volts, Negative Ground
  • Warranty: Limited 1 Year Warranty
  • Weight and Size: 3.7 lbs., 8.5"L x 4.5"W x 2.2"H

Other Part Numbers:
MSD Ignition #MSD-6520

Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

MSD Ignition Banner

Who is MSD Ignition?

MSD Ignition started back in 1970. Based in El Paso Texas, the company is known for creating quality ignition systems for various automobiles. Today, they are considered the leading company when it comes to the ignition system and has become a brand recognized all over the world.

Changing the Way Vehicles are Made

MSD has helped shape the automotive industry by being the first company in the world to conduct an experiment regarding Multiple Spark Discharge for a vehicle’s ignition system. It has been suggested by Engineers who were working on the White Sands Missile Range in Southern Mexico. They noticed that their quest for power is limited by the amount of spark the ignition system can only generate. Hence, the idea of Multi Spark Discharge.

Racing Application

Soon after the product introduction, racers started applying it to their race cars. Due to its success, other top teams started using MSD which helped paved the way for the brand’s popularity. The majority of the race engines today use MSD and have proven to produce race champions.

The company operates in a 100,000 square feet facility in Texas. They house some of the most state-of-the-art equipment that helps them create products that are superior in quality.

Purchase MSD Ignition Products at Vivid Racing

If you are in search of the best ignition system available in the market, then MSD is the brand for you. Tested by many enthusiasts and racers for years, MSD has proven to provide optimum performance in every vehicle.




MSD warrants this product to be free from defects in material and workmanship under its intended normal use*, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any products purchased through auction websites. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods.

This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representation whether expressed or implied, including any implied warranty of merchantability or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages.

Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. It is the sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability for custom applications.
