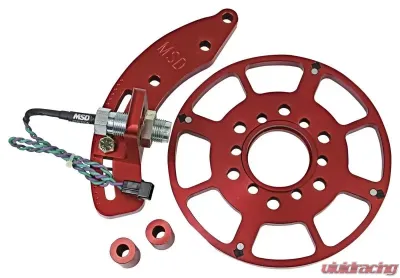

MSD Crank Trigger Wheel Kit - Flying Magnet - Chrysler Small Block - 7.25 in. - 8633
For a long time, racers have known that one of the best things to do to an engine to improve performance is to stabilize the ignition timing. The MSD Flying Magnet Crank Trigger system does exactly that by using four magnets embedded in an aluminum wheel. Although similar in appearance to other crank triggers, the MSD Flying Magnet design works on a different principle. Most crank triggers have a wheel, with steel studs sticking out, bolted to the harmonic balancer. As the crankshaft turns, the studs pass by a stationary magnetic pick-up, triggering the ignition. This pick-up can be triggered by other bolts, debris, or even vibrations which will cause a loss of power or engine damage.

The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This "flying magnet" design produces accurate trigger signals and the non-magnetic pick-up cannot be falsely triggered. Each Flying Magnet Crank Trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or driver's side of the engine (the SB Chrysler and SB Ford brackets mount on only one side). The CNC-machined aluminum bracket securely holds the pick-up in place and is slotted to provide a wide range of timing adjustments. Spacers are included so you can mount the bracket on engines with standard motor mounts or engines with a .25" motor plate. These systems will trigger MSD 6, 7, and 8 Series Ignitions and all MSD Timing Accessories.

Features:
  • Absolutely the most accurate way to trigger the ignition.
  • The non-magnetic pickup cannot be false triggered.
  • Powerful magnets are embedded in a billet aluminum trigger wheel.
  • Kits feature special brackets and mounting hardware for a variety of engines.
Specifications:
  • Brand: MSD
  • Color: Red
  • Diameter: 7.25 in.
  • Diameter: 7.25"
  • Make: Chrysler
  • Product Type: Crank Trigger Kit
  • Sensor Dimensions: 3/4" x 2.25"
  • Sensor Type: Magnetic
  • Trigger Type: 4X
  • Warranty: Limited 1 Year Warranty
  • Wheel Width: 3/8"

Other Part Numbers:
MSD Ignition #MSD-8633

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
1975-1983
 Chrysler Cordoba
1983-1989
 Chrysler Fifth Avenue
1981-1983
 Chrysler Imperial
1977-1981
 Chrysler LeBaron
1978-1982
 Chrysler New Yorker
1974-1981
 Chrysler Newport
1978-1981
 Chrysler Town & Country

MSD Ignition Banner

Who is MSD Ignition?

MSD Ignition started back in 1970. Based in El Paso Texas, the company is known for creating quality ignition systems for various automobiles. Today, they are considered the leading company when it comes to the ignition system and has become a brand recognized all over the world.

Changing the Way Vehicles are Made

MSD has helped shape the automotive industry by being the first company in the world to conduct an experiment regarding Multiple Spark Discharge for a vehicle’s ignition system. It has been suggested by Engineers who were working on the White Sands Missile Range in Southern Mexico. They noticed that their quest for power is limited by the amount of spark the ignition system can only generate. Hence, the idea of Multi Spark Discharge.

Racing Application

Soon after the product introduction, racers started applying it to their race cars. Due to its success, other top teams started using MSD which helped paved the way for the brand’s popularity. The majority of the race engines today use MSD and have proven to produce race champions.

The company operates in a 100,000 square feet facility in Texas. They house some of the most state-of-the-art equipment that helps them create products that are superior in quality.

Purchase MSD Ignition Products at Vivid Racing

If you are in search of the best ignition system available in the market, then MSD is the brand for you. Tested by many enthusiasts and racers for years, MSD has proven to provide optimum performance in every vehicle.




MSD warrants this product to be free from defects in material and workmanship under its intended normal use*, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any products purchased through auction websites. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods.

This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representation whether expressed or implied, including any implied warranty of merchantability or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages.

Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. It is the sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability for custom applications.
