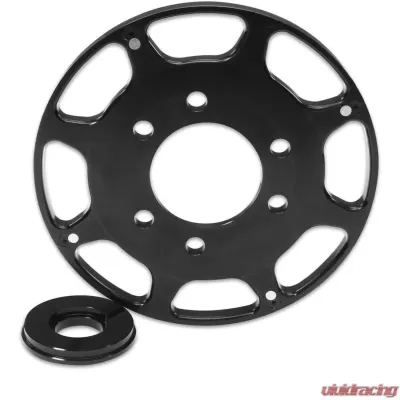

MSD Crank Trigger Wheel - Flying Magnet - SBC - 7 in. - 86113
For a long time, racers have known that one of the best things to do to an engine to improve its performance is to stabilize the ignition timing. The MSD Flying Magnet Crank Trigger systems do exactly that by using four magnets embedded in an aluminum wheel. Although similar in appearance to other crank triggers, the MSD Flying Magnet design works on a different principle.

Most crank triggers have a wheel, with steel studs sticking out, bolted to the harmonic balancer. As the crankshaft turns, the studs pass by a stationary magnetic pick-up, triggering the ignition. This pick-up can be triggered by other bolts, debris or even vibrations which will cause a loss of power or engine damage. The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This "flying magnet" design produces accurate trigger signals and the non-magnetic pick-up cannot be false triggered, making this one of the best on the market!!

Features:
  • Replacement crank trigger wheel for small block chevy
  • Powerful magnets are embedded in a billet aluminum trigger wheel
  • Absolutely the most accurate way to trigger the ignition
  • Includes Crank Trigger Wheel and Centering RIng
Specifications:
  • Brand: MSD
  • Color: Black
  • Diameter: 7 in.
  • Diameter: 7"
  • Make: Chevy
  • Product Type: Crank Trigger Wheel
  • Sensor Dimensions: 3/4" x 2.25"
  • Sensor Type: Non Magnetic
  • Trigger Type: 4X
  • Warranty: Limited 1 Year Warranty
  • Wheel Width: 3/8"

Other Part Numbers:
MSD Ignition #MSD-86113

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
1977-1981
 Buick Century
1991-1993
 Buick Commercial Chassis
1978, 1982
 Buick LeSabre
1977-1987
 Buick Regal
1991-1993
 Buick Roadmaster
1977-1979
 Buick Skylark
1965-1982
 Checker Marathon
1959
 Chevrolet 3B
1959
 Chevrolet 3C
1959
 Chevrolet 3D
1959
 Chevrolet 3E
1959
 Chevrolet 3F
1955-1975, 1981
 Chevrolet Bel Air
1958-1972
 Chevrolet Biscayne
1958-1961, 1969-1972
 Chevrolet Brookwood
1975-1986
 Chevrolet C10
1960-1967
 Chevrolet C10 Panel
1968-1974
 Chevrolet C10 Pickup
1975-1985
 Chevrolet C20
1967-1974
 Chevrolet C20 Pickup
1975-1976, 1983-1986
 Chevrolet C30
1960-1966
 Chevrolet C30 Panel
1967-1974
 Chevrolet C30 Pickup
1967-1986
 Chevrolet Camaro
1966-1986
 Chevrolet Caprice
1964-1973
 Chevrolet Chevelle
1963-1968
 Chevrolet Chevy II
1955-1982, 1984-1986
 Chevrolet Corvette
1957-1958
 Chevrolet Del Ray
1958-1985
 Chevrolet Impala
1986
 Chevrolet K20
1960-1966
 Chevrolet K20 Pickup
1977-1982
 Chevrolet K30
1959-1961, 1969-1972
 Chevrolet Kingswood
1973-1976
 Chevrolet Laguna
1964-1967, 1973-1983
 Chevrolet Malibu
1970-1986
 Chevrolet Monte Carlo
1975-1979
 Chevrolet Monza
1955-1957
 Chevrolet Nomad
1969-1979
 Chevrolet Nova
1955-1957
 Chevrolet One-Fifty Series
1969-1972
 Chevrolet Townsman
1955-1960
 Chevrolet Truck
1955-1957
 Chevrolet Two-Ten Series
1960-1963
 GMC 1000 Series
1960-1963
 GMC 1500 Series
1960-1963
 GMC 2500 Series
1967-1974
 GMC C/K 15
1967-1974
 GMC C/K 25
1975-1978
 GMC C15
1979-1986
 GMC C1500
1975-1978
 GMC C25
1979-1986
 GMC C2500
1975-1978
 GMC C35
1979-1986
 GMC C3500
1973-1974
 GMC K35/K3500 Pickup
1975
 Oldsmobile Custom Cruiser
1978-1981
 Oldsmobile Cutlass
1978-1980, 1982, 1984
 Oldsmobile Cutlass Calais
1980, 1982-1983
 Oldsmobile Cutlass Cruiser
1978-1980
 Oldsmobile Cutlass Salon
1978-1980, 1982-1983, 1985-1986
 Oldsmobile Cutlass Supreme
1975, 1981-1982
 Oldsmobile Delta 88
1977-1979
 Oldsmobile Omega
1977-1979
 Oldsmobile Starfire
1972-1975, 1980-1981, 1983-1986
 Pontiac Bonneville
1972-1974, 1977-1986
 Pontiac Firebird
1973-1974
 Pontiac Grand Am
1976-1977
 Pontiac Grand LeMans
1978-1986
 Pontiac Grand Prix
1972-1974
 Pontiac Grandville
1975-1977
 Pontiac LeMans
1978-1979
 Pontiac Phoenix
1971-1973
 Pontiac Ventura
