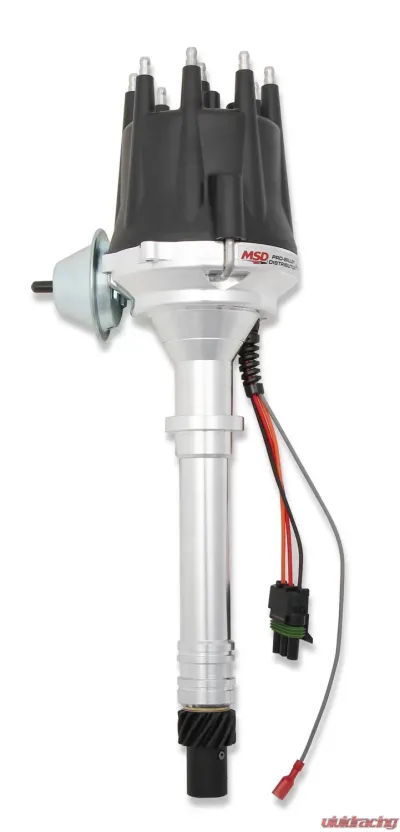

MSD Chevy V8 w/Internal Module Distributor and Black Cap - 83605
MSD Chevy V8 w/Internal Module Distributor and Black Cap - 83605 - Image 7 MSD Chevy V8 w/Internal Module Distributor and Black Cap - 83605 - Image 2 MSD Chevy V8 w/Internal Module Distributor and Black Cap - 83605 - Image 3 MSD Chevy V8 w/Internal Module Distributor and Black Cap - 83605 - Image 4 MSD Chevy V8 w/Internal Module Distributor and Black Cap - 83605 - Image 5 MSD Chevy V8 w/Internal Module Distributor and Black Cap - 83605 - Image 6 MSD Chevy V8 w/Internal Module Distributor and Black Cap - 83605 - Image 7
The Pro-Billet Ready-to-Run distributor is the perfect upgrade for outdated points distributors or bulky HEIs. Simply install the distributor in the engine, connect three wires, the coil and fire it up!

A maintenance-free magnetic pick-up accurately triggers the module. The increased output of the amplifier easily outperforms stock ignitions and will smooth out the engines idle, improve starting and provide a much higher rpm range.

The Ready-to-Run features MSD's adjustable mechanical advance that allows you to custom tailor an ignition curve to match your engine's needs. There is also a vacuum advance canister to help improve economy. For positive street performance, the Ready-to-Run is the best choice.

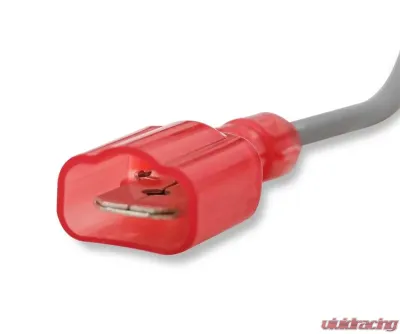

Includes a separate tach circuit that is ideal to trigger an aftermarket EFI such as an Atomic EFI system.

Features:

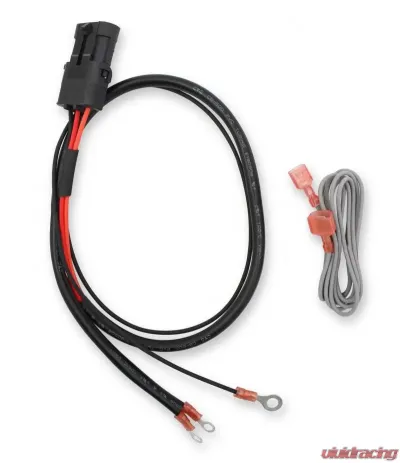

  • Simple and clean installation with only three wires to connect

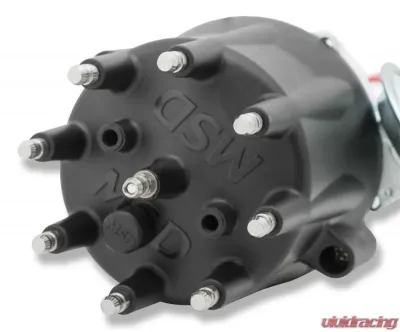

  • Supplied with a black HEI style distributor cap and rotor (accepts Cap-A-Dapts)
  • Does not require an MSD Ignition Control
  • Now includes build-in rev limiter!
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Special oil tract improves lubrication to the distributor and cam gear
  • Nylon pads ensure smooth operation of the advance weights
  •  Powerful built-in module produces a 7.5 amp single spark through high rpm
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings

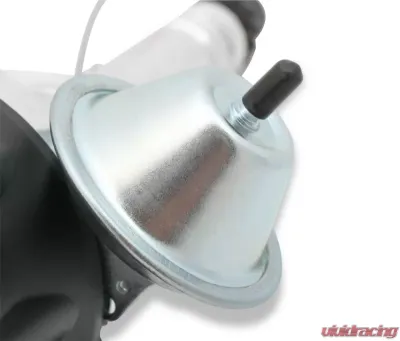

  • Vacuum advance canister for improved economy (can be locked out)
  • CNC machined billet aluminum housing and billet aluminum base
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range

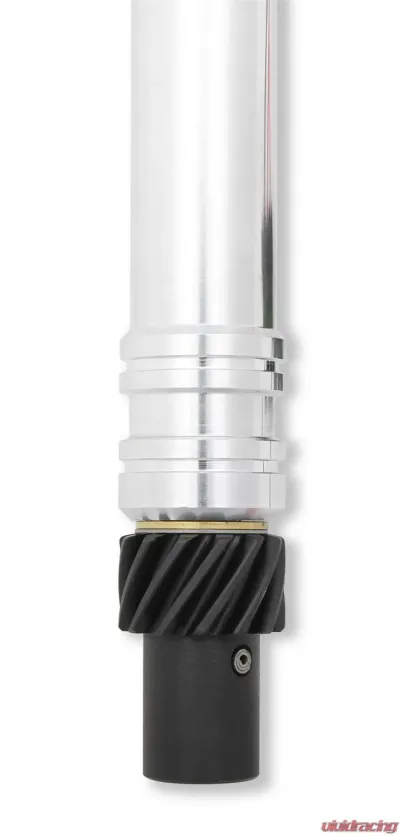

  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Mechanical advance assembly can be locked out for crank trigger systems
  • Advance weight pins are staked and tig welded to the plate
Specifications:
  • Brand: MSD
  • Color: Black
  • Distributor Type: Ready To Run
  • Product Type: Distributor
  • Sale Category: Ignition
  • Warranty: Limited 1 Year Warranty

Other Part Numbers:
MSD Ignition #MSD-83605

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
1955-1975
 Chevrolet Bel Air
1958-1972
 Chevrolet Biscayne
1969-1974, 1987-1994
 Chevrolet Blazer
1969-1972
 Chevrolet Brookwood
1975-1986
 Chevrolet C10
1961-1967
 Chevrolet C10 Panel
1968-1974
 Chevrolet C10 Pickup
1988-1995
 Chevrolet C1500
1975-1985
 Chevrolet C20
1967-1974
 Chevrolet C20 Pickup
1994, 2000
 Chevrolet C2500
1975-1976, 1983-1986
 Chevrolet C30
1961-1966
 Chevrolet C30 Panel
1967-1974
 Chevrolet C30 Pickup
1988-2000
 Chevrolet C3500
1967-1992
 Chevrolet Camaro
1966-1996
 Chevrolet Caprice
1964-1973
 Chevrolet Chevelle
1963-1968
 Chevrolet Chevy II
1955-1981
 Chevrolet Corvette
1964-1987
 Chevrolet El Camino
1996-2000
 Chevrolet Express 1500
1975-1995
 Chevrolet G10
1969-1974
 Chevrolet G10 Van
1975-1995
 Chevrolet G20
1969-1974
 Chevrolet G20 Van
1978-1996
 Chevrolet G30
1959-1985
 Chevrolet Impala
1994-1995
 Chevrolet K1500
1986
 Chevrolet K20
1961-1966
 Chevrolet K20 Pickup
1988-1993, 1995-1999
 Chevrolet K2500
1977-1982
 Chevrolet K30
1975-1986
 Chevrolet K5 Blazer
1969-1972
 Chevrolet Kingswood
1973-1976
 Chevrolet Laguna
1964-1967, 1973-1983
 Chevrolet Malibu
1970-1988
 Chevrolet Monte Carlo
1975-1979
 Chevrolet Monza
1969-1979
 Chevrolet Nova
1955-1957
 Chevrolet One-Fifty Series
1987
 Chevrolet R10
1987-1988
 Chevrolet R20
1989
 Chevrolet R2500
1987-1988
 Chevrolet R30
1989-1991
 Chevrolet R3500
1961-1966, 1987-1991
 Chevrolet Suburban
1995
 Chevrolet Tahoe
1969-1972
 Chevrolet Townsman
1955-1960
 Chevrolet Truck
1955-1957
 Chevrolet Two-Ten Series
1987
 Chevrolet V20
1987-1988
 Chevrolet V30
1989-1991
 Chevrolet V3500
1967-1974
 GMC C/K 15
1967-1974
 GMC C/K 25
1975-1978
 GMC C15
1979-1986, 1988-1995
 GMC C1500
1975-1978
 GMC C25
1979-1986, 1988-2000
 GMC C2500
1975-1978
 GMC C35
1979-1986, 1988-2000
 GMC C3500
1978-1987
 GMC Caballero
1979-1995
 GMC G1500
1979-1995
 GMC G2500
1982-1996
 GMC G3500
1970-1991
 GMC Jimmy
1973-1974
 GMC K35/K3500 Pickup
1987
 GMC R1500
1988-1991
 GMC R1500 Suburban
1987-1989
 GMC R2500
1990-1991
 GMC R2500 Suburban
1987-1991
 GMC R3500
1996-2000
 GMC Savana 1500
1971-1976
 GMC Sprint
1987
 GMC V1500
1988-1991
 GMC V1500 Suburban
1987
 GMC V2500
1988-1991
 GMC V2500 Suburban
1987-1991
 GMC V3500
1992-1995
 GMC Yukon

MSD Ignition Banner

Who is MSD Ignition?

MSD Ignition started back in 1970. Based in El Paso Texas, the company is known for creating quality ignition systems for various automobiles. Today, they are considered the leading company when it comes to the ignition system and has become a brand recognized all over the world.

Changing the Way Vehicles are Made

MSD has helped shape the automotive industry by being the first company in the world to conduct an experiment regarding Multiple Spark Discharge for a vehicle’s ignition system. It has been suggested by Engineers who were working on the White Sands Missile Range in Southern Mexico. They noticed that their quest for power is limited by the amount of spark the ignition system can only generate. Hence, the idea of Multi Spark Discharge.

Racing Application

Soon after the product introduction, racers started applying it to their race cars. Due to its success, other top teams started using MSD which helped paved the way for the brand’s popularity. The majority of the race engines today use MSD and have proven to produce race champions.

The company operates in a 100,000 square feet facility in Texas. They house some of the most state-of-the-art equipment that helps them create products that are superior in quality.

Purchase MSD Ignition Products at Vivid Racing

If you are in search of the best ignition system available in the market, then MSD is the brand for you. Tested by many enthusiasts and racers for years, MSD has proven to provide optimum performance in every vehicle.




MSD warrants this product to be free from defects in material and workmanship under its intended normal use*, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any products purchased through auction websites. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods.

This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representation whether expressed or implied, including any implied warranty of merchantability or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages.

Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. It is the sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability for custom applications.
