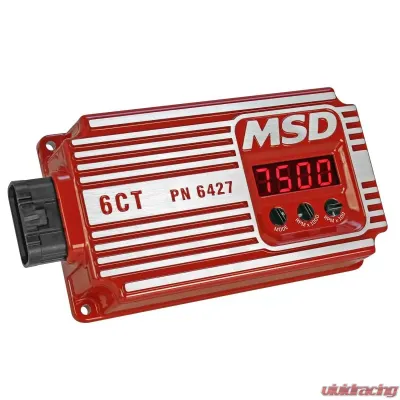

MSD 6CT Ignition Control - 6427
Superior design makes the 6CT Circle Track Ignition Control unit the most advanced and durable ignition to ever hit a circle track. Packed with legendary MSD Ignition power, the 6CT offers a slew of features. A large digital LED display makes it easier than ever to see the rev limiter setting when dialing it in using the laser etched rotary dials on the face of the unit.

Rev limiting is controlled via microprocessor making it so smooth the chassis is virtually undisturbed when charging into turns. The rotary dials are also used to set cylinder select for 4, 6, and 8 cylinder engines, and to adjust the built-in start retard providing options of 0?, 10? or 20? of timing retard for quick starts. As an added bonus the LED display can be used as a live tach or will display your racecars battery voltage. The unit records the highest RPM your engine turned during the race which can be easily recalled on the LED display as well.

The 6CT offers all this and more in an epoxy filled, cast aluminum housing to prevent damage to the circuit board. Its rugged build make is ideal to handle the rigors of dirt track racing while its advanced digital control make it reliable for countless laps around the track. It's finished off with a single sealed connector to keep wiring dry and tidy.

Features:
  • MSD's smoothest rev limiter yet! Won't upset the chassis and easy on parts
  • Large, easy to read LED display
  • Simple setup of features such as the rev limiter with three rotary dials on the face of the unit
  • Built-in Start Retard adjustable in 0?, 10? or 20? increments for quick, easy starts and extend starter life
  • LED displays rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
  • Full delivery of spark energy down to 6 volts battery supply
  • Highly efficient, low current draw for extended battery life
  • Rugged built, epoxy filled housing protects the circuit board to stand up to demanding race conditions
  • Single plug-in connector for clean wiring
  • Tamper proof screws to prevent modification of unit
  • Records highest RPM the engine turned for last 20 minutes of run time
  • Works on 4, 6 and 8 cylinder engines
  • Reverse polarity and overheat protection provide ultimate reliability
Specifications:
  • Brand: MSD
  • Color: Red
  • Current Draw: 0.8 Amps per 1,000 RPM
  • Features: Start Retard
  • Primary Voltage: 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
  • Product Type: Ignition
  • RPM Range: 12,000 RPM
  • Sale Category: Ignition
  • Secondary Voltage: 45,000 Volts
  • Spark Energy: 135mJ w/ Blaster Coil / 150mJ w/ HVC Coil PN 8250
  • Spark Series Duration: 20°Crankshaft Rotation
  • Voltage Required: 6 to 18 Volts
  • Warranty: Limited 1 Year Warranty
  • Weight and Size: 2.5 lbs., 7.89"L x 4.00"W x 1.87"H



Other Part Numbers:
MSD Ignition #MSD-6427

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

MSD Ignition Banner

Who is MSD Ignition?

MSD Ignition started back in 1970. Based in El Paso Texas, the company is known for creating quality ignition systems for various automobiles. Today, they are considered the leading company when it comes to the ignition system and has become a brand recognized all over the world.

Changing the Way Vehicles are Made

MSD has helped shape the automotive industry by being the first company in the world to conduct an experiment regarding Multiple Spark Discharge for a vehicle’s ignition system. It has been suggested by Engineers who were working on the White Sands Missile Range in Southern Mexico. They noticed that their quest for power is limited by the amount of spark the ignition system can only generate. Hence, the idea of Multi Spark Discharge.

Racing Application

Soon after the product introduction, racers started applying it to their race cars. Due to its success, other top teams started using MSD which helped paved the way for the brand’s popularity. The majority of the race engines today use MSD and have proven to produce race champions.

The company operates in a 100,000 square feet facility in Texas. They house some of the most state-of-the-art equipment that helps them create products that are superior in quality.

Purchase MSD Ignition Products at Vivid Racing

If you are in search of the best ignition system available in the market, then MSD is the brand for you. Tested by many enthusiasts and racers for years, MSD has proven to provide optimum performance in every vehicle.




MSD warrants this product to be free from defects in material and workmanship under its intended normal use*, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any products purchased through auction websites. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods.

This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representation whether expressed or implied, including any implied warranty of merchantability or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages.

Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. It is the sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability for custom applications.
