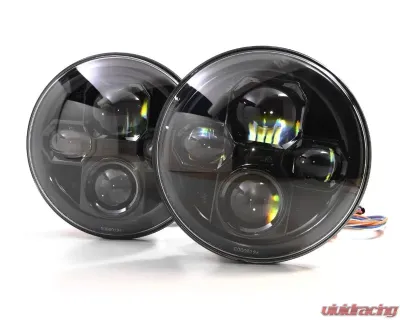

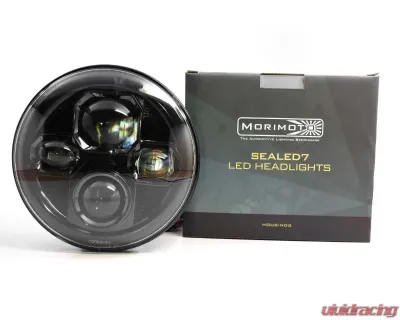

Introducing the Morimoto Sealed7 2.0

Just when you think you've seen every option in the 7-inch Round LED market, the Morimoto Sealed7 2.0 comes along and grabs your attention. While it might seem like there are only so many ways to package low and high beam LED optics into a 7-inch round design, this product stands out with a functional and attractive setup that we truly admire. We've seen a lot of options, and we genuinely believe that the Sealed7 2.0 is the best new addition to the 7-inch Round market for several reasons that we'll share below.

Unique Design

The Morimoto Sealed7 2.0 is a fresh and original creation, built from the ground up. Until now, the choices were pretty limited. You had the high-end J.W. Speaker at the top, some less impressive knock-offs rebranded by various companies, and then the Truck-Lite reflector-based 7" lights, which were also rebranded. But the Sealed7 2.0 is truly in a league of its own.

Impressive Output

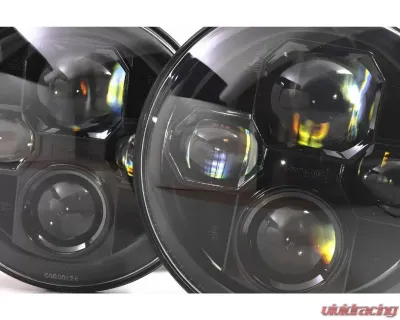

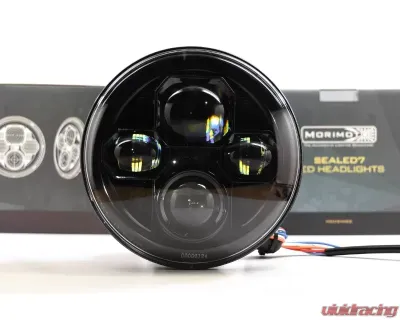

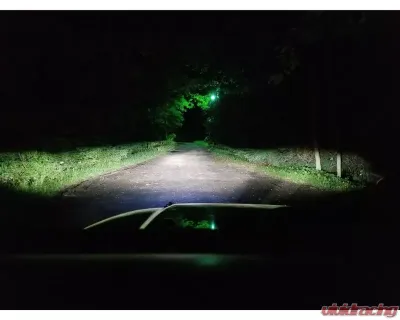

When it comes to performance, the Sealed7 2.0 does not disappoint. In low beam mode, it features Nichia NCSW170C Series LEDs paired with Morimoto's advanced Kuria Optic projector lens array, delivering around 3000 lumens on the road with a properly LHD-stepped beam pattern. And in high beam mode, the "dual-burn" setup kicks the output up to nearly 4000 lumens’perfect for lighting up the night!

Smart DRL and Turn Signal Features

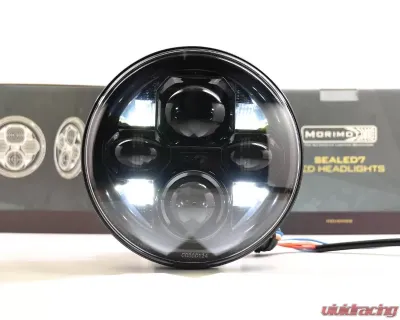

The quad-optic setup offers three functions: a high-intensity white daytime running light, a low-intensity white DRL (when low beams are on), and a high-intensity amber turn signal. The turn signal automatically interrupts the white DRL, flashes, and then returns to white once the signal stops. Plus, the 3-wire DRL/signal input makes installation a breeze.

Quality You Can Trust

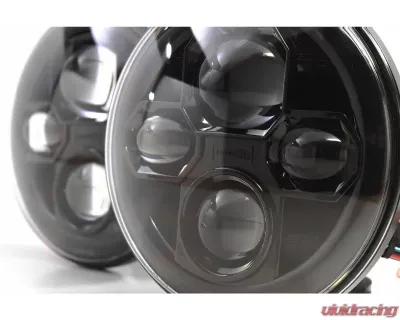

No corners were cut in the design of the Sealed7. The heart of these headlights features top-notch components from Nichia-Japan and Philips-Lumileds, ensuring you're getting quality emitters. The UV-coated polycarbonate lens is shatterproof and built to withstand years of wear and tear without fading. You'll appreciate the precision of the heavy-duty die-cast housings that double as heat sinks’no deeper than most traditional 7" PAR56 headlights. Inside, a special PWM LED driver keeps the LEDs running at their peak intensity, even during extended use.

Standard Fitment

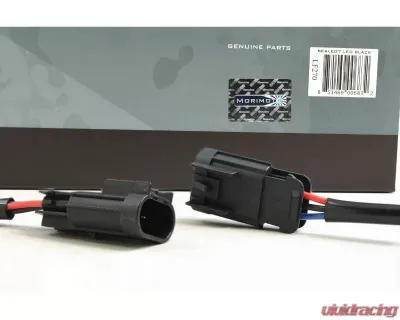

Designed to replace all 7-inch Round / PAR56 headlights, the Sealed7 offers full low and high beam functionality. They come standard with H13/9008 male inputs, perfect for newer Jeep Wranglers, but you can easily use an H4 adapter for older models.

Features:

• Material: UV-Coated Polycarbonate (Lens), Powdercoated Aluminum (Housing)
• Traffic Pattern: LHD / DOT
• Input Voltage: 9-36V DC
• Input Connector: Delphi H13 + T-Taps for DRL
• Power: 27w Low / 12w High
• Intensity: 2,860lm Low / 1,020lm High
• Light Source: 12x Nichia NCSW170C, 4x Philips Luxeon 3535L
• Color Rating: 5000K (Pure White)
• Rated Lifespan: 10,000 Hours

Includes:

• Headlights: 2x Morimoto Sealed7 2.0 Bi-LED
• Wiring: JK H13 Anti-Flickers
• Warranty: 5 Years

Installation Instructions:

• For instructions, CLICK HERE

Fitment:

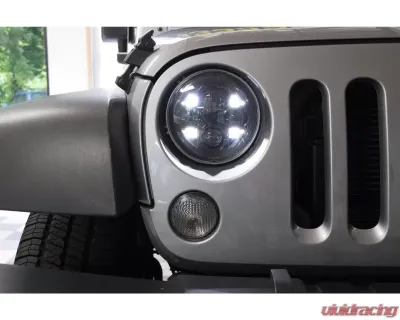

• Jeep Wrangler JK 07-17 without OEM LED Headlights
