Introducing the Morimoto Sealed7 2.0

Just when you think you've seen every option in the 7-inch Round LED market, the Morimoto Sealed7 2.0 comes along and grabs your attention. While it might seem like there are only a few ways to design a set of low and high beam LED optics in this format, Morimoto has truly outdone themselves with a setup that's both functional and visually appealing. We've seen our fair share of products, and we genuinely believe the Sealed7 2.0 stands out as the best new entry for several reasons, which we’ll share below.

All-New Design

The Morimoto Sealed7 2.0 is completely original, crafted from the ground up. Until now, the market has mainly featured three types of products: the premium J.W. Speaker at the top, some less impressive knock-offs, and the Truck-Lite reflector-based 7" lights. The Sealed7 2.0 breaks the mold, offering something truly unique.

Impressive Output

In low beam mode, this headlight utilizes Nichia NCSW170C Series LEDs paired with Morimoto's advanced Kuria Optic projector lens array, delivering around 3000 lumens in a properly stepped beam pattern. When you switch to high beam mode, the output ramps up to an impressive 4000 lumens, perfect for lighting up the night.

Daytime Running Lights & Turn Signals

The quad-optic design features three functions:

• High-intensity white daytime running light
• Low-intensity white daytime running light (when low beams are on)

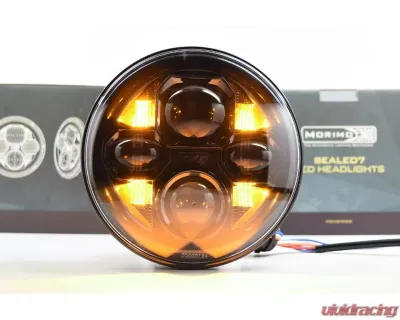

• High-intensity amber turn signal

Top-Notch Quality

No corners were cut in the creation of the Sealed7. It starts with high-quality components from Nichia in Japan and Philips-Lumileds. The UV-coated polycarbonate lens is shatterproof and built to withstand years of wear and tear without fading. You'll appreciate the precision of the heavy-duty die-cast housings, which also function as heat sinks and are no thicker than most traditional 7" PAR56 headlights. A special PWM LED driver keeps the LEDs shining at their best, even during extended use.

Standard Fit

Designed to replace all 7-inch Round / PAR56 headlights, the Sealed7 2.0 offers full low and high beam functionality. They come with H13/9008 male inputs, perfect for newer Jeep Wranglers, but you can easily use an H4 adapter for older models.

Features

• Material: UV-Coated Polycarbonate (Lens), Powdercoated Aluminum (Housing)
• Traffic Pattern: LHD / DOT
• Input Voltage: 9-36V DC
• Input Connector: H4 Male + T-Taps for DRL
• Power: 20w Low, 35w High
• Intensity: 2,400lm Low, 4,300lm High
• Light Source: 12x Nichia NCSW170C, 4x Philips Luxeon 3535L
• Color Rating: 5000K (Pure White)
• Lifespan: Approx. 10,000 hours

What’s Included

• Headlight: 1x Morimoto Sealed7 2.0 Bi-LED (Black)
• Wire Taps: 3x 14-16ga. T-Taps (for DRL/Turn Signal)
• Wiring: Delphi H13 Male Connector + DRL signal wires
• Warranty: 5 Years

Installation Instructions

• For Instructions CLICK HERE
